IconMaster Installation and Configuration Manual 33
Chapter 2: Installation

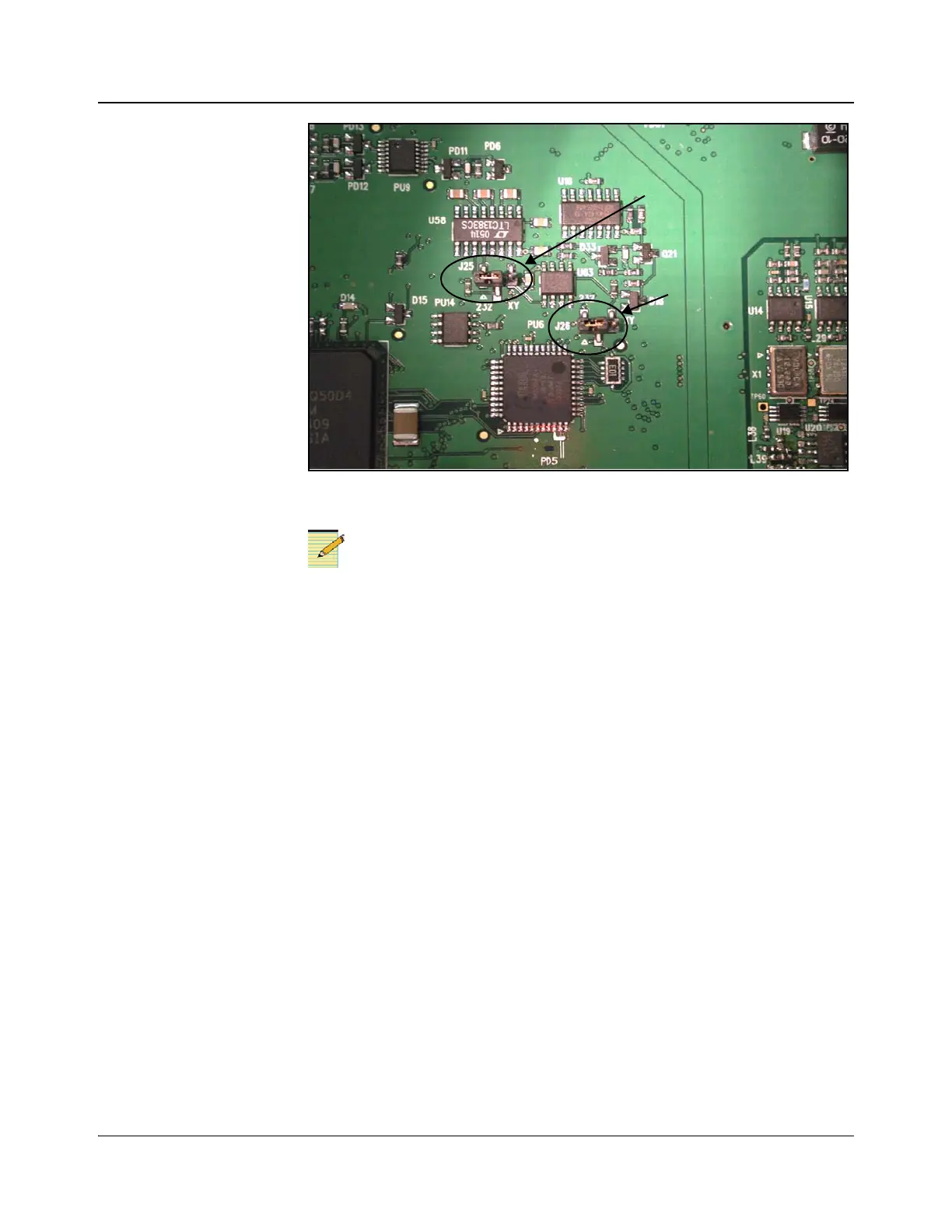

Figure 2-22. Jumpers for Serial Port A Format
Jumpers J20 and J22 on the MKE-3901 must be set to Balanced
when the video breakout module is used.
Jumper J17 on the MKE-3901 must be set to the same standard
as jumper pack A2. For more information see Figure 2-34 on
page 49 and Table 2-8 on page 51.
Jumper J18 on the MKE-3901 must be set to the same standard
as jumper pack A1. For more information see Figure 2-34 on
page 49 and Table 2-8 on page 51.
