Chapter 2: Installation

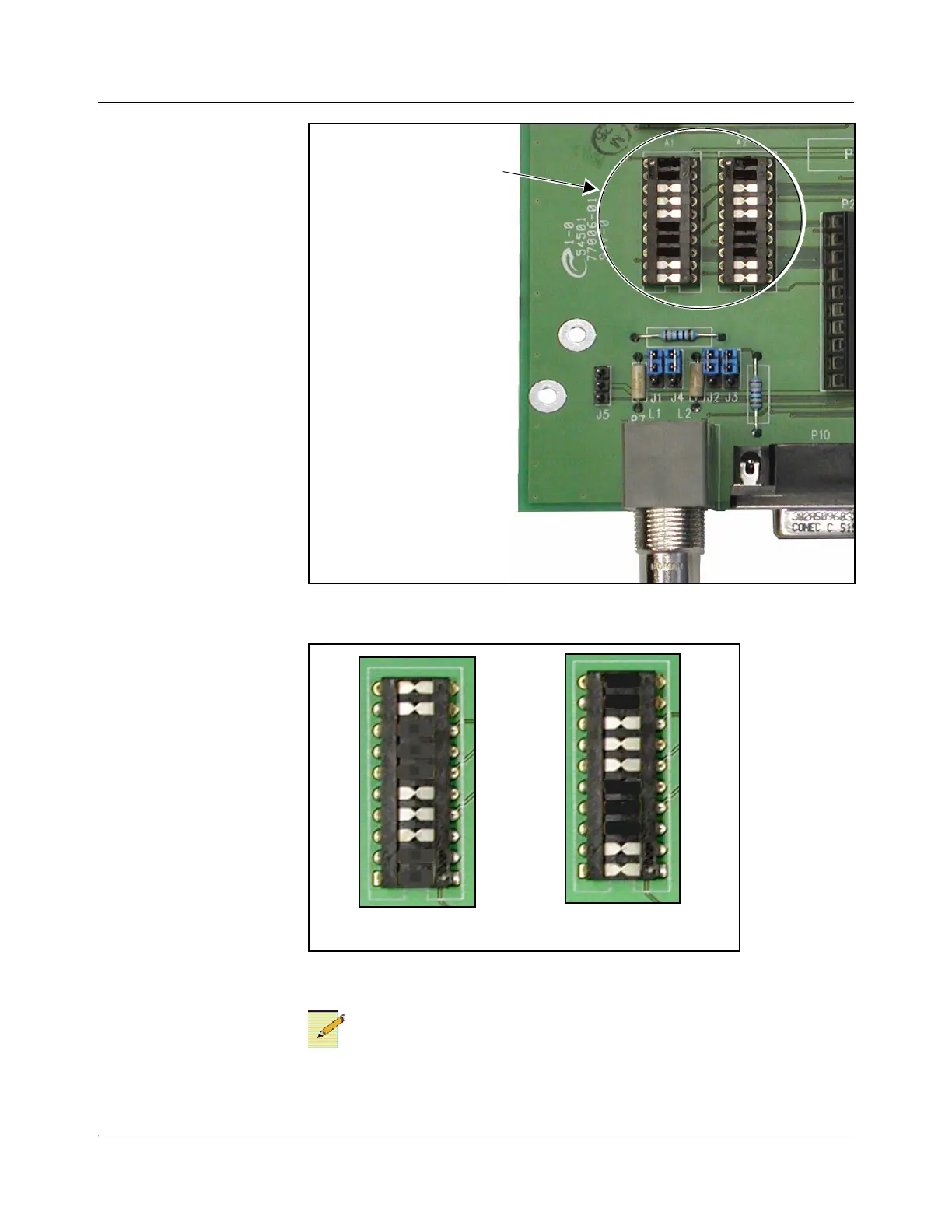

Figure 2-34. Jumper Packs on ICONM-BO-V (in RS-422 Mode)
Figure 2-35. RS-232 and RS-422 Jumper Pack Configurations
Note
Each serial connector (RS-232 and RS-422) has the following
settings:
• 38400 baud rate
Jumper packs A1 and A2
Jumper J18 on MKE-3901
must be set to same standard
as jumper pack A1
Jumper J17 on MKE-3901
must be set to same standard
as jumper pack A2
RS-232 Configuration
(Serial Port A)
RS-422 Configuration
