156 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
2. From the menu bar, click Send CFG to frame. An information message
will prompt you to confirm the upload of the configuration to the
IconMaster frame.
3. Click Yes. The database will be uploaded to the IconMaster frame.
Most new settings will take effect on the IconMaster immediately. Changes
that require a reboot include:
• Standard change (also requires new firmware)
• Upgrade license from IconMaster LITE to full IconMaster
• A change of serial port settings
• Changing an SD system from 8-channel audio operation to 16-channel
audio operation
Input/Output Group Settings
The Input/Output group on the left side of the IconMaster configuration
software screen includes the following dialog boxes: Primary Inputs, UMD,
Audio Configuration, Audio Over Matrix, and Aux Bus.

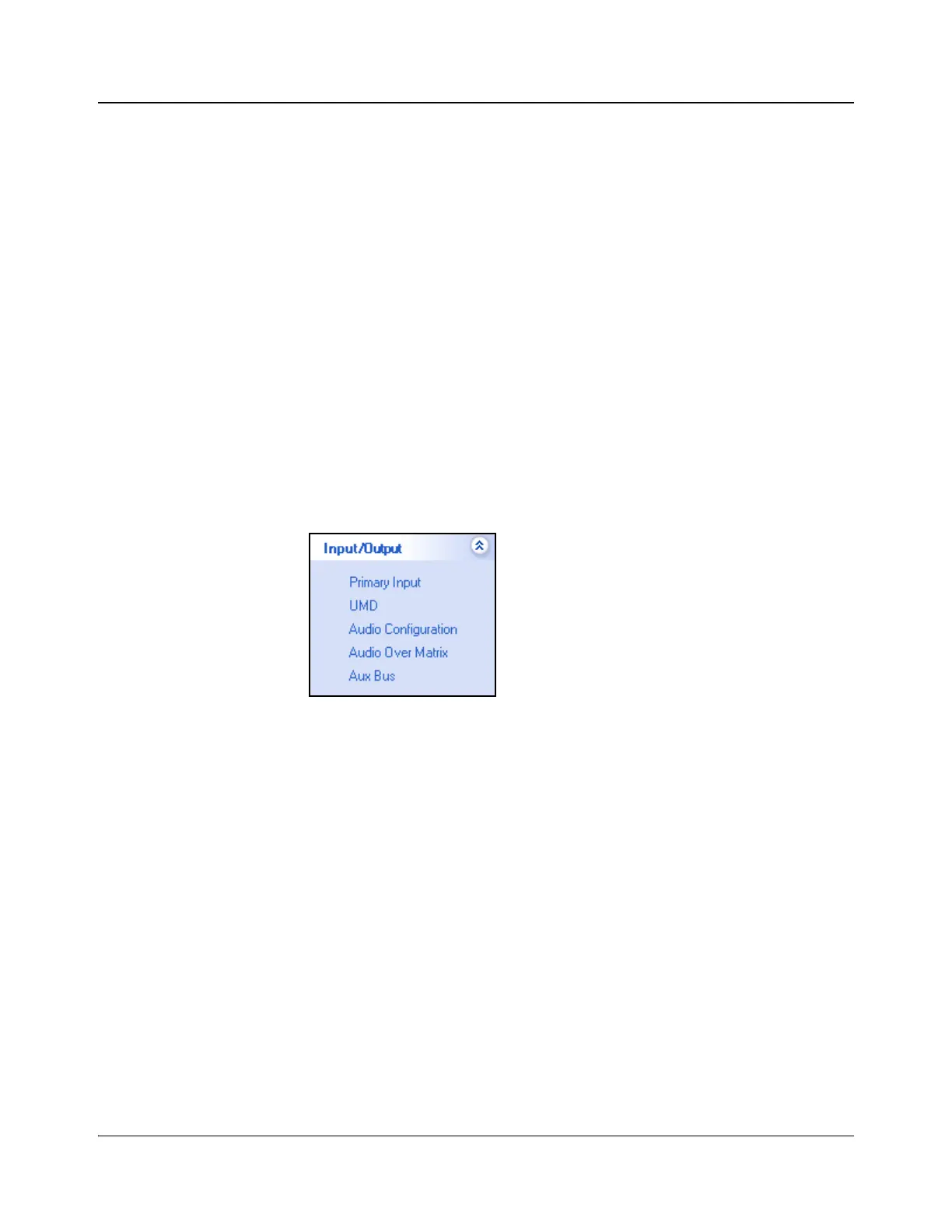

Figure 8-4. Input/Output Menu Group
This menu group controls system input and output configuration functions, as
shown in Figure 8-4.
