Chapter 8: Configuring IconMaster
Automation Configuration Settings

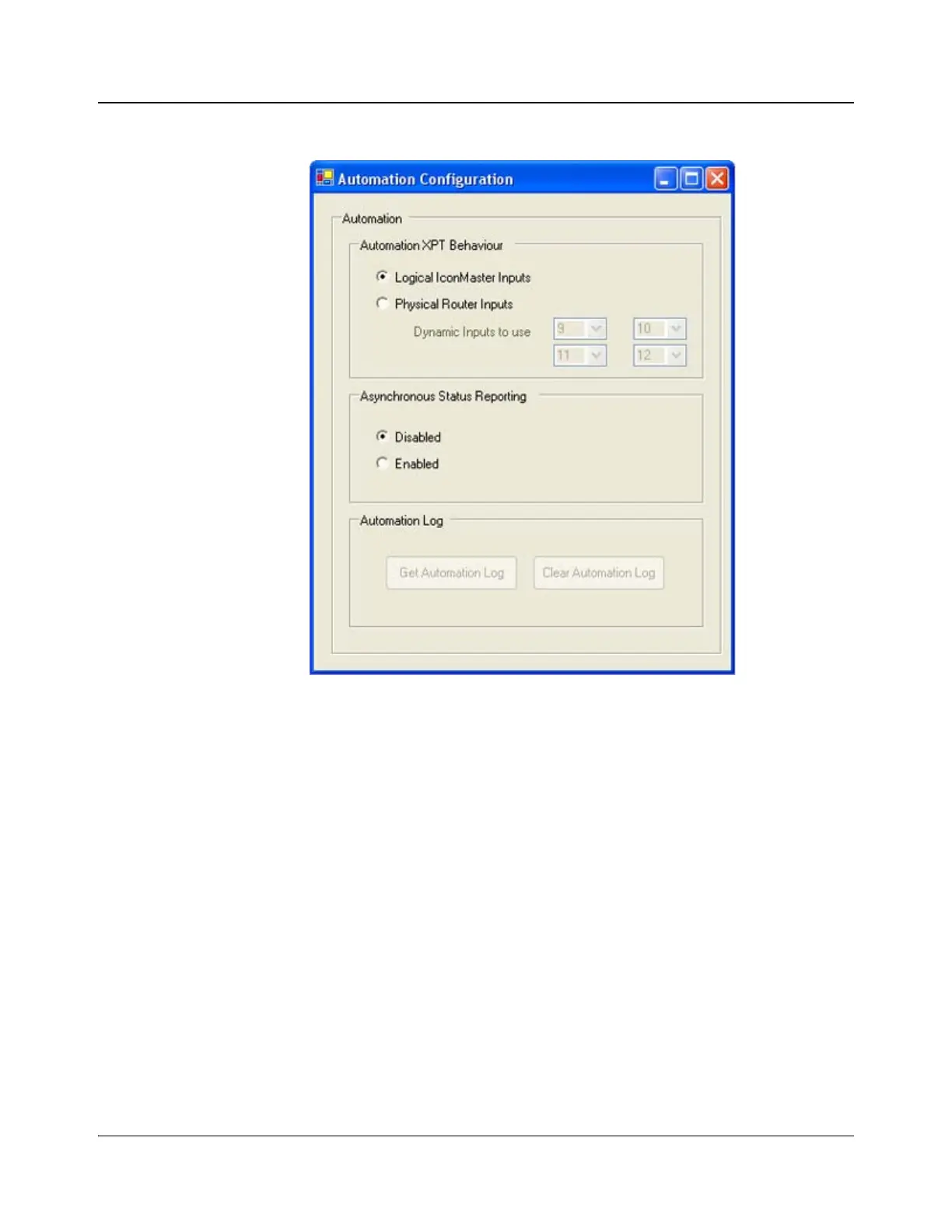

Figure 8-33. Automation Configuration Dialog Box
The Automation Configuration dialog box allows you to choose between
logical IconMaster inputs or physical router inputs.
When you select Logical IconMaster Inputs, the Automation system will only
be able to switch PST and PGM bus inputs that have been assigned (through the
Primary Input dialog box) to inputs 1 to 12 or 1 to 22 (depending on your
configuration).
When you select Physical Router Inputs, you can switch unassigned sources
directly from a router to any four IconMaster PST and PGM bus inputs ranging
from 1 to 12 (or 1 to 22) that you will select from the Dynamic Inputs to Use
drop down list boxes. When you select an input, IconMaster will check to see if
that particular input has been assigned already to any of the PGM or PST bus
buttons. If not, it will assign your source the to first, or top left, drop-down input
box, which corresponds to inputs 1-12 (or 1-22) on the PGM or PST bus.
Currently, Asynchronous Status Reporting and Automation Log are not
supported.
