IconMaster Installation and Configuration Manual 199
Chapter 8: Configuring IconMaster

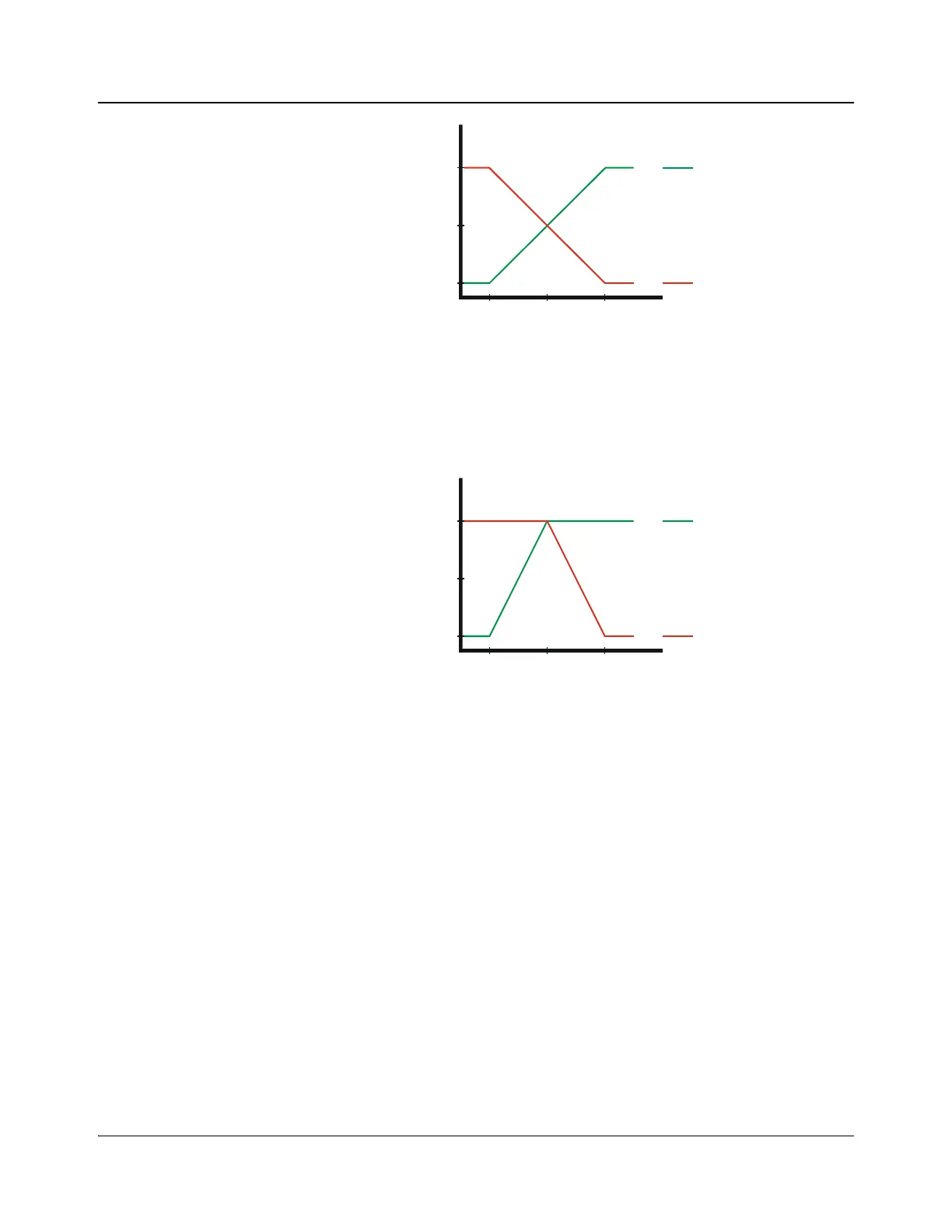

Figure 8-31. Audio Over Ratio in 50% Mix Mode
• If 100% Mix is selected as a mode of operation, at 50% ratio the mix
will be 100% of Audio Over and 100% of PGM, and will decrease
respectively as you move “left” or “right” of the 50% mark.
Figure 8-32. Audio Over Ratio in 100% Mix Mode
50%0% 100%
Audio Over Ratio
50%
0%
100%
Audio Level
Audio Over
PGM
50%0% 100%
Audio Over Ratio
50%
0%
100%
Audio Level
Audio Over
PGM
