Chapter 8: Configuring IconMaster
System Configuration Settings

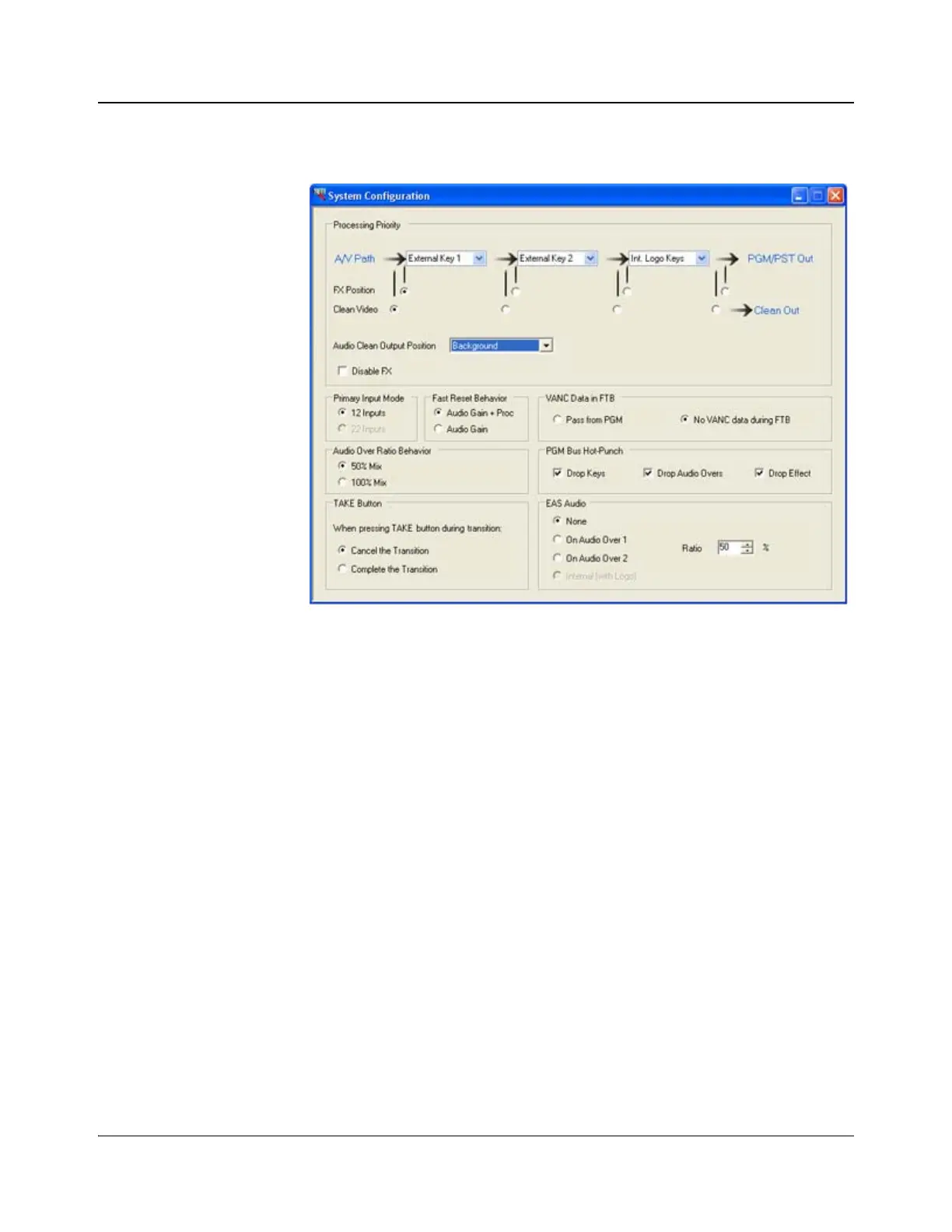

Figure 8-30. System Configuration Dialog Box
The System Configuration dialog box includes settings for various IconMaster
system parameters, each of which is detailed below.
• Processing Priority
The Processing Priority settings affect how the IconMaster routes internal
video and audio signals. Keyer priority settings can be changed using the
drop-down boxes in the A/V Path group. The FX priority can also be
assigned.
The IconMaster has a separate Clean output which can be assigned as well.
The video and audio pick positions for the Clean output can be set in the
Processing Priority settings.
• If the Disable FX checkbox is checked, the IconMaster FX squeezeback
effects engine will be disabled.
• Primary Input Mode
This setting affects whether 12 or 22 primary inputs are available to
IconMaster.
• If 12 Inputs is selected, the 12 primary source input buttons will select
between all available input sources.
The 22 Inputs option is
grayed out because “External
Router” is set to No on the
Router Configuration page.
See page 194.
