IconMaster Installation and Configuration Manual 159
Chapter 8: Configuring IconMaster
UMD Configuration Settings

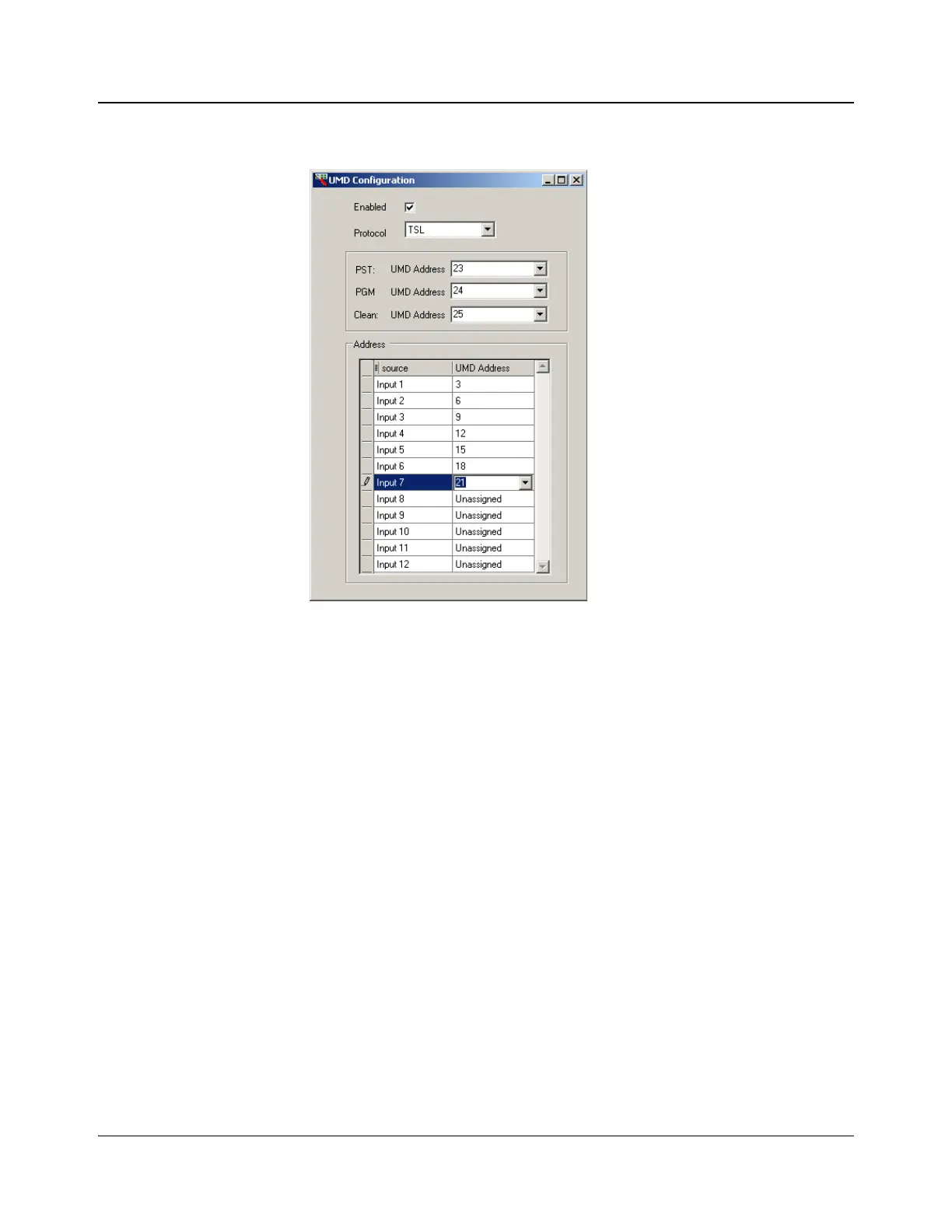

Figure 8-6. UMD Configuration Settings Dialog Box
Using the UMD Configuration Settings dialog box in ICU, you can activate
under monitor text labels and tally lights using a serial tally protocol. As a
result, UMD text labels and serial tally indicators will be enabled on a
multiviewer output device such as SuiteView.
Normally this will indicate, for example, the PIP on a video wall that is
currently on the PGM monitor, PST Monitor, and/or Clean monitor.
To set up IconMaster to send UMD data to a monitoring device:
1. Check Enabled to enable under monitor display on the IconMaster
(keeping in mind that the change will not take effect until you upload the
Configuration file to the frame).
2. Select the communication protocol your UMD uses.
IconMaster 3.0 supports TSL protocol.
3. For each of PST, PGM, and Clean, type a UMD address into the text field.
On your monitoring device, the object that is set to that same UMD address
will display the text label of the monitor -- Clean, PST, or PGM.
4. In the Address table, for each source, indicate an UMD address for that
source.
On your monitoring device, the object that is set to that same UMD address
will display PGM and PST tallies.
