Harris IconMaster - ICONM-BO-VAC Coaxial Audio Module

56 IconMaster Installation and Configuration Manual
Chapter 2: Installation
ICONM-BO-VAC Coaxial Audio Module
The ICONM-BO-VAC is a breakout module for the MKA-3901-B audio
module. It includes an ICONM-BO-V module with an audio portion. The audio
portion of the module converts the 62-pin AES input and AES output
connectors of the MKA-3901-B to coaxial connections. Each connector is
labelled in Figure 2-42.
Figure 2-43 on page 57 shows the four BNC connectors on the audio breakout
module for connecting emergency inputs. From left to right, the connectors are
for AES4 to AES 1.

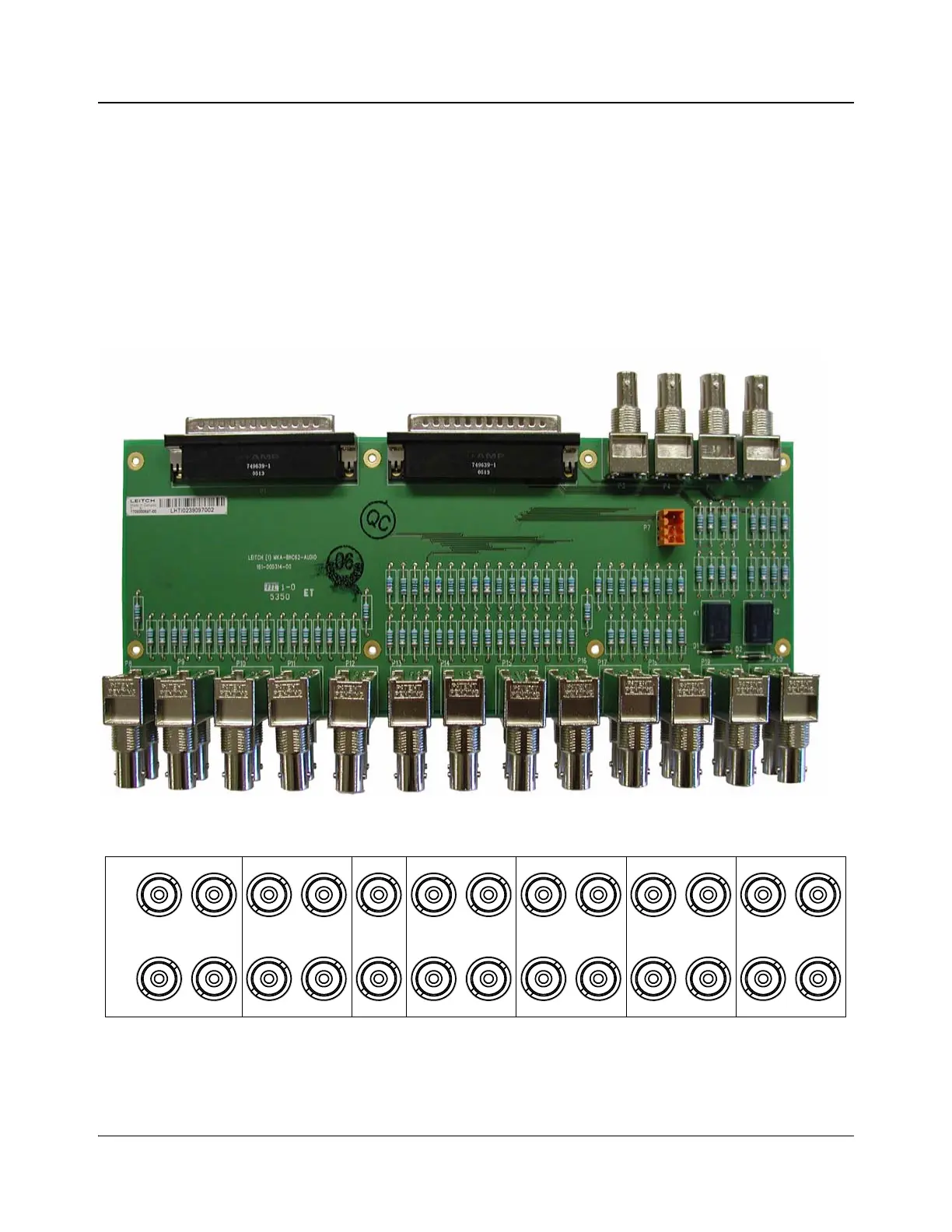

Figure 2-41. ICONM-BO-VAC Breakout Module
Figure 2-42. Coaxial Connector Labels
AES
AES
Bus A
In
Bus B
In
1
2
3
4
13 13131313
24 24 24 24 24
1
2
Spare
Clean
Out
Mon Out PST Out
PGM
Out
