Chapter 3: Module Configuration
LEDs and Module Indicators
MKE-3901 LEDs and Module Indicators
Each MKE-3901 module has 8 card-edge LEDs and 4 module indicators. The
module indicators include Major Alarm and Minor Alarm. These alarms are
not currently in use in the IconMaster system.
Figure 3-1 illustrates the locations of the LEDs and standard module indicators
on the MKE-3901 module. The meanings of the LEDs are described in
Table 3-1. The meanings of the module indicators are described in Table 3-2.

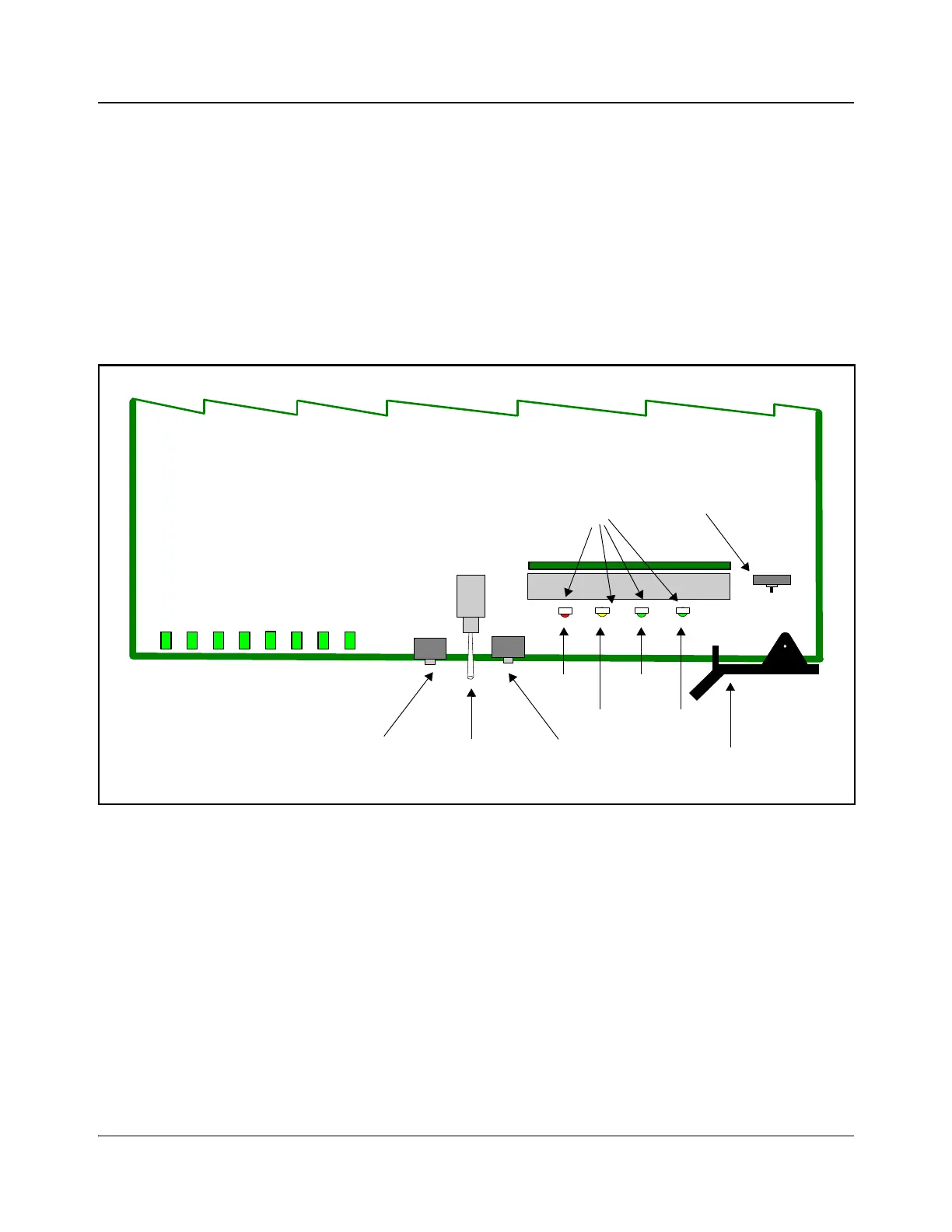

Figure 3-1. MKE-3901Card-Edge LEDs and Module Indicators
Module
Status
Minor
Alarm
Major
Alarm
Power
SW1
Nav +
Nav -
Enter
Esc
Lock AO 1 AO 2 BCG Mix Key 1 Key 2 Key/MGI FTB/FTS
LEDs
Escape
button
Enter
button
Nav+/Nav- switch
(up/down)
Major
alarm
Minor
alarm
Power
Module
status
Card extractor
Standard module indicators Local/Remote switch
