32 IconMaster Installation and Configuration Manual
Chapter 2: Installation

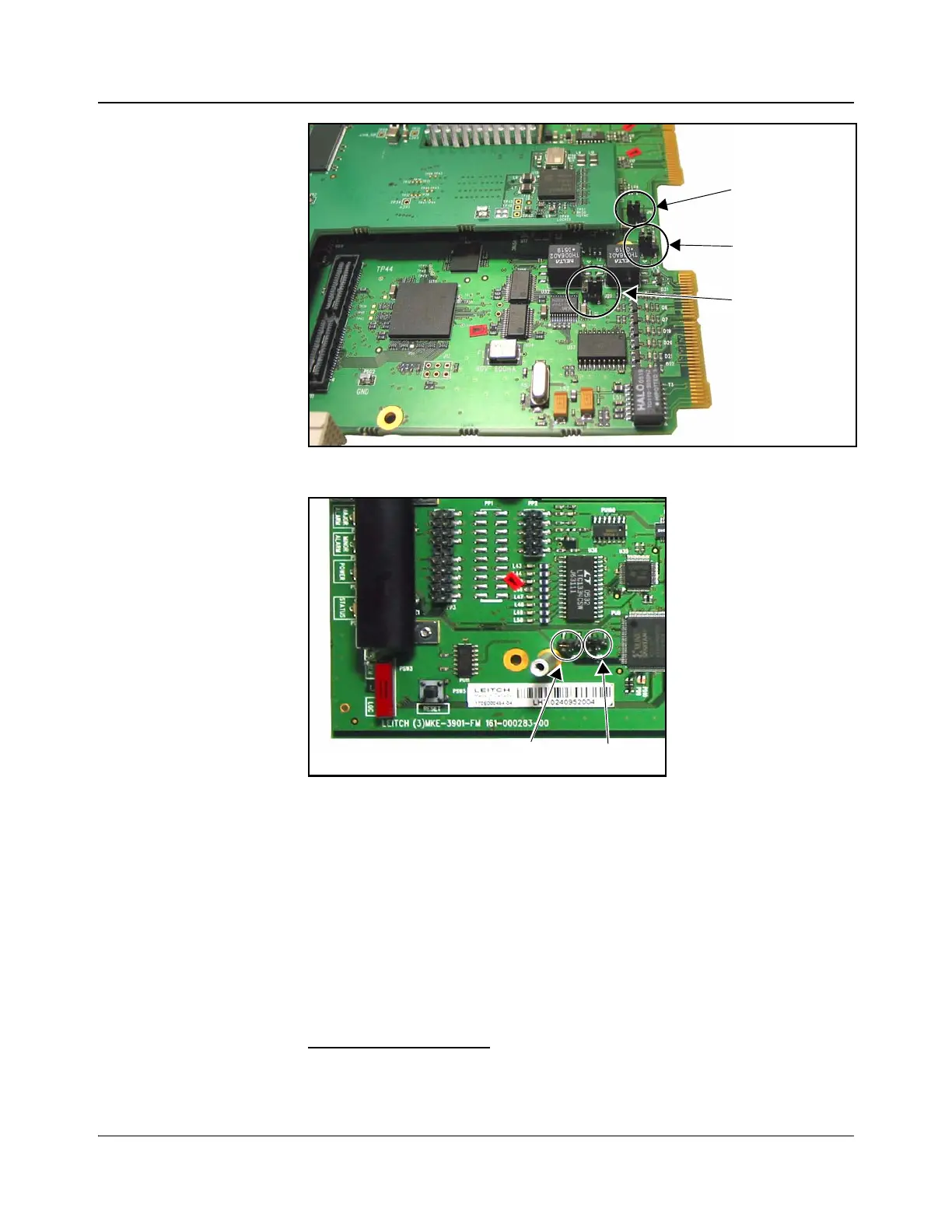

Figure 2-20. Jumpers for Reference Input and AES Audio-Over
Figure 2-21. Jumpers for Serial Port Standard
1
1
Jumper J17 on MKE-3901 must be set to same standard as jumper pack A2. Jumper J18 on
MKE-3901 must be set to same standard as jumper pack A1. For more information see
Figure 2-34 on page 49 and Table 2-8 on page 51.
Jumper J16
Jumper J22
Jumper J20
