IconMaster Installation and Configuration Manual 235
Chapter 9: Enabling a RouterMapper Database for Use with an IconMaster System
3. For sources that will be dynamic, click the check box (es) next to the
appropriate source(s).
4. Select the desired router source(s), and then select name of the router source
from the Name drop-down list box.

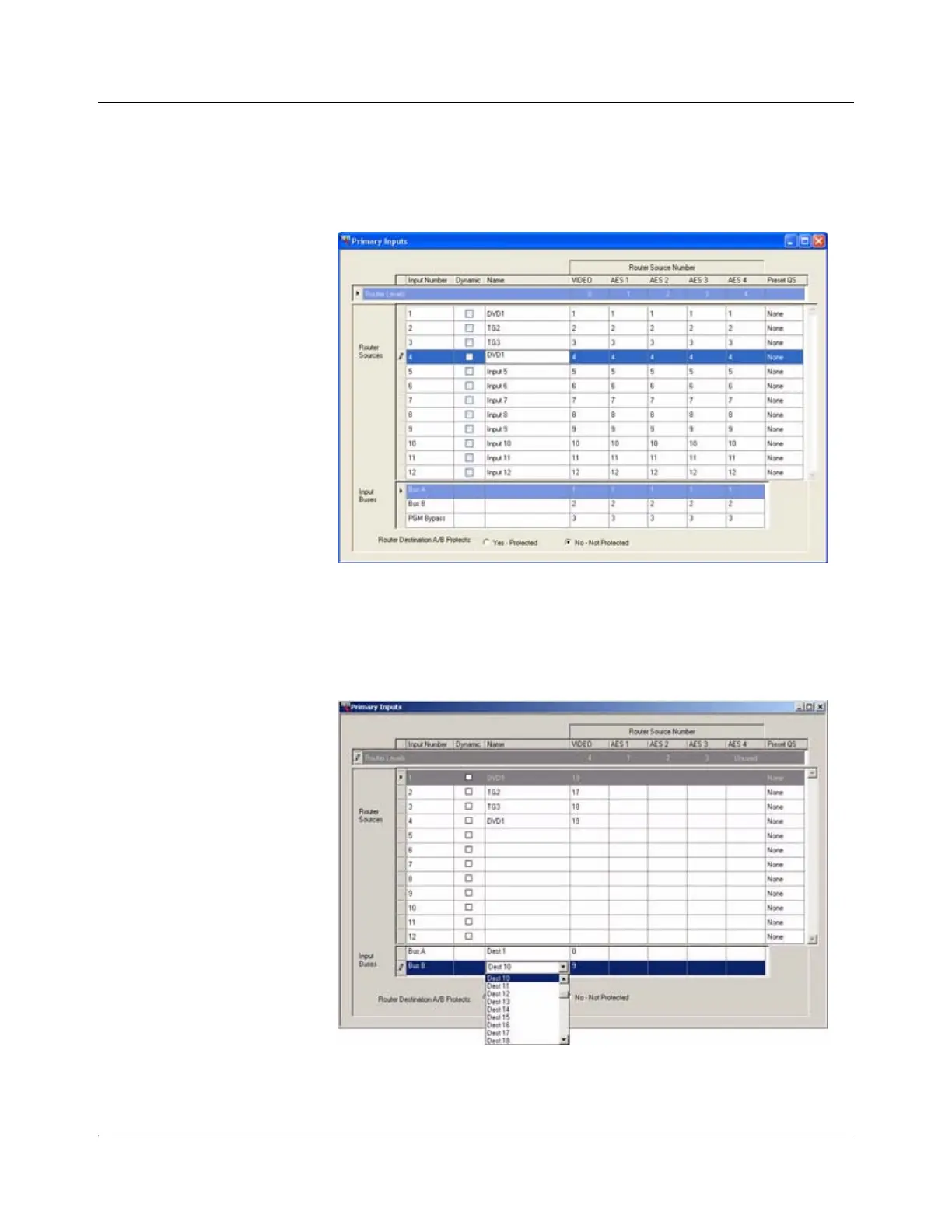

Figure 9-23. Changing Router Source Names
5. For the Input Buses: Bus A and B, select the Name from the drop-down list
box of the router destinations which are connected to the IconMaster’s A
and B inputs.
Figure 9-24. Selecting Bus A and Bus B Inputs
6. Select File → Save As, and then enter a name for the configuration.
