Chapter 8: Configuring IconMaster
2. (Optional) Click in Source Name field and type a new name to rename the
profile.
The Audio Profile name will update accordingly.
3. Select the primary audio input type. Options are:
• Embedded audio is recovered from the specific SDI input.
In an SD IconMaster system, as in Figure 8-7, under Audio Channel,
you can determine whether to use 8 or 16 audio channels. Then, for
each primary audio input, each of the 8 or 16 audio input channels can
be assigned to any or all of the 8 or 16 audio output channels.
If the audio configuration for an SD Iconmaster is changed
from 8 channel to 16 channels, or from 16 channels to 8
channels, you must reboot IconMaster to ensure that all
audio channels are properly configured. After uploading the
configuration file to the IconMaster, you can reboot the MKE
using ICU's Reboot MKE button.
In an HD IconMaster system with embedded audio, as in Figure 8-8, for
each primary audio input, each of the 16 audio input channels can be
assigned to any or all of the 16 audio outputs.

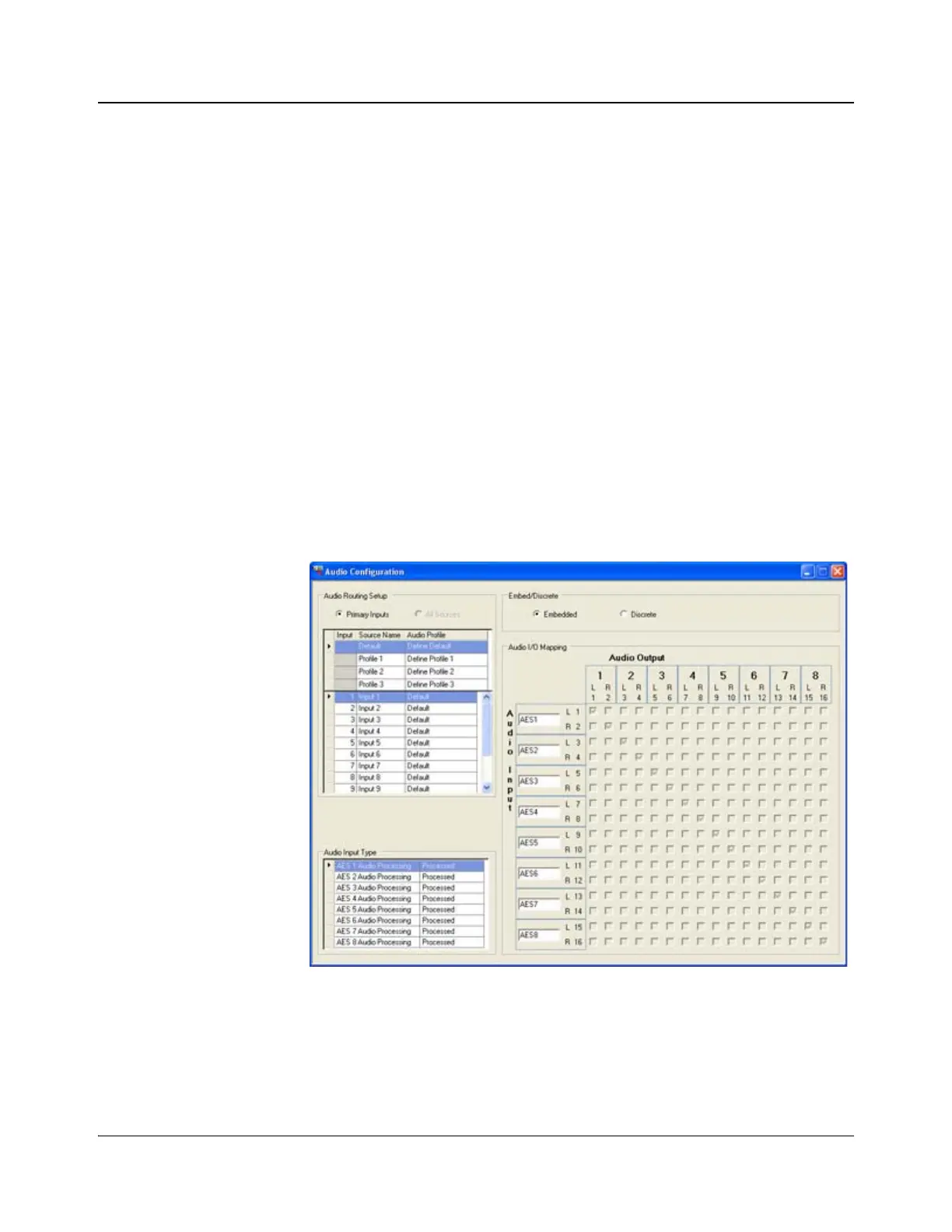

Figure 8-8. Audio Dialog Box — HD with Embedded Audio
• Discrete audio is available with the optional MKA-3901 audio module
only. Discrete audio inputs are sample rate converted, and thus can only
accept PCM audio.
