162 IconMaster Installation and Configuration Manual
Chapter 8: Configuring IconMaster
Due to sample rate converters, Dolby-E inputs via discrete
audio are not supported by IconMaster.
In a HD IconMaster system with discrete audio, as in Figure 8-9, for
each primary audio input, each of the 8 audio input channels can be
assigned to any or all of the 16 audio outputs.

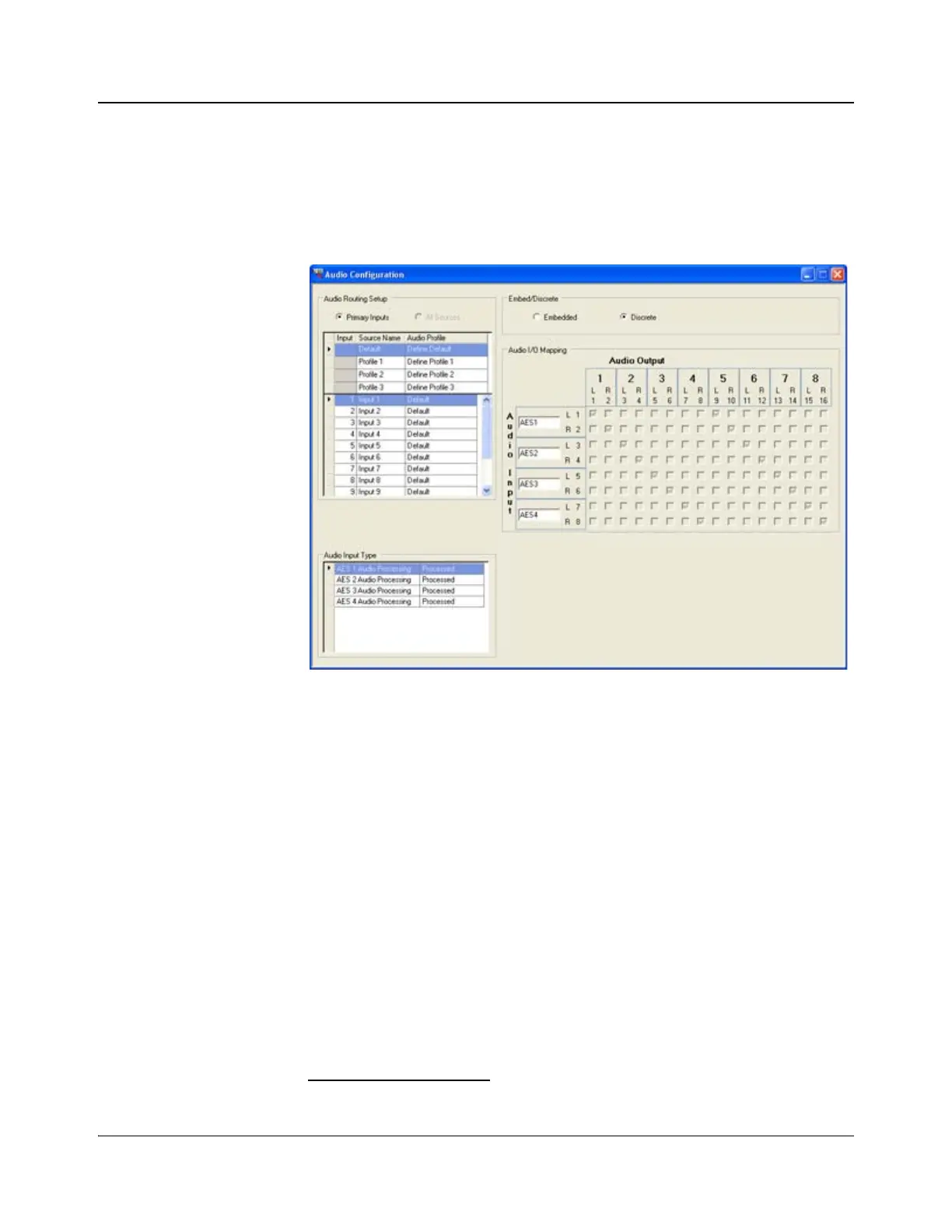

Figure 8-9. Audio Dialog Box — HD with Discrete Audio
If discrete audio inputs are used, all Audio Input Type settings should
be manually assigned to either Processed or Unprocessed. The
Automatic setting is not applicable to discrete audio inputs.
4. Under Audio Channel, select either 8 or 16 channels.
As the audio configuration state changes from 8 to 16 (or vice versa), the
Audio Over Matrix and Audio Cluster dialog boxes will also change
accordingly. See
page 164 and page 182 for more information.
5. Edit the Audio I/O Mapping grid.
This audio mapping will only be applied to the specified input.
IconMaster can recover up to 16 audio channels from each of the 12
1
or 22
2
primary embedded inputs. Alternatively, if the MKA-3901 module is
present, IconMaster allows for up to 4 AES inputs from each of the 12 or 22
primary inputs. Each of the AES inputs has 2 audio channels for a total of 8
audio channels for each input.
6. To rename an audio input, in the Audio I/O Mapping grid, double-click on
the name of the input, and then enter a new name.
1
This is true for 12 input mode.
