2 - 164 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
• START CAP—accesses selections for the shape of the slot end for the Start
of the slot:
• LINE—produces a straight edge for the start cap with a corner radius the
same size as the tool.

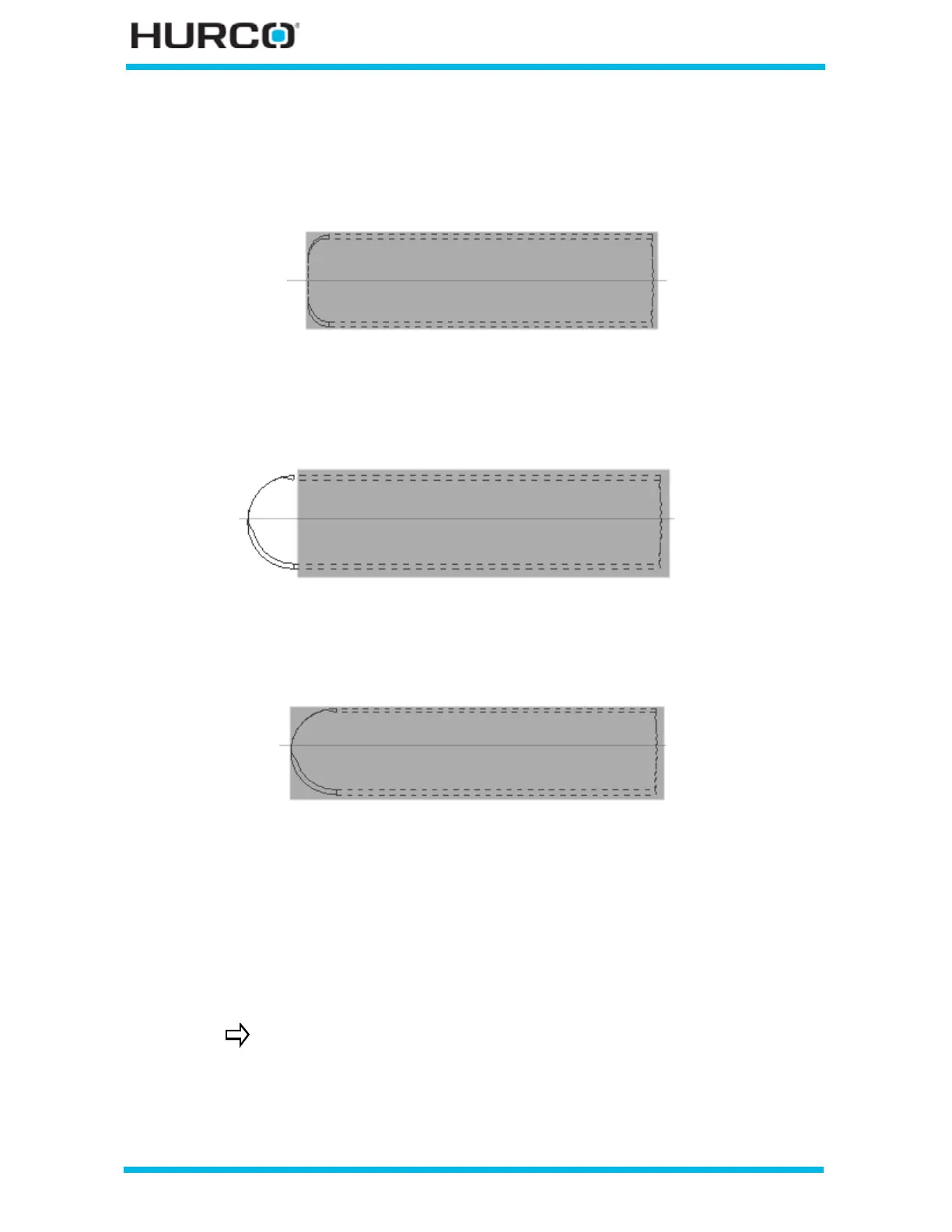

Figure 2–134. End Cap = Line (R = 0.125) Start Cap = Line (R = 0)
• APPEND ARC —produces an arc at the start cap with the arc being
appended or added to the end of the slot.
Figure 2–135. End Cap = Append Arc; Start Cap = Line (R = 0)
• INCLUDE ARC—produces an arc at the start cap with the arc included
within the geometry.
Figure 2–136. End Cap = Include Arc; Start Cap = Line (R = 0)
• CORNER RADIUS—defines the radius of the slot end.
• END CAP—accesses selections for the shape of the slot end for the End of
the slot:
• LINE
• APPEND ARC
• INCLUDE ARC
Refer to Start Cap examples above.
