WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-165
• CORNER RADIUS—defines the radius of the slot end.
• Z START—defines the location where Plunge Feedrate begins. The feedrate is
set in the Plunge Feed field in the Process tab.
• Z BOTTOM (DIA)—accesses selections for the bottom of the slot and the
location where the Plunge Feed Rate ends.
•AT START
•AT END
When Rectangular is selected in the COORDINATES field, these fields appear:

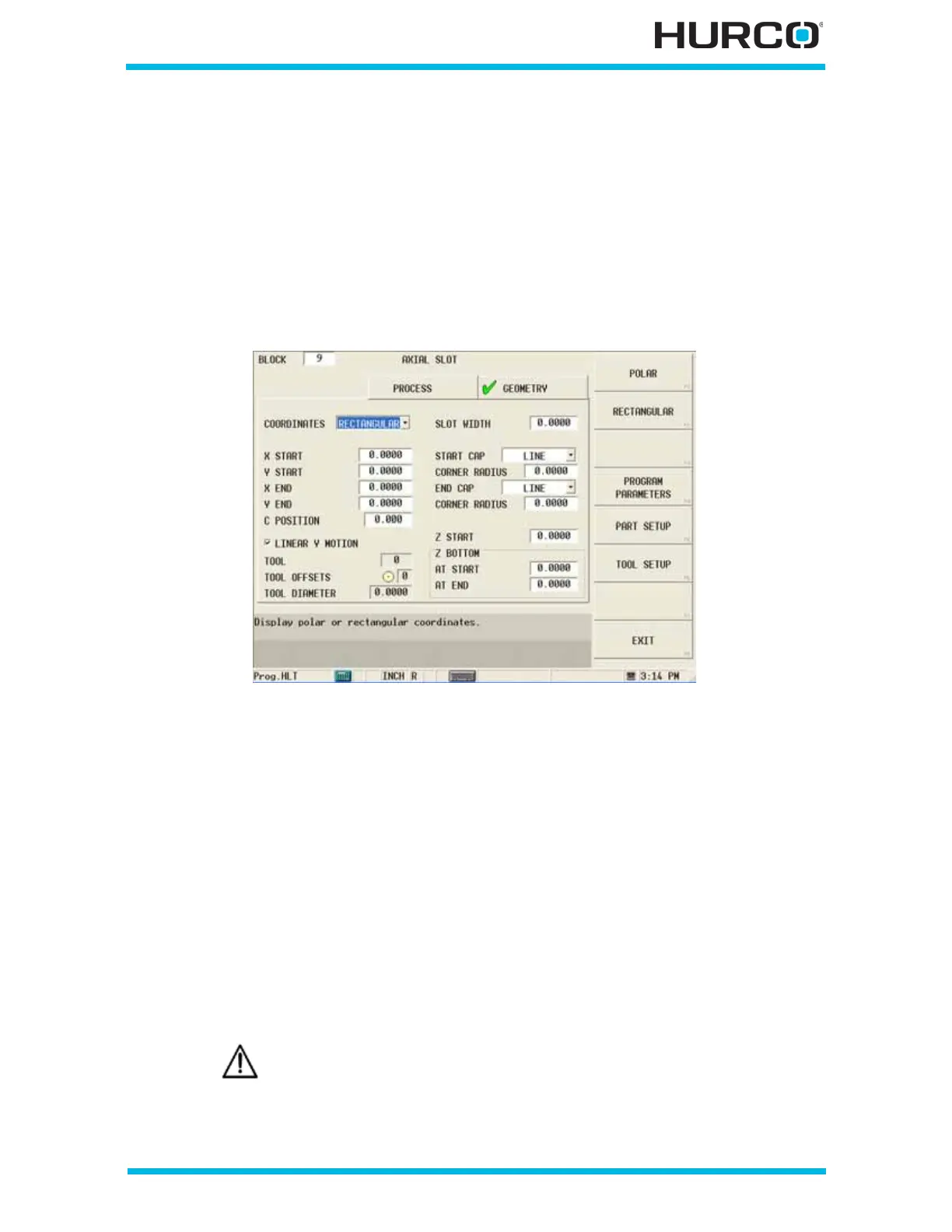

Figure 2–137. Live-Tooling Axial Mill Axial Slot screen Geometry tab: Rectangular Coor-
dinates
• X START—defines the X start coordinate on an XY plane.
• Y START—defines the Y start coordinate on an XY plane.
• X END—defines the X end coordinate on an XY plane.
• Y END—defines the Y end coordinate on an XY plane.
• C POSITION—defines the angle to position the C axis for the slot. This field
appears when the Linear Y Motion checkbox is selected. This field is available
with TMX MY and TMX MYS series machines.
• LINEAR Y MOTION—select this checkbox to cause Y-Axis Motion using the X
and X’ axes. When this checkbox is clear, Y-Axis Motion occurs using the X
and C axes. Please refer to Programming Coordinates and Linear Y Motion, on
page 2 - 68 for examples. This field is available with TMX MY and TMX MYS
series machines.
Linear Y-Axis Motion is limited. The amount of Y travel is affected by
the X position and by any X-Axis tool length offset.
