Mating connector data: (➜ # 54).
l
Cable length: (➜ # 56)
Connector Functionality Pinout, Wiring
X4 For single axis drives only (➜ # 103)

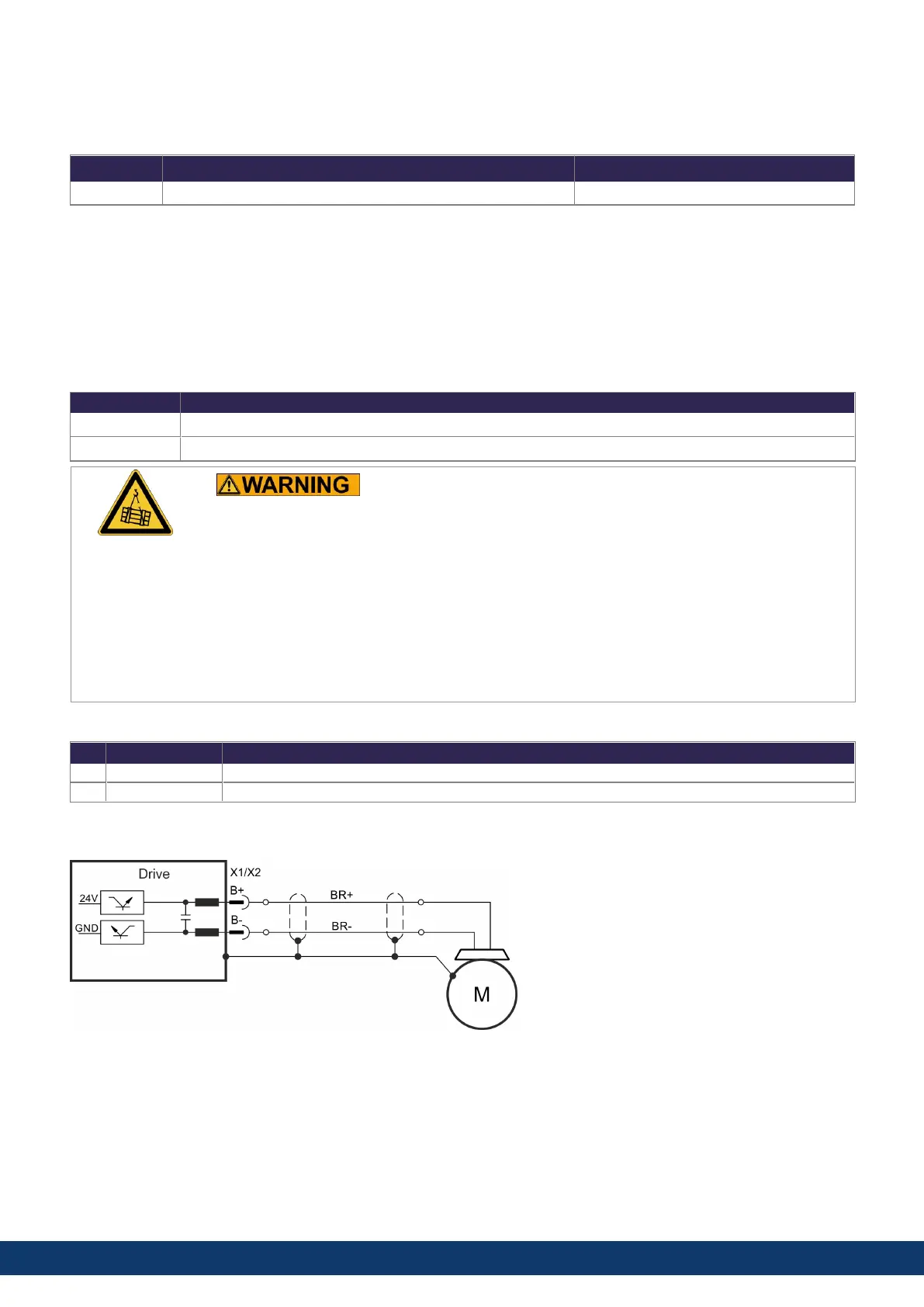

8.9.4 Motor Holding Brake Connection
A 24 V holding brake in the motor can be controlled directly by the drive. For proper function, check voltage drop,
measure voltage at brake input and check brake function (on and off).
Brake voltage supply by using 24 V ±10% auxiliary voltage supply of the drive on X10. Minimum and maximum brake
current see Electrical Data (➜ # 36) respectively (➜ # 38).
AKD2G offers motor brake outputs on connectors X1 and X2. The outputs can be mapped to the required axis with
WorkBench.
Connector Usable for
X1 Primary motor brake axis 1 or secondary brake for axis 2
X2 Primary motor brake axis 2 or secondary brake for axis 1
No functional safety!
Serious injury could result when the load is not properly blocked. The internal brake function
does not ensure functional safety.
l
Functional safety, e.g. with hanging load (vertical axes), requires an additional brake,
controlled e.g. from the other axis or externally from a safety controller. The brakes can
be mapped to an axis with WorkBench.
l
The Hardware Enable does not initiate a controlled stop but switches off the power stage
immediately.
l
Set parameter AXIS#.MOTOR.BRAKEIMM to 1 with vertical axes, to apply the brake
immediately after faults or Hardware Disable.
Pinout X1 / X2
Pin Signal Description
B+ BR+ Brake positive line
B- BR- Brake negative line
Wiring
Usually the brake lines are part of Kollmorgen cable connections to X1 and X2 (➜ # 97).
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 101
