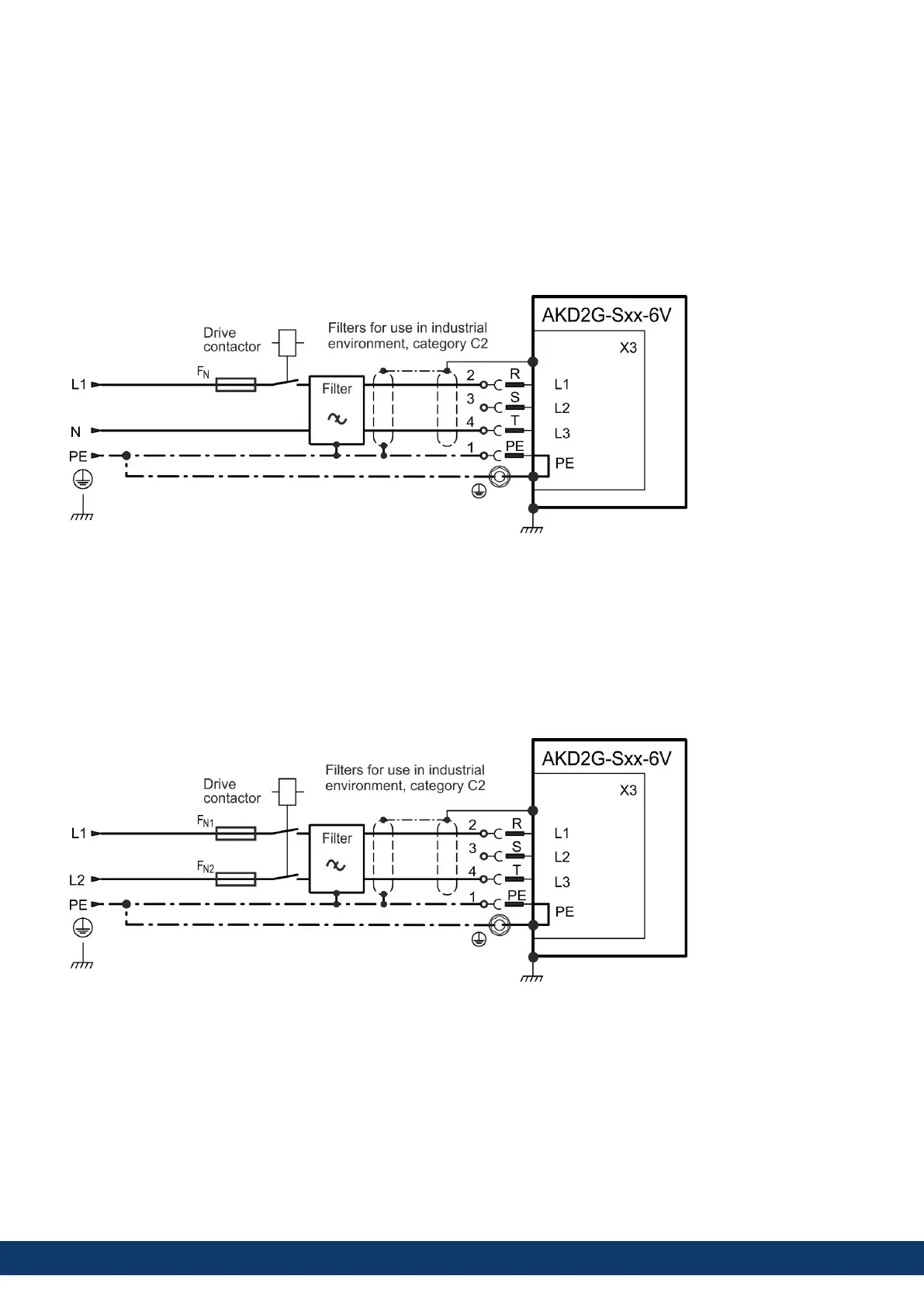

8.6.2.1 Wiring examples mains power supply
One phase AC mains (AKD2G-Sxx-6V)
l
Directly to one phase supply network with neutral line.
l
Activate single phase supply (VBUS.THREEPHASE = 0).
l
Set VBUS.ACNOMINAL to desired nominal AC line voltage for lines other than nominal rated VAC.
l
For complete information refer to WorkBench online help, AKD2G-S User Manual, section Power Setting.
l
AC line filtering to be provided by the user. Use filter type FN2090, refer to the Accessories Manual for more
information. Use shielded cable between filter and drive.
Two phases AC mains (AKD2G-Sxx-6V)
l
Directly to two-phase supply network without neutral line.
l
Activate single phase supply (VBUS.THREEPHASE = 0).
l
Set VBUS.ACNOMINAL to desired nominal AC line voltage for lines other than nominal rated VAC.
l
For complete information refer to WorkBench online help, AKD2G-S User Manual, section Power Setting.
l
AC line filtering to be provided by the user. Use filter type FN2090, refer to the Accessories Manual for more
information. Use shielded cable between filter and drive.
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 81
