AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

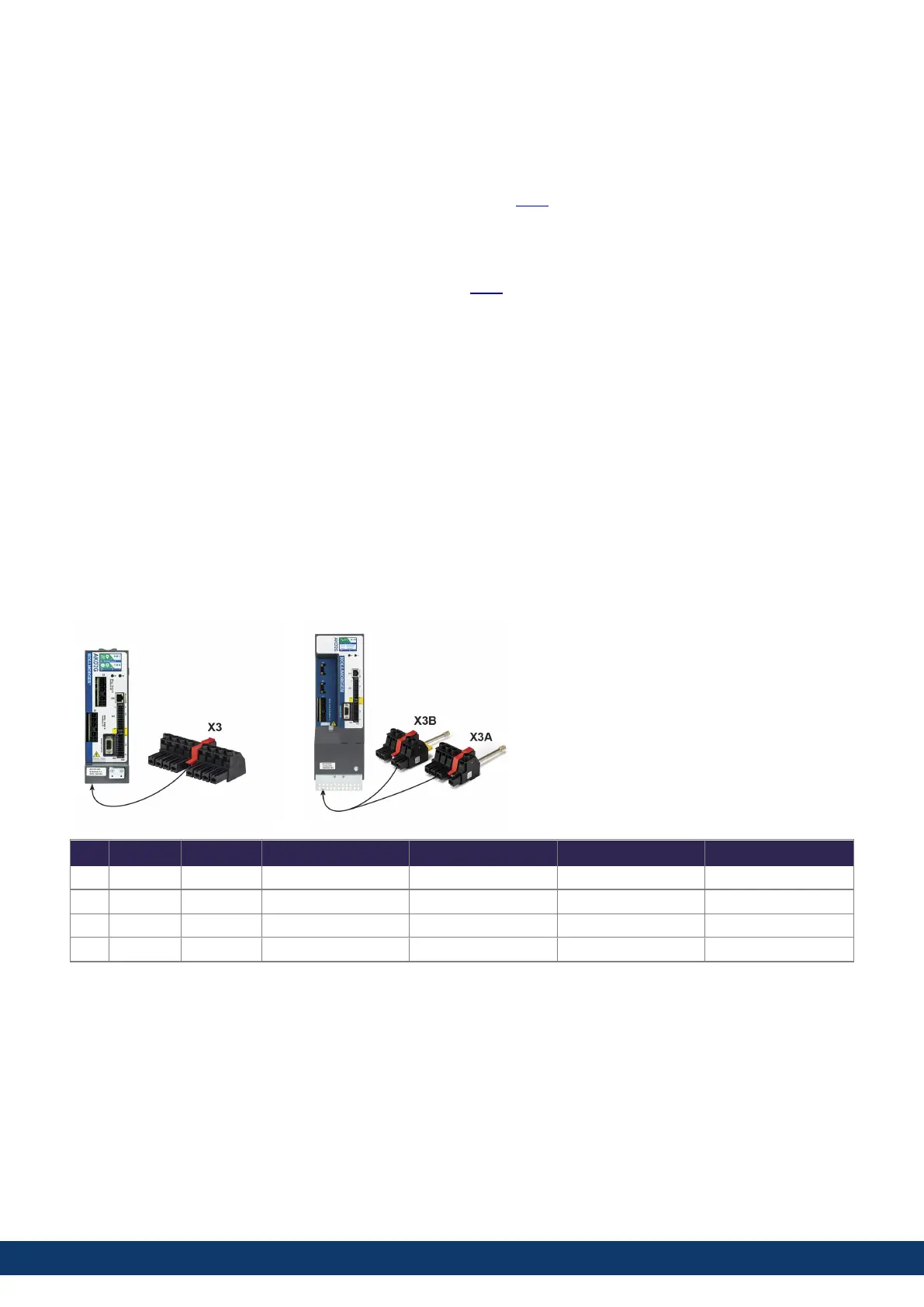

8.6.2 Mains power supply connector X3/X3A
Drives in the AKD2G series can be supplied as follows:
AKD2G-Sxx-6V
l
1, 2 or 3 phase industrial AC supply networks (TN-S or TT, see KDN): (➜ # 35)
l
DC supply networks: (➜ # 35)
AKD2G-Sxx-7V
l
3 phase industrial AC supply networks (TN-S or TT, see KDN): (➜ # 37)
l
DC supply networks: (➜ # 37)
For connection to corner grounded delta supply networks contact Kollmorgen customer support.
Periodic overvoltages between phases (L1, L2, L3) and the PE/housing of the drive must not exceed 1,000 V peak.
In accordance with IEC 61800, voltage spikes (< 50 µs) between phases must not exceed 1,000 V. Voltage spikes
(<50 µs) between a phase and the PE/housing must not exceed 2,000 V.
l
8/4 pin, pitch 7.62/10.16 mm
l
optional T version
l
Wiring example:
l
1 phase AC supply (➜ # 81)
l
2 phase AC supply (➜ # 81)
l
3 phase AC supply (➜ # 82)
l
DC supply (➜ # 83)
l
AKD2G-Sxx-6V requires external EMC filter for use in industrial environment, product category C.
l
Mating connector data (➜ # 54)
l
Fusing with different system structures (➜ # 85) ff
Pin
Label Signal 1~ Supply 2~Supply 3~ Supply DC Supply
1 PE PE Protective earth Protective earth Protective earth Protective earth
2 R L1 Phase L1 Phase L1 Phase L1 + DC
3 S L2 n.c. n.c. Phase L2 n.c.
4 T L3 Neutral N Phase L2 Phase L3 - DC
For DC supply: observe notes (➜ # 83).
80 Kollmorgen | kdn.kollmorgen.com | June, 2023
