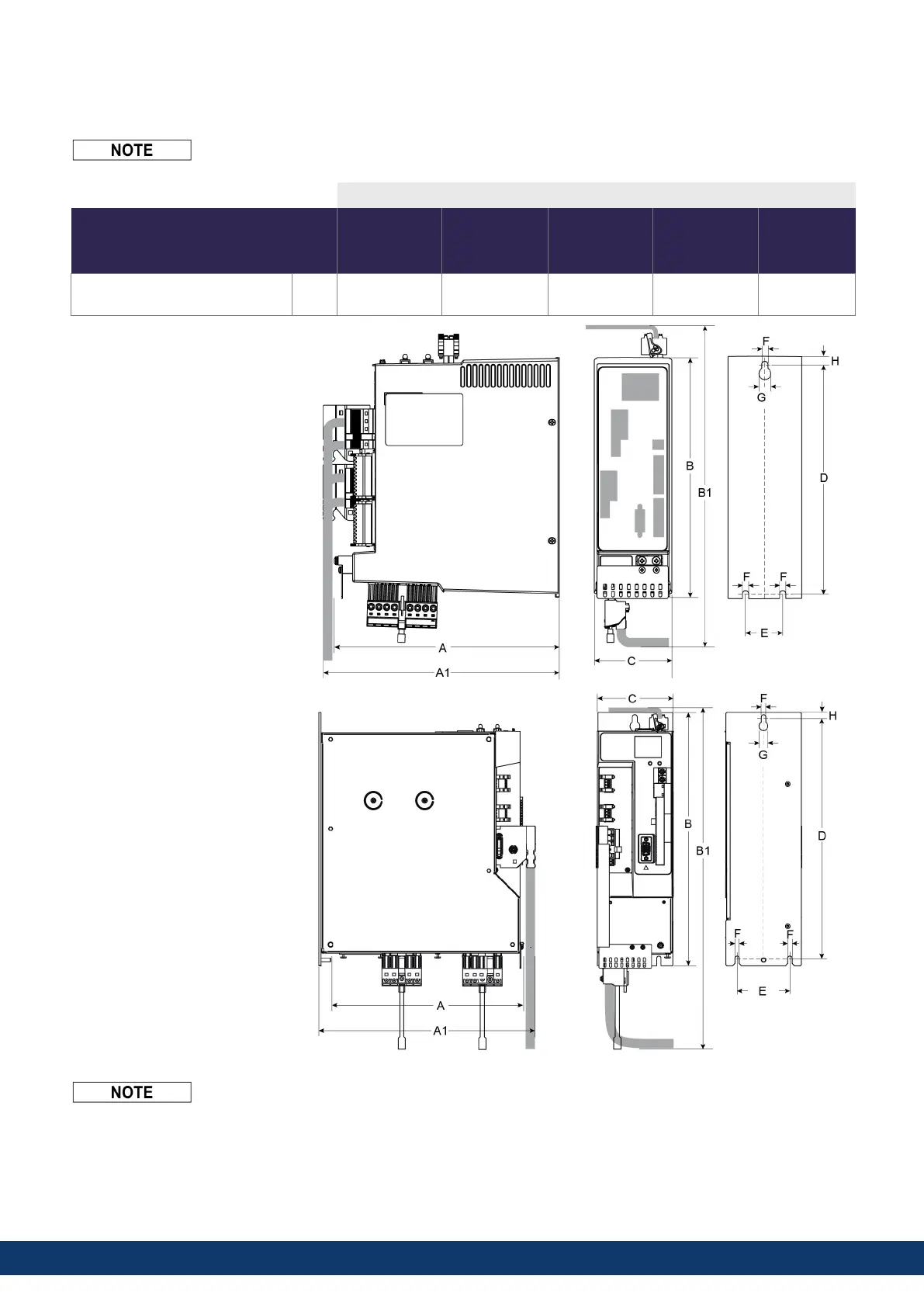

7.3 Dimensions
Mounting: 3 x M5 hexagon socket screws to ISO 4762, 4 mm hexagon ball head screwdriver
AKD2G-Sxx-
Parameter Unit 6V03S,
6V06S,
6V12S
6V03D,
6V06D
7V03S,
7V06S
7V03D,
7V06D,
7V12S
7V24S
Weight (without mating
connectors)
kg 2.4 2.5 2.5 2.7 6.4
General 6V and 7V models with
X3 connector
7V24S model with X3A and
X3B connectors
Outline width and height dimensions are measured on footprint level (mounting plate). Dimensions on the
front plate are slightly smaller.
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 49
