8.16.5.2 Digital-Out 7 and 8

These outputs are programmable with WorkBench. By default, all outputs are not programmed (off).

Technical characteristics

The outputs can switch +5 V to +30 V

Galvanic isolation for 24 VDC from PE

The two channels are isolated from one another and not referred to a common potential

Output current max.100 mA

Can be wired as sinking or sourcing (see examples below)

Update rate: 250 µs

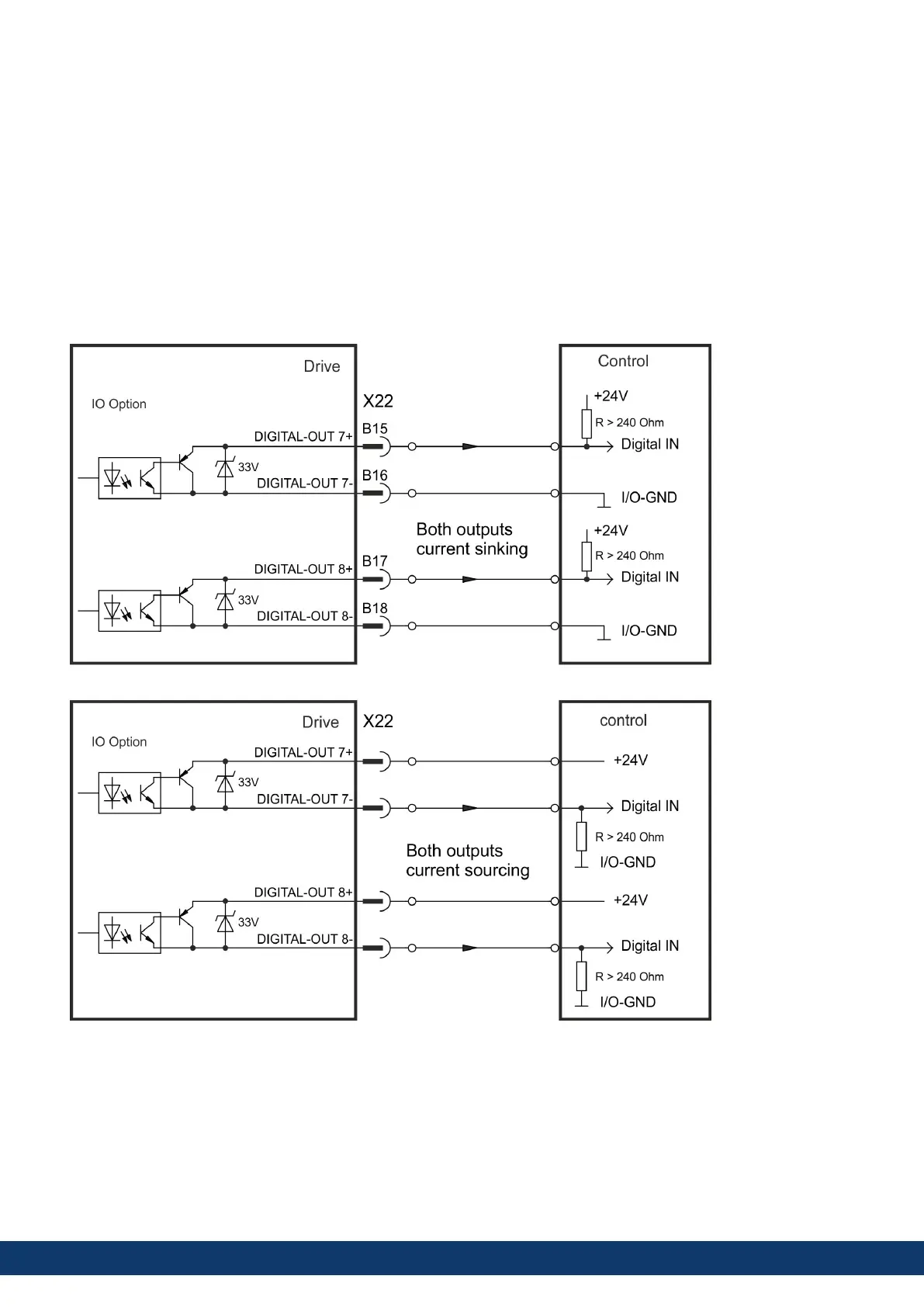

Wiring examples

AKD2G-S Installation Manual, Safety 1

Kollmorgen | kdn.kollmorgen.com | June, 2023 159
