8.10.12 X41 Feedback Wiring Pinout Diagrams
8.10.12.1 X41 SFD Feedback

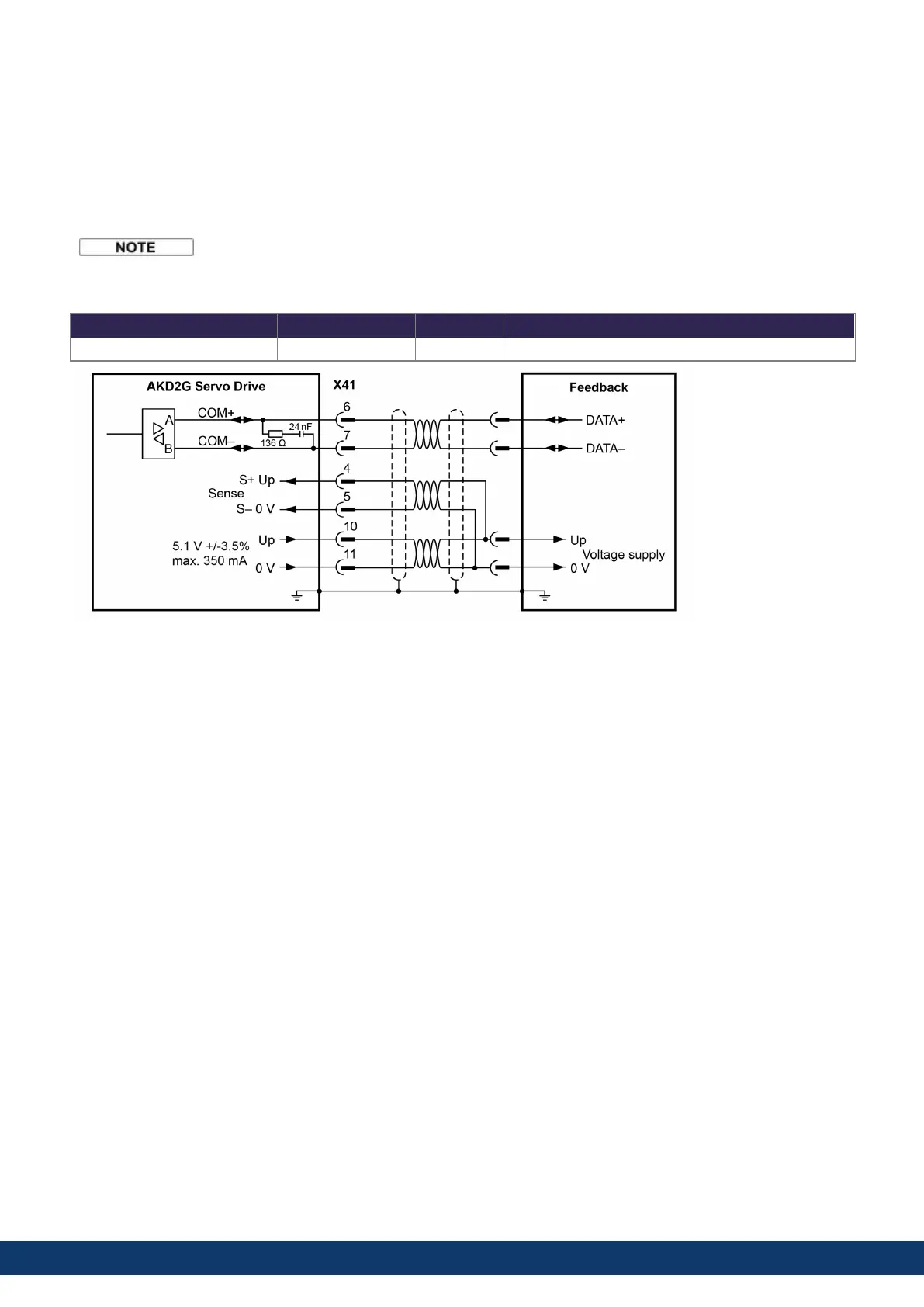

The diagram below shows the connection of the four-wire Kollmorgen SFD feedback system.
When SFD cable total resistance for 5V out (Up) and 5V return (0V) is less than 3.3 Ohm, then
remote sensing is not needed. For a typical cable this means remote sensing is not needed up
to 25m.
Kollmorgen cables are rated up to 50m with no remote sensing.
Type FBx.INDENTIFIED Up Description
Smart Feedback Device (SFD) 141 5.1 V ± 3.5% Accuracy: 14 bit (0.022°), resolution: 24 bit (2x10E-5°)
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 127
