AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation
8.10.9 Feedback Connector X23
l
Connectivity Option F3 or DX (➜ # 28)
l
Sub-D high density 15 pin, female
l
Use Kollmorgen feedback cables
l
Input for several feedback types
l
Input for Electronic Gearing, (➜ # 139)
l
Output for encoder emulation (EEO1), (➜ # 139)
l
Digital input (➜ # 154), Digital output (➜ # 158)
l
Mating connector data (➜ # 54).

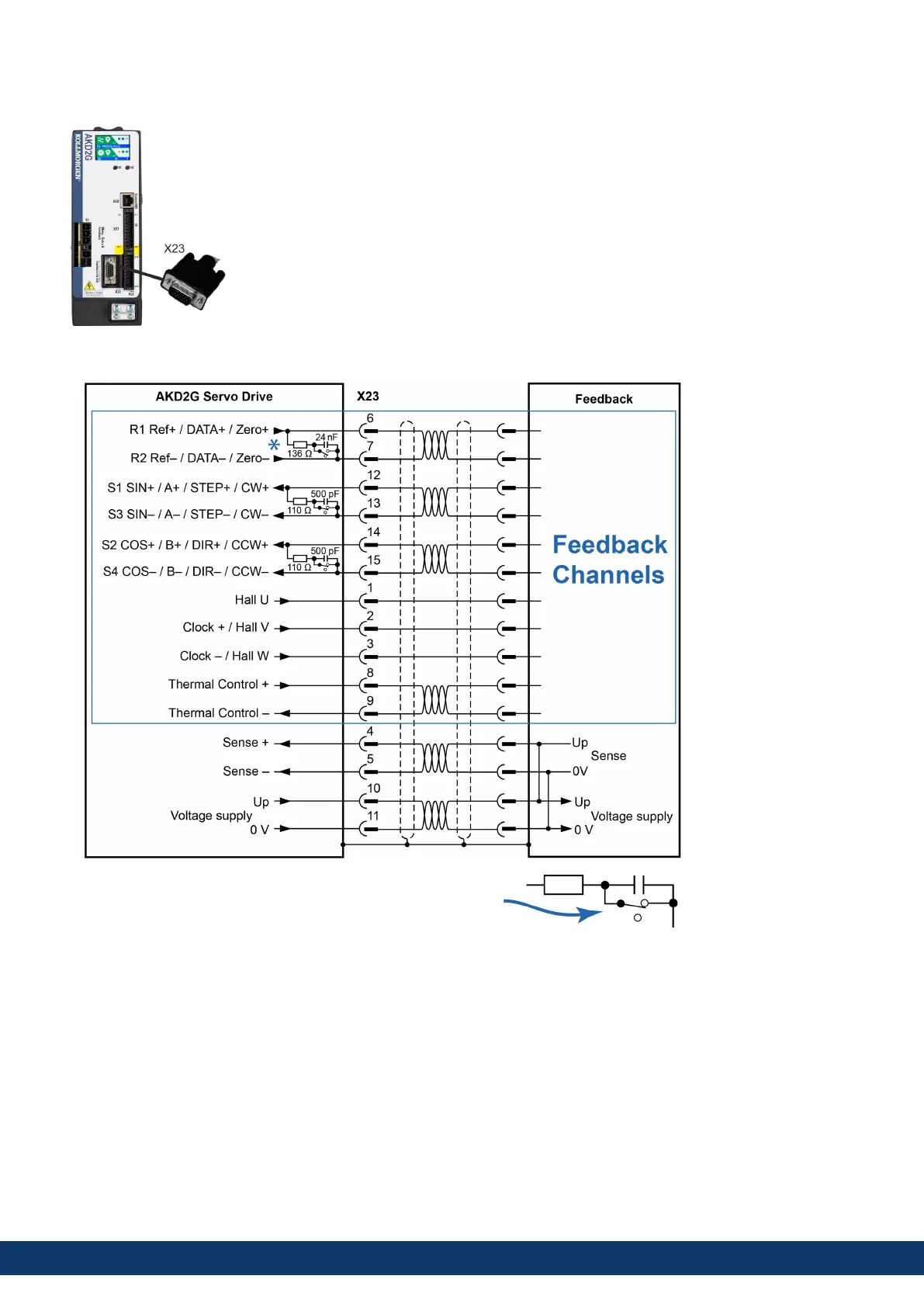

8.10.9.1 X23 Connector Pinout Summary
*AC / DC Selectable Termination: Older drives may not include a DC
termination switch across pins 6 and 7. Please contact Kollmorgen
Support for more information
110 Kollmorgen | kdn.kollmorgen.com | June, 2023
