AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

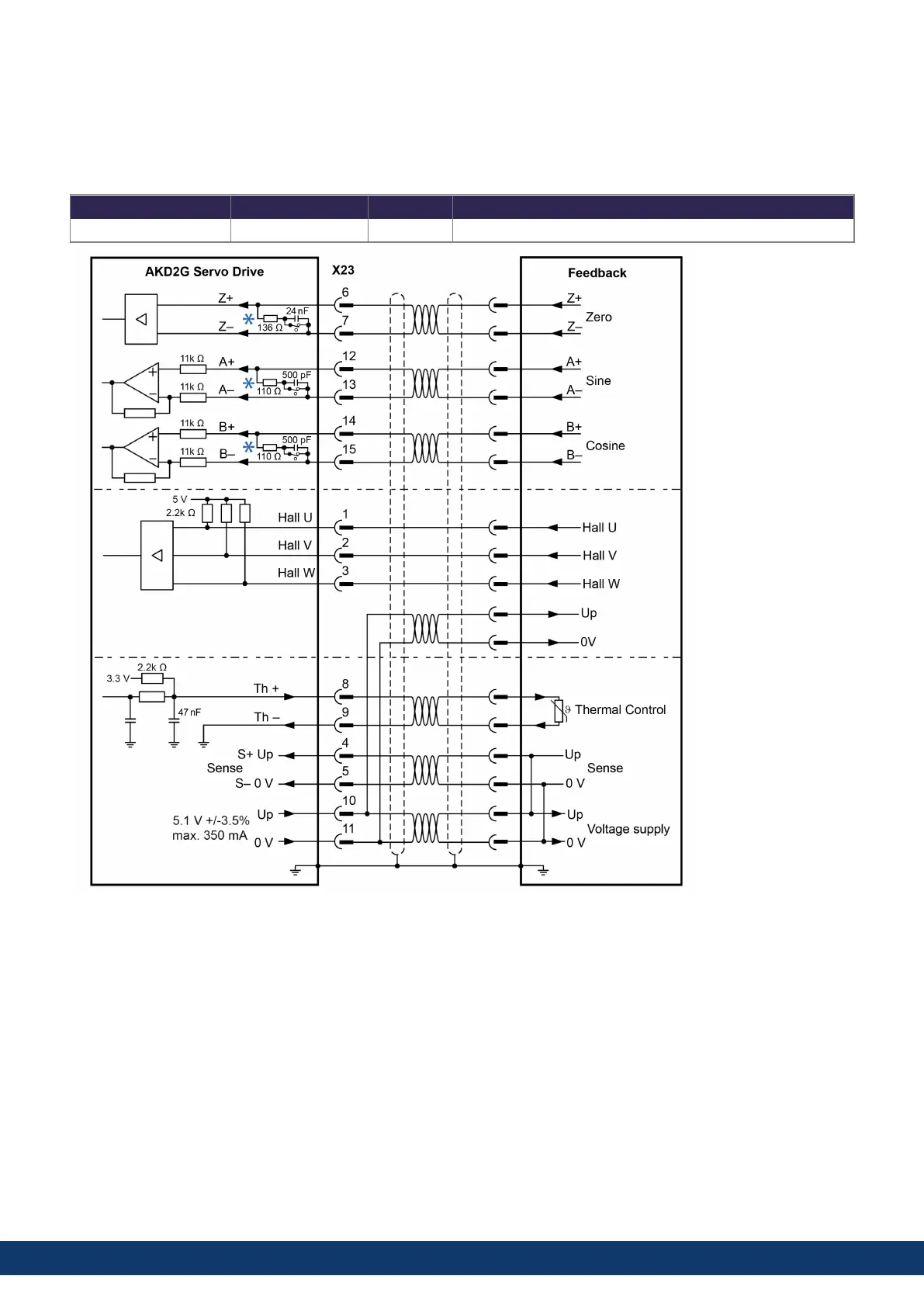

8.10.10.9 X23 Sine Encoder with Hall Feedback
This feedback device delivers absolute information for commutation and can be used as a complete feedback
system. All signals are connected to X23 / X41 and evaluated there.
If cable lengths of more than 25m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
SinCos 1 V p-p with Hall 20 5.1V ± 3.5% 1 MHz, 250 kHz for encoders that require termination resistors
*
DC terminated by default - DC switch closed.
120 Kollmorgen | kdn.kollmorgen.com | June, 2023
