AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation
8.10.12.2 X41 Resolver Feedback

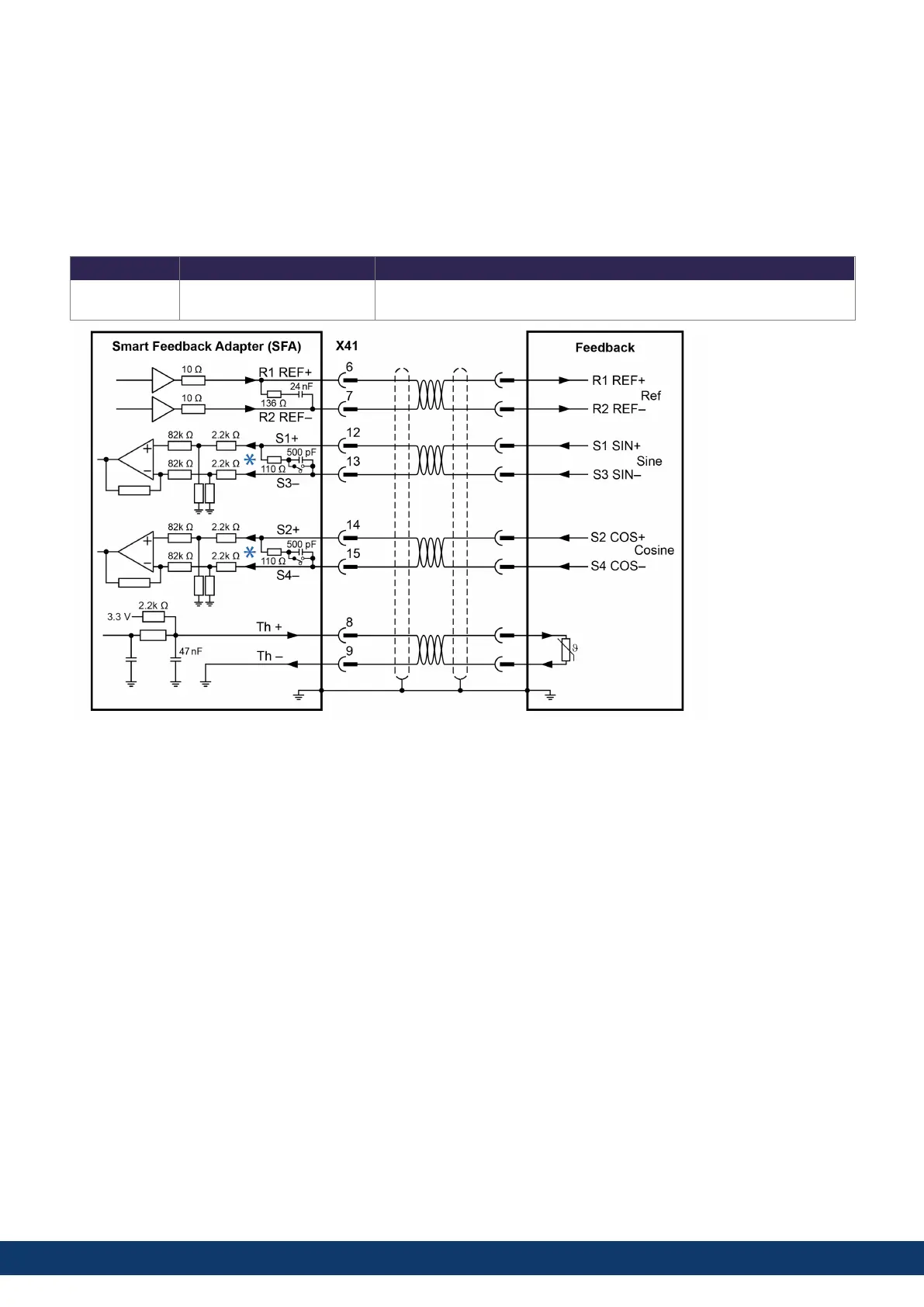

The diagram below shows the connection of a resolver (2 to 36-poles) as a feedback system. The thermal control in
the motor is connected via the Resolver cable and evaluated in thedrive. If no thermal control is in the motor, the
cable must short pins 8 and 9.
If cable lengths of more than 100m are planned, please contact customer support.
Type FBx.INDENTIFIED Description
Resolver 140
Accuracy: 14 bit (0.022°), resolution: 16 bit (0.006°),
frequency (fixed): 6875 Hz
*Resolver Sine/Cosine channels must be high impedance - DC termination switch open.
128 Kollmorgen | kdn.kollmorgen.com | June, 2023
