AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

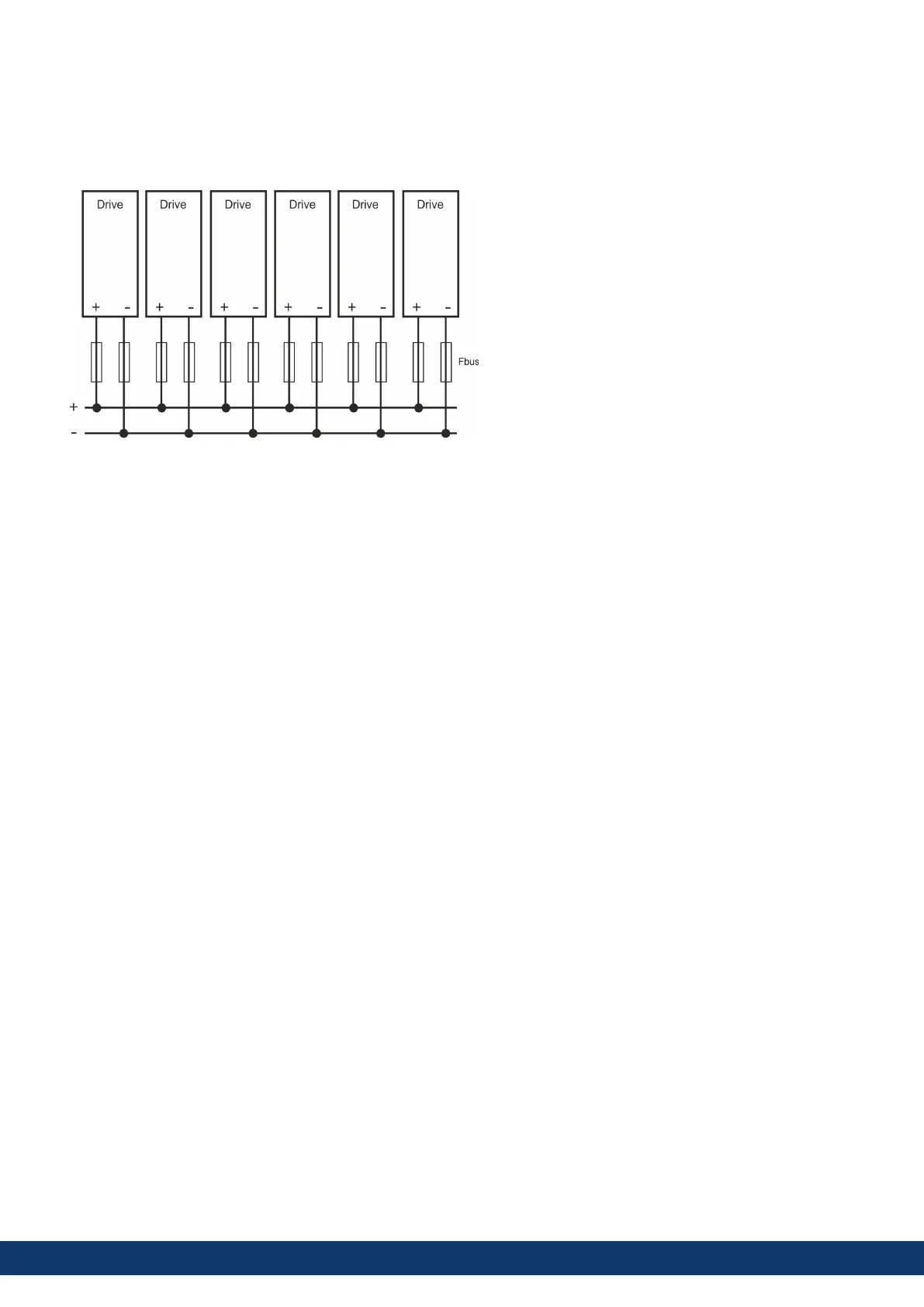

8.7.3 Wiring example with busbar
If a device fails in this system due to a short-circuit, only its fuses (Fbus) are tripped and the rest of the network
continues uninterrupted. The solid busbars can conduct significantly larger currents than T connectors, because the
compensating current does not flow through the connector as above.
94 Kollmorgen | kdn.kollmorgen.com | June, 2023
