AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

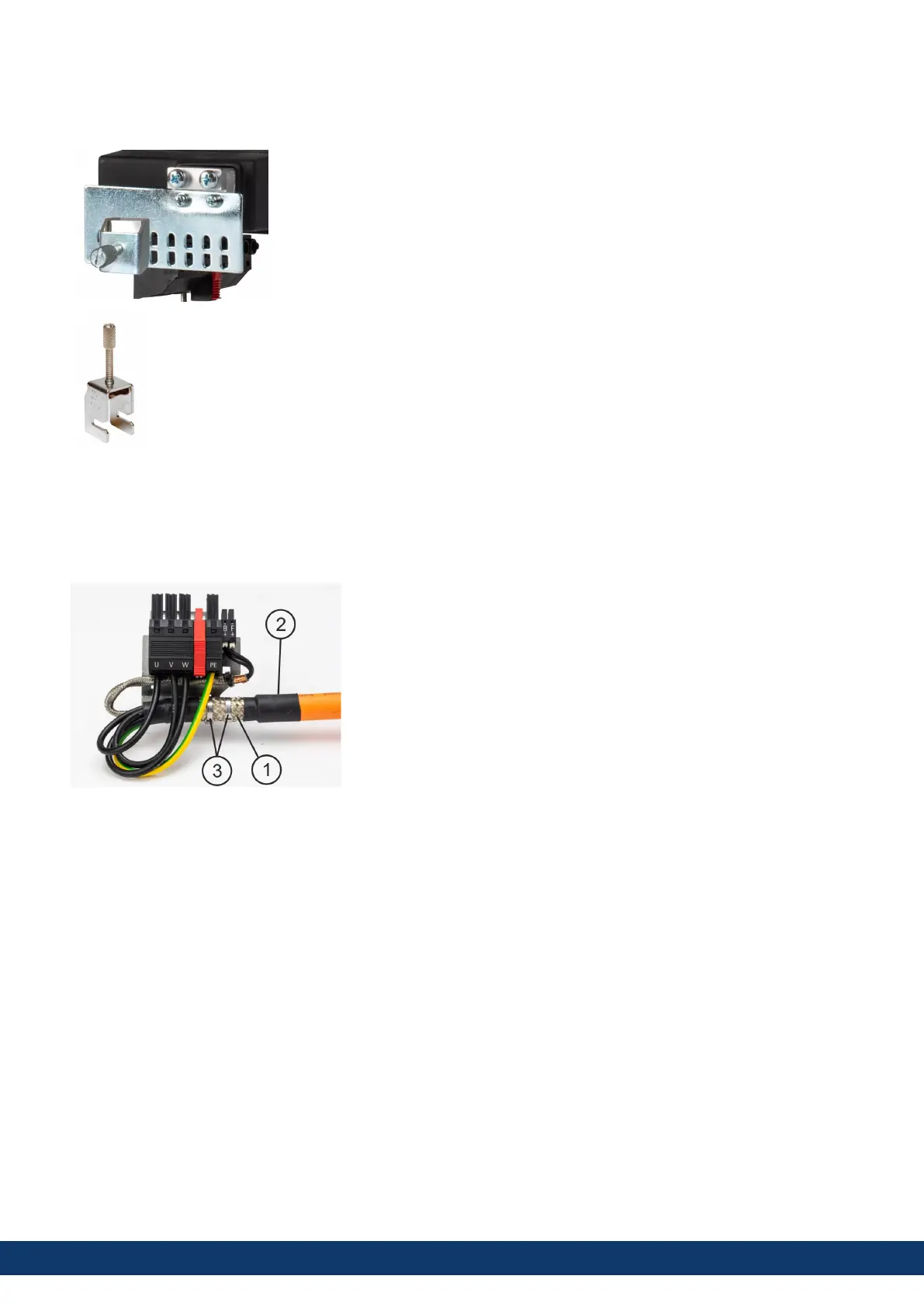

8.4.3.2 Grounding plates and shield connection clamps
A grounding plate is mounted to the drive.
Use shield connection clamps (see accessories manual). These hook into the grounding plate and ensure
optimum contact between the shield and the grounding plate.
Kollmorgen recommends using Phoenix Contact SK14 shield clamps with cable clamp range of 6-13mm.
8.4.3.3 Motor connector X1/X2 with shielding connection
Alternative connection of the motor power by mating connector with shield plate and strain relief. Kollmorgen motor
power and hybrid motor cables are configured with shield plate.
To connect the motor power, proceed as follows:
1.
Strip the external cable sheath to a length of approx. 80mm, taking care not to
damage the braided shield.
2.
Push the braided shield (1) back over the cable and secure with a rubber
sleeve (2) or shrink sleeve.
3.
Shorten all the wires apart from the protective earth (PE) wire (green/yellow)
by about 20mm so that the PE wire is now the longest wire.
4.
Strip all wires and fit wire end ferrules.
5.
Secure the braided shield of the cable with metal cable ties (3) and fasten the
cable.
6.
Wire the connector as shown in the connection diagram.
7.
Plug in the connector to the socket on the front of the AKD2G and secure it
with the red clip.
The motor power is now connected.
62 Kollmorgen | kdn.kollmorgen.com | June, 2023
