AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation
8.10.12.4 X41 BiSS (Mode C) Digital Feedback

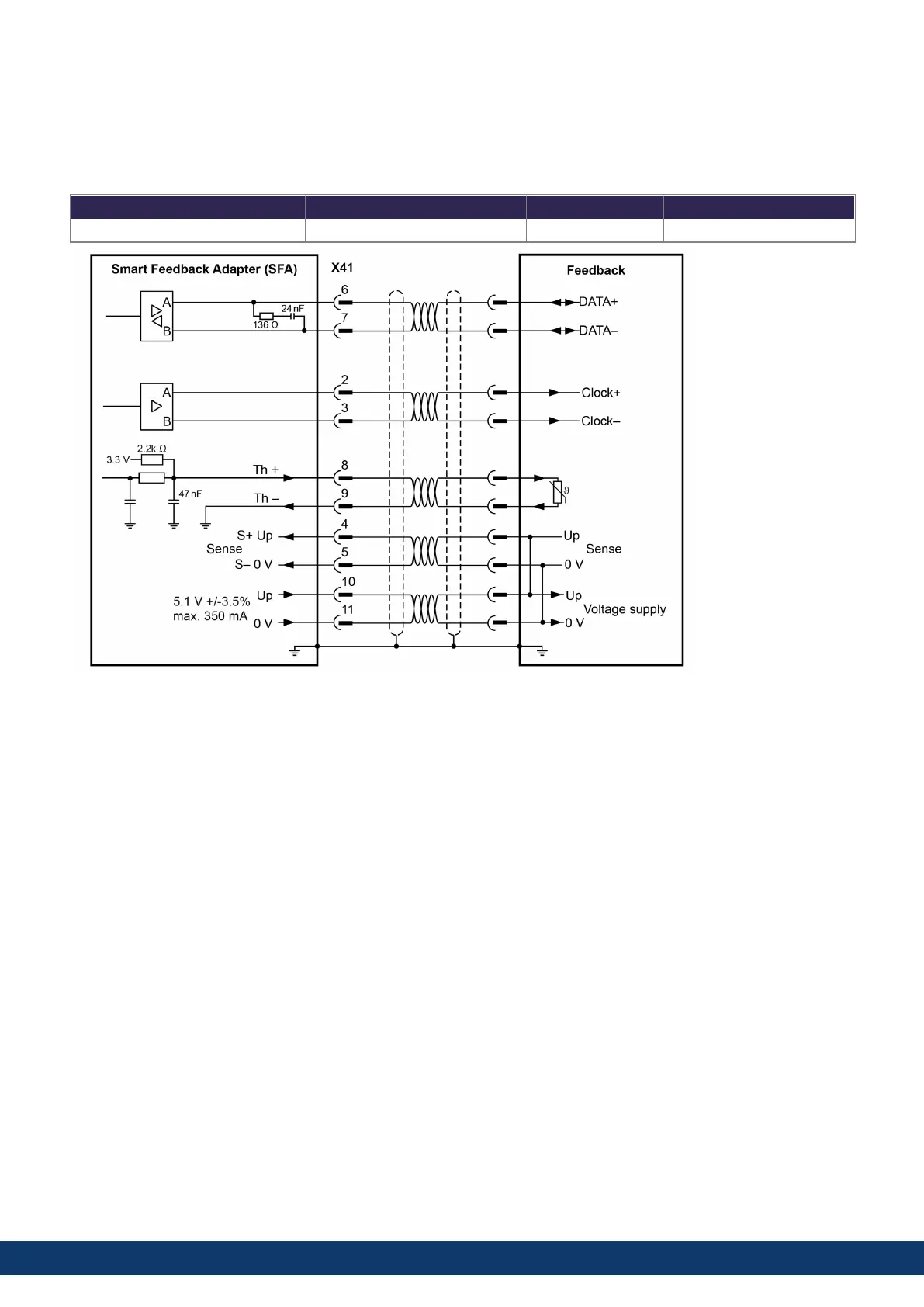

The diagram below shows the wiring of a single-turn or multi-turn encoder with BiSS Mode C interface from
Renishaw (specifically model Resolute RA26B) as a feedback system.
If cable lengths of more than 25m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
BiSS (Mode C) Digital 134 5.1V ± 3.5% 1 MHz
