Kollmorgen AKD 2G-S Series User Manual

8.5.2.1 AKD2G 480 Vac, 24 Amp drive

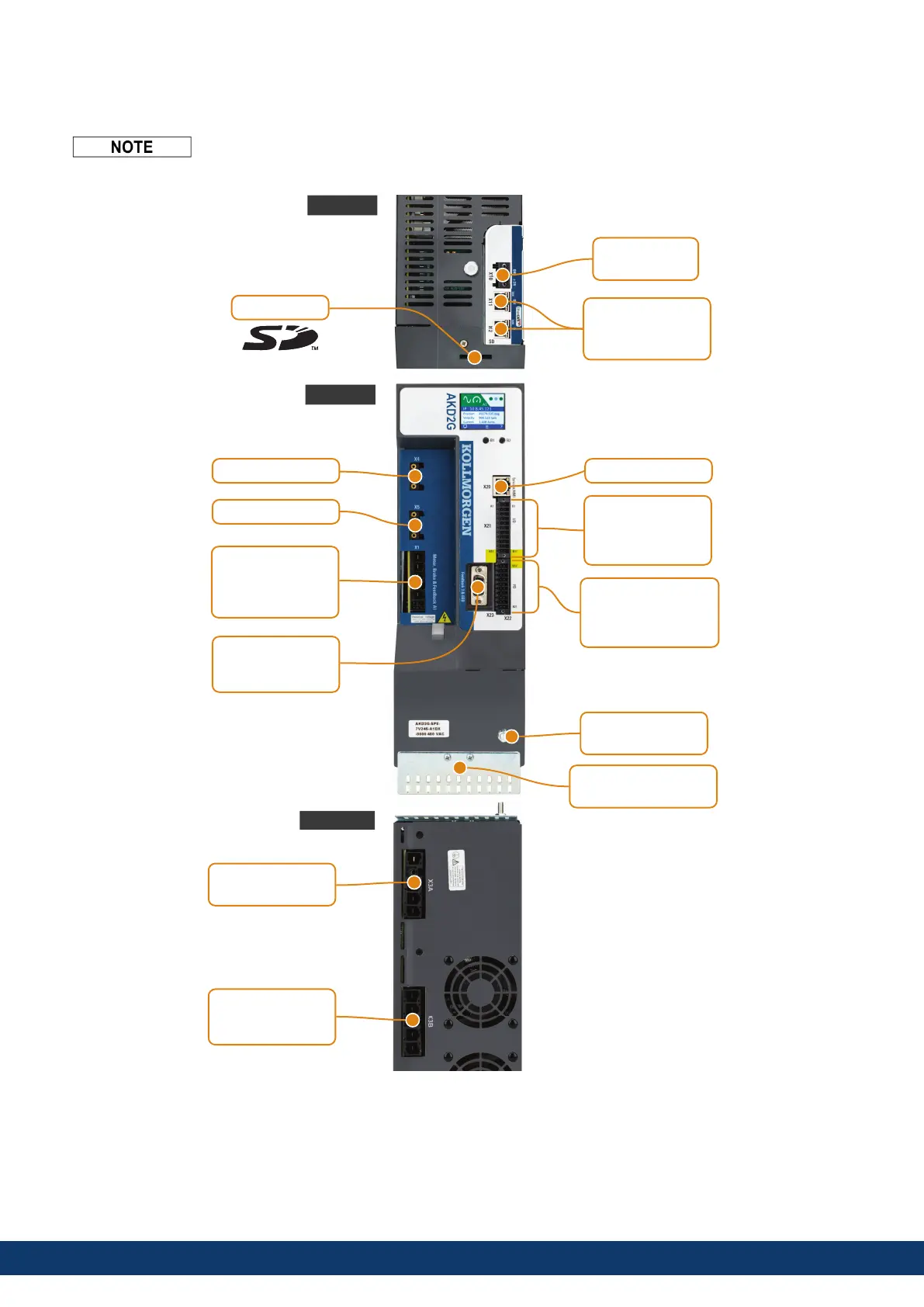

The graphics shows an AKD2G with supply voltage 480 V.
Optional: I/O, F3 or DX (➜ # 28).
Top View
Front View
Bottom View
SD Slot
X10
24 V Supply
X11/12 EtherNet
(optional)
X13/14 CANopen
X20 Service/HMIX4 Brake 2
X5 Feedback 2
X3A (4-pin)
Power Supply
X3B (4-pin)
DC-Bus
Regen Resistor
X1
Axis 1: Motor,
Brake,
Feedback 1
Protective Earth
(PE)
X23 Feedback 3
EEO1
(optional)
Grounding Plate
(Shield Connection)
X21 I/O
Feedback 4
X21 I/O
Feedback 5, EEO2
(optional)
A1
A12
B1
B12
A11
A21
B11
B21
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 65
