8.10.10.4 X23 BiSS (Mode C) Digital Feedback

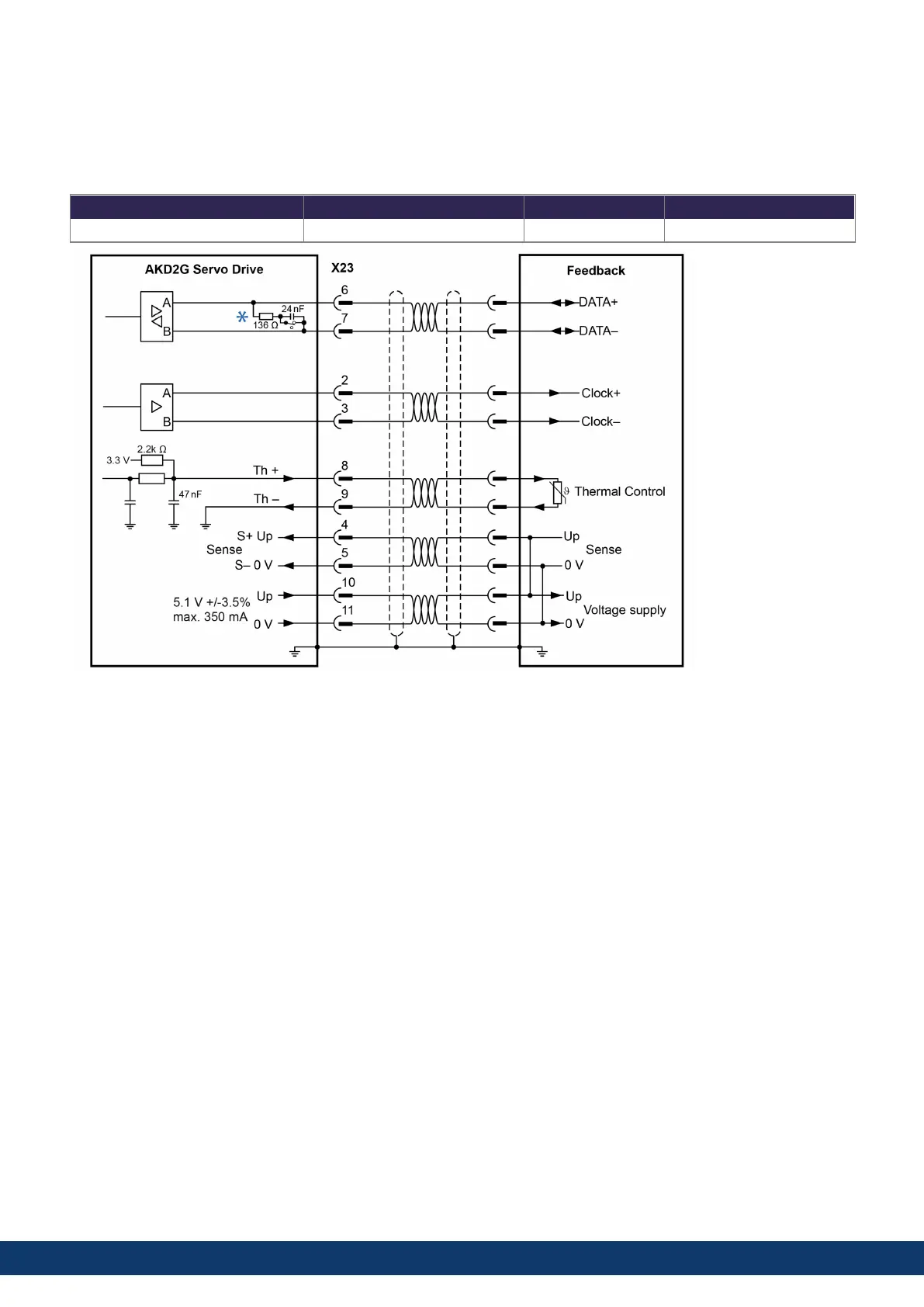

The diagram below shows the wiring of a single-turn or multi-turn encoder with BiSS Mode C interface from
Renishaw (specifically model Resolute RA26B) as a feedback system.
If cable lengths of more than 25m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
BiSS (Mode C) Digital 34 5.1 V ± 3.5% 1 MHz
*
DC terminated by default - DC switch closed.
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 115
