AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

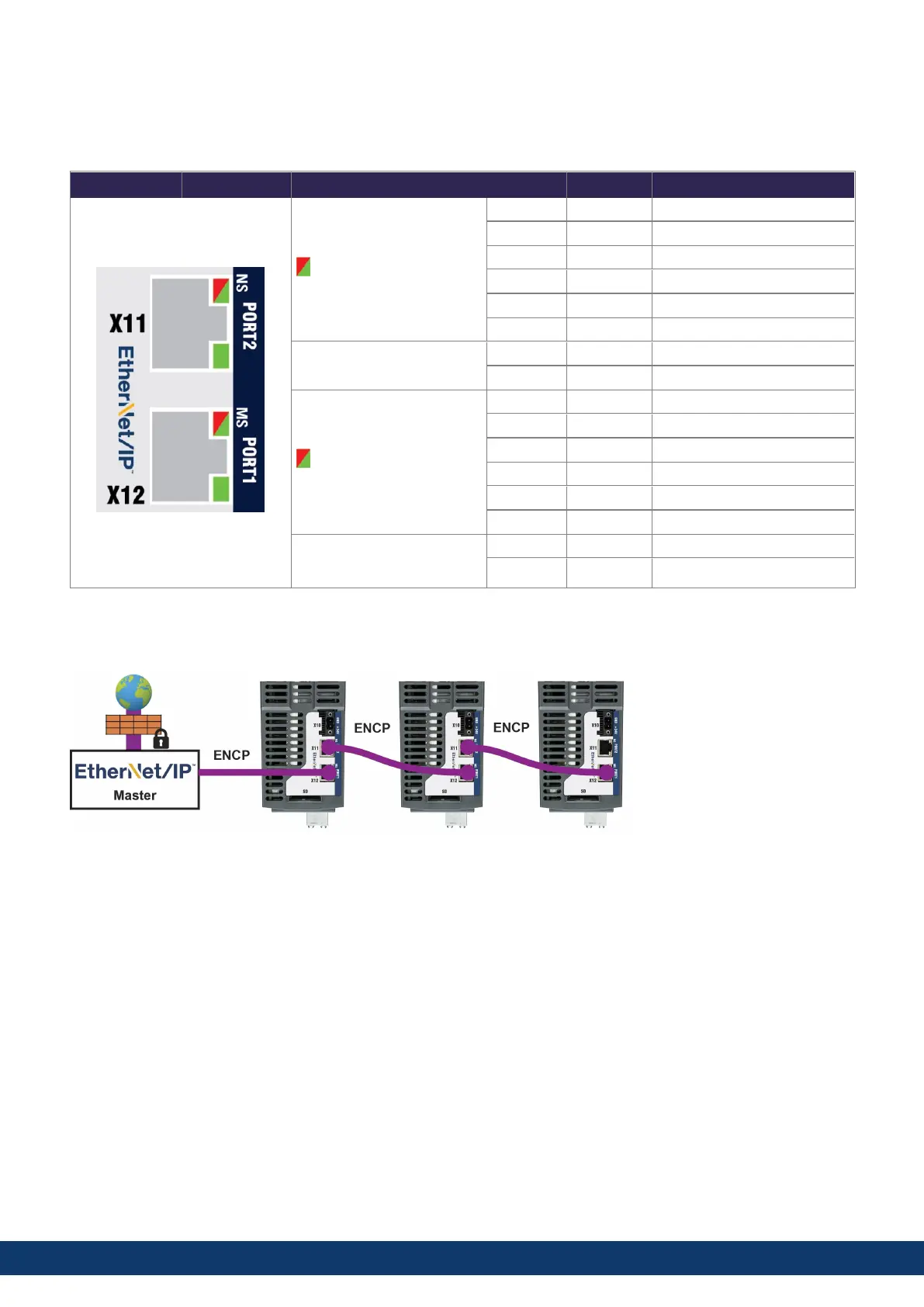

8.12.3 EtherNet/IP
AKD2G with connectivity option I can be connected as slaves to a EtherNet/IP network by using RJ45 connectors
X11 (Port 2) and X12 (Port 1). The communication status is indicated by the built-in connector LEDs.
Connector Name LED Indicator Status Function
Network Status (NS)
█ On Connection
█ Flashing No Connection
Off No power, No IP Address
█ On Duplicate IP Address
█ Flashing Connection Time-Out
██ Flashing Self-Test
█ Link/Activity
█ On Ethernet Connection
Off No Ethernet Connection
Module Status (MS)
█ On Device Operational
█ Flashing Standby
Off No Power
█ On Unclearable Fault
█ Flashing Clearable Fault
██ Flashing Self-Test
█Link/Activity
█ On Ethernet Connection
Off No Ethernet Connection
Bus topology example (EtherNet/IP)
We suggest to use Kollmorgen ENCP cables. For more possible system solutions refer to the WorkBench Online
Help.
Communication profile
For EtherNet/IP communication profile description refer to the manual "AKD2G EtherNet/IP Communication".
