AKD2G-S Installation Manual, Safety 1 | 10 Safety Manual for FS1
10.5 Safety Faults,Safety Warnings
AKD2G with safety option 1 do not have safety failure modes.
10.5.1 LCD Display

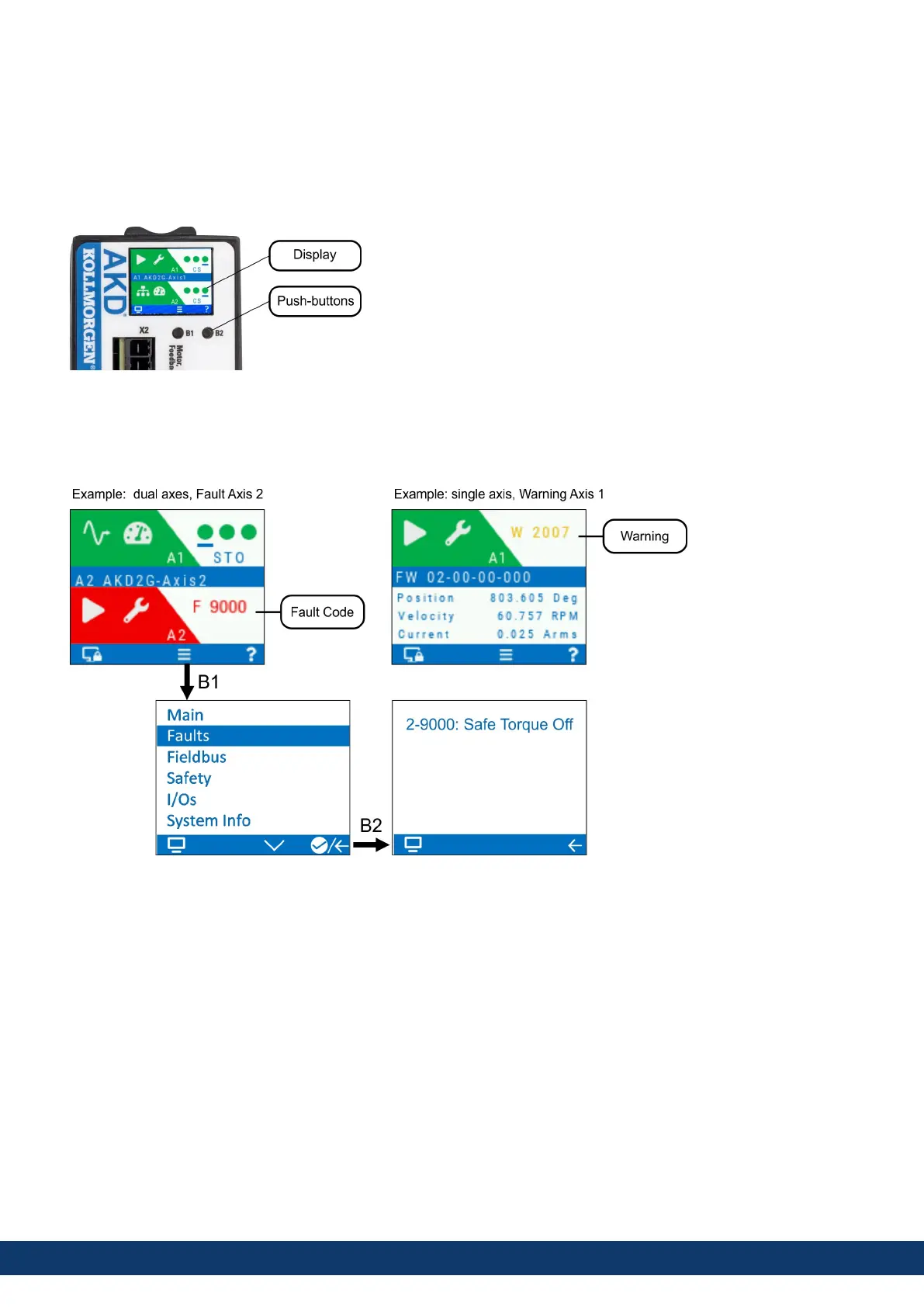

The drive offers an LCD display and two push-buttons, B1 and B2, for navigation.
The display on the front panel of the drive shows the code of the fault or warning that occurred. Safety Faults and
Warnings follow the same pattern and are identified by a four digit code 90 XX, where 90 is the two digit group code,
and XX is a two digit ID.
Navigate with B1 / B2 to the Fault screen to see a short description of the fault or warning. See WorkBench Online
Help for details.
190 Kollmorgen | kdn.kollmorgen.com | S103, March 2023
