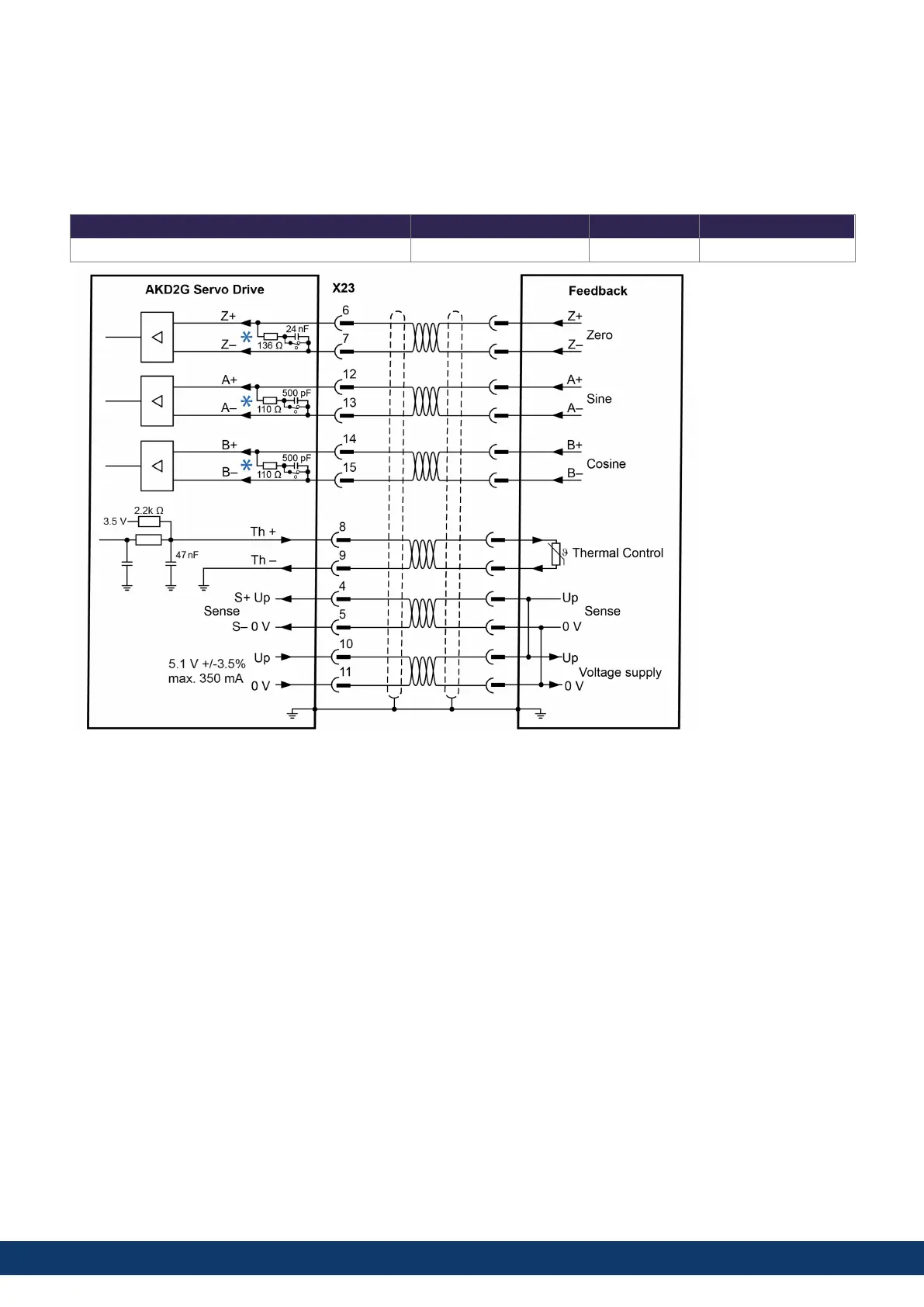

8.10.10.10 X23 Incremental Encoder Feedback
This feedback device does not deliver absolute information for commutation and works with Wake and Shake
commutation (see WorkBench Online Help). All signals are connected using a pre-assembled comcoder connection
cable. The thermal control in the motor is connected via the encoder cable and evaluated in the drive.
If cable lengths of more than 25m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
Incremental Encoder (Wake and Shake) 11 5.1V ± 3.5% 2.5 MHz
*
DC terminated by default - DC switch closed.
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 121
