8.4.2 Shielding with external shielding busbar
For best practice use of shielded cables Kollmorgen recommends a star point shield connection, for example, with a
shielding busbar.
8.4.2.1 Shielding Concept

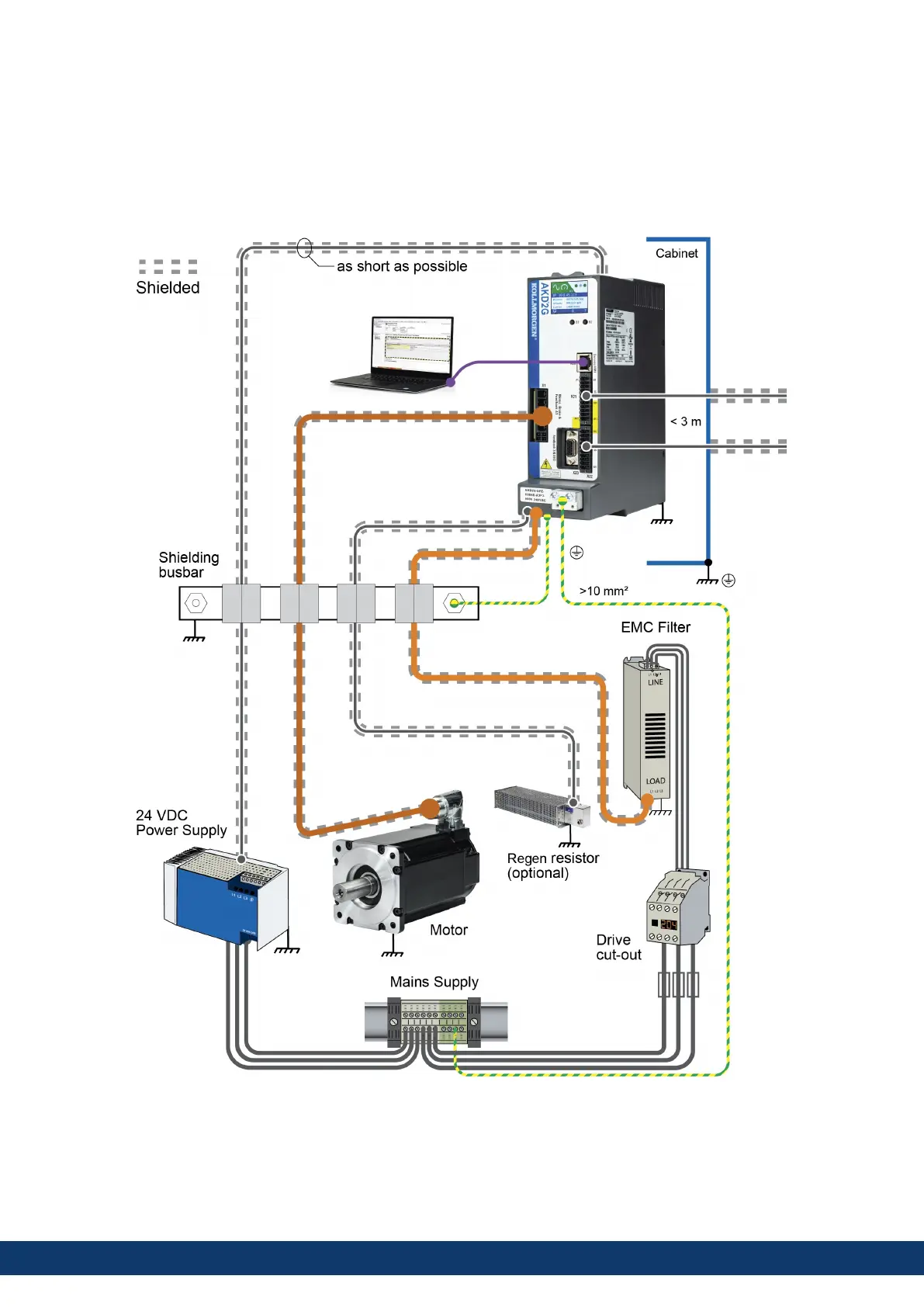

Example with AKD2G-Sxx--6Vxx, EMC filter and external regen resistor.
