AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

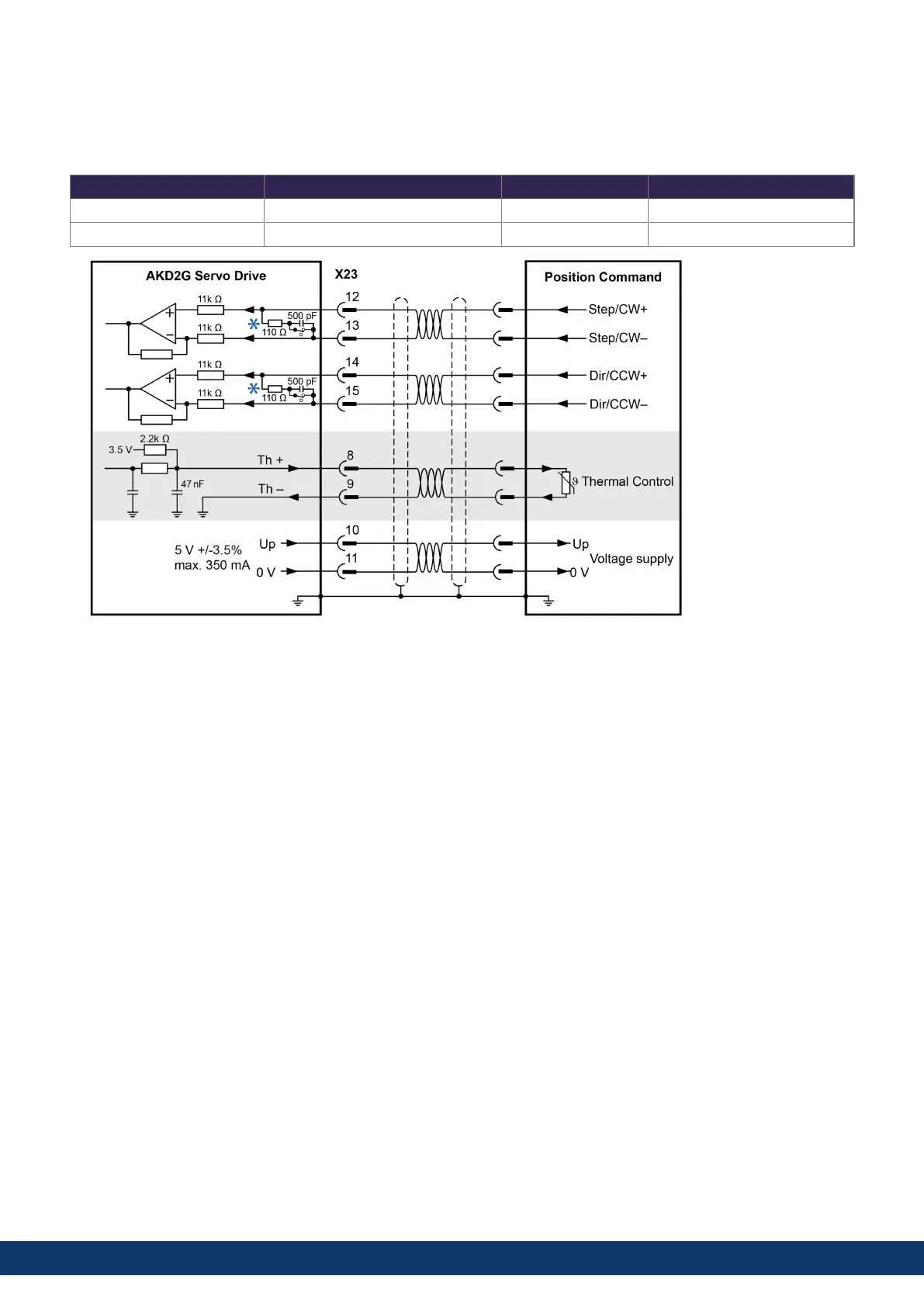

8.10.10.14 X23 Step / Direction and CW / CCW Feedback

These feedback options are intended to be used by controllers to provide an Electronic Gearing source signal.

If cable lengths of more than 25m are planned, please consult customer support.

Type FBx.INDENTIFIED Up Frequency Limit

Step / Direcction 13 5.1V ± 3.5% 1 MHz

CW / CCW 14 5.1V ± 3.5%

DC terminated by default - DC switch closed.

■Optional

124 Kollmorgen | kdn.kollmorgen.com | June, 2023
