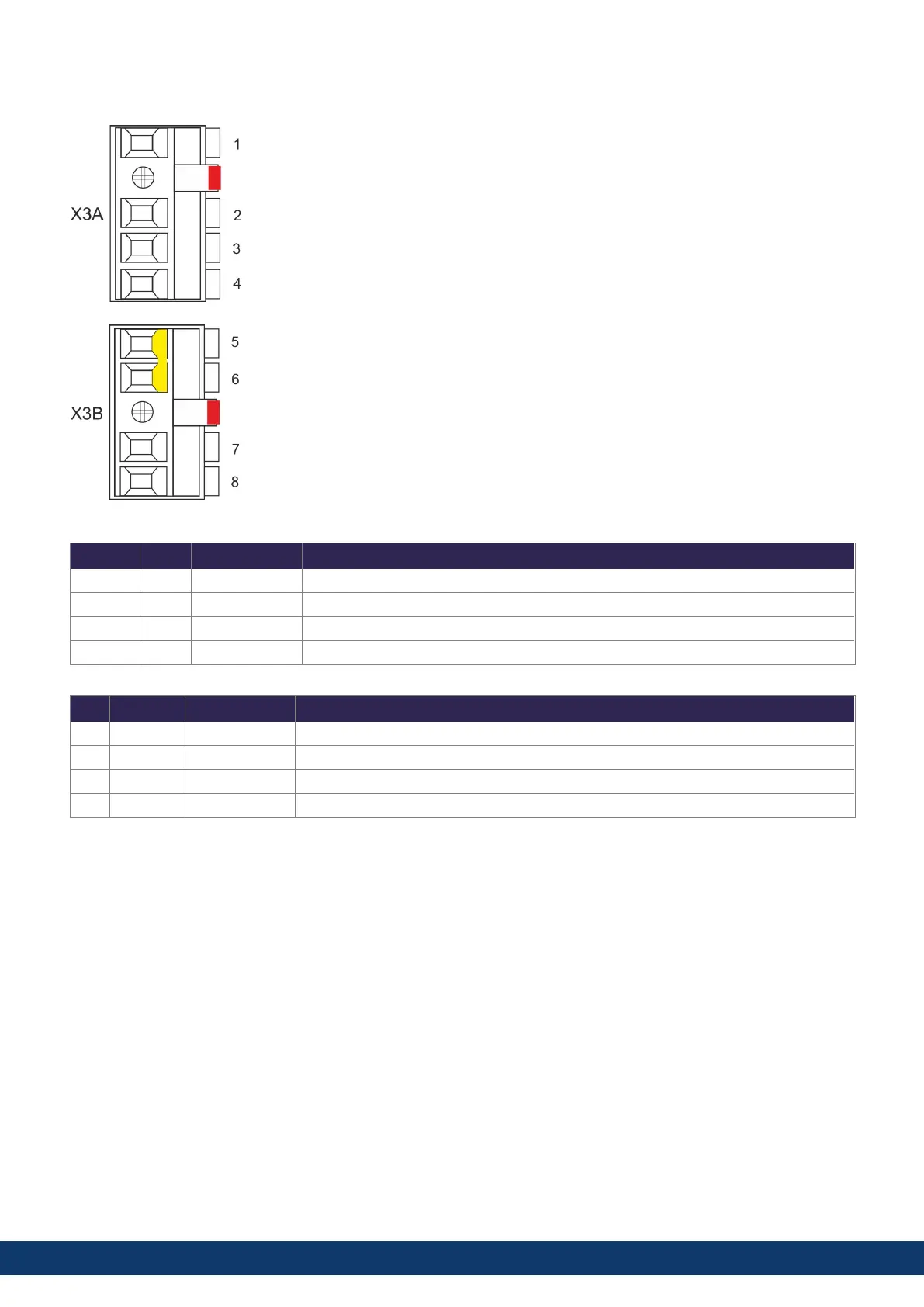

8.5.5.3 X3A/X3B: Mains, regen resistor, DC-Bus
l
2x 4 pin, pitch 10.16 mm
l
Screw terminals, tightening torque 2 Nm (18 in-lbs)
l
Mains supply, external regen resistor, DC-Bus
l
X3A/5 to X3B/6 must be shorted to use the built-in regen resistor. Remove the
jumper to connect an external regen resistor.
l
Wiring example:
l
Power supply (➜ # 80)
l
DC Bus link (➜ # 92)
l
External regen resistor (➜ # 95)
X3A
Pin
Label Signal
Description
1 PE PE Protective earth
2 R L1 3~ mains supply L1, 1~ supply L, DC supply +
3 S L2 3~ mains supply L2
4 T L3 3~ mains supply L3, 1~ supply N, DC supply -
X3B
Pin
Label Signal
Description
5 Ri RBint internal regen resistor
6 RE -RB external regen resistor -
7 +DC +DC (+RBext) DC Bus link+ and/or external regen resistor +
8 -DC -DC DC Bus link -
