8.10.12.3 X41 BiSS (Mode B) Analog Feedback

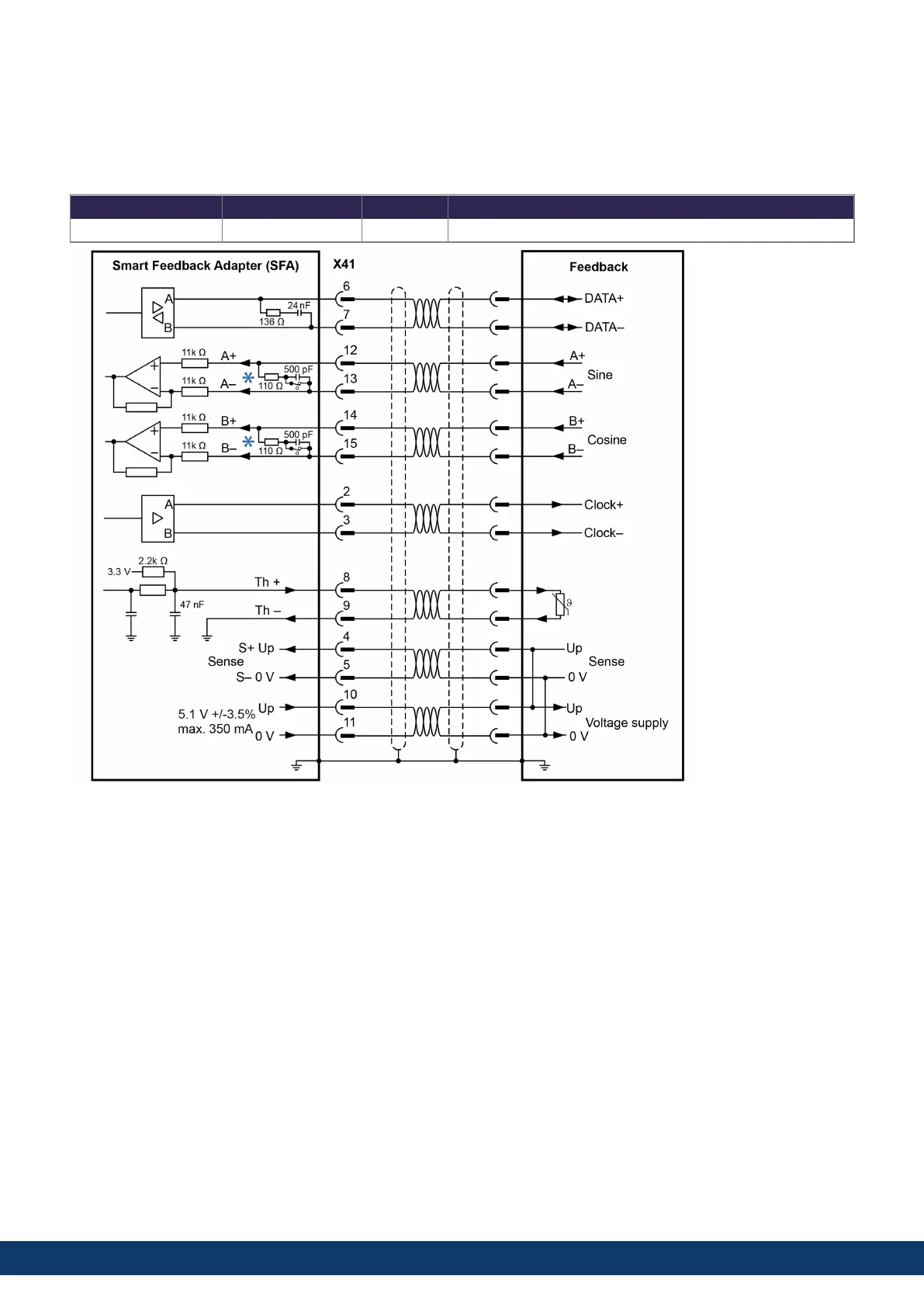

The diagram below shows the wiring of a single-turn or multi-turn encoder with BiSS Mode B interface as a feedback
system. The thermal control in the motor is connected via the encoder cable and evaluated in the drive.
If cable lengths of more than 50m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
BiSS (Mode B) Analog 132 5.1V ± 3.5% 1 MHz, 250 kHz for encoders that require termination resistors
*
DC terminated by default - DC switch closed.
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 129
