Kollmorgen AKD 2G-S Series User Manual

AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

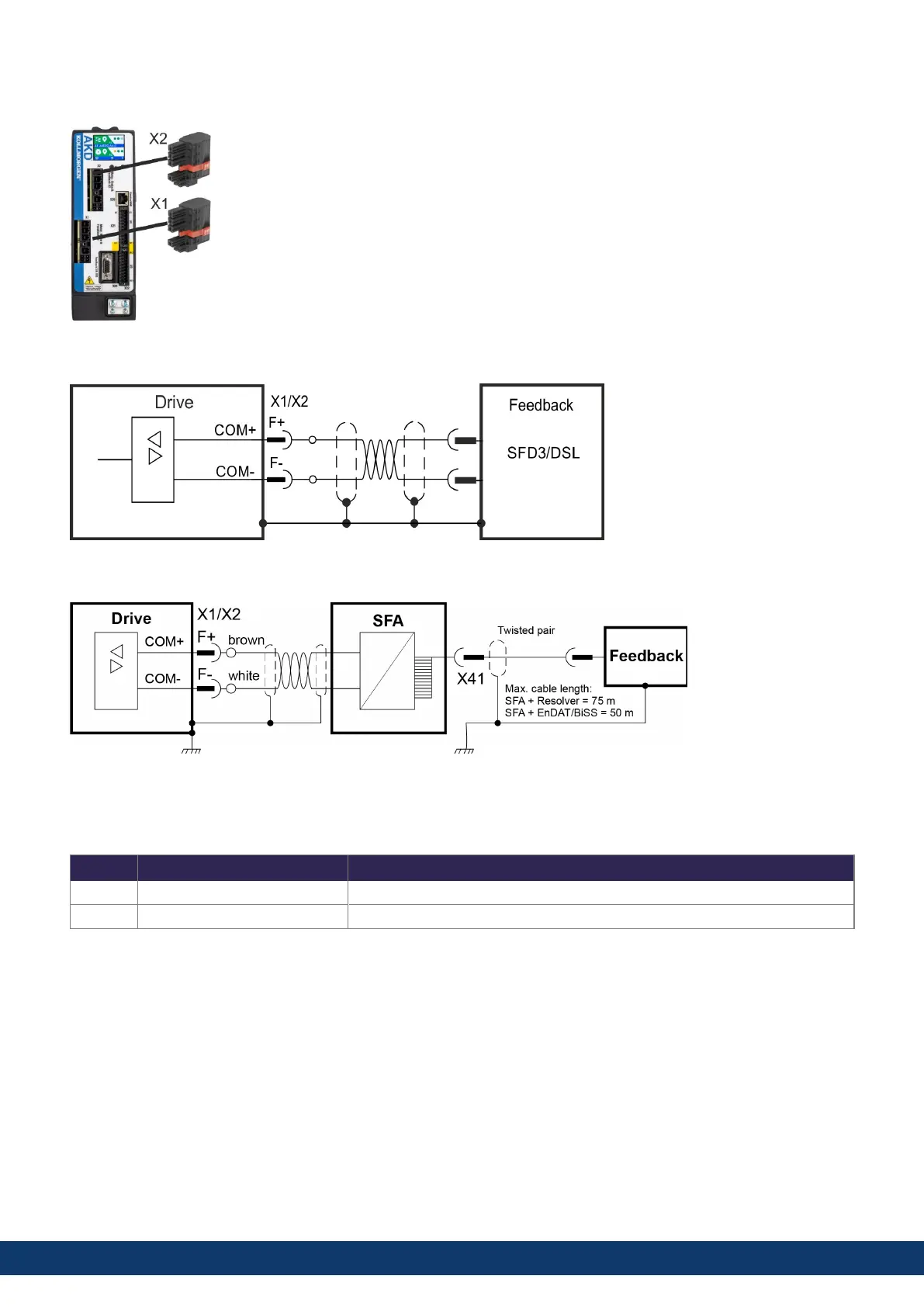

8.10.5 Feedback Connectors X1, X2
l
4 pin, pitch 7.62 mm plus 2x2 pin pitch 3.81 mm
l
Input for commutation feedback: SFD3, DSL, SFA
Wiring example SFD3 or HIPERFACE DSL
Wiring example conventional Feedback types with SFA
Electrical data
l
Rated voltage 11 V.
l
Rated current is 350 mA simultaneously for X1 and X2.
Pin Signal Description
F+ COM+ SFD3 +, HIPERFACE DSL +, SFA +
F- COM- SFD3 -, HIPERFACE DSL -, SFA -
106 Kollmorgen | kdn.kollmorgen.com | June, 2023
