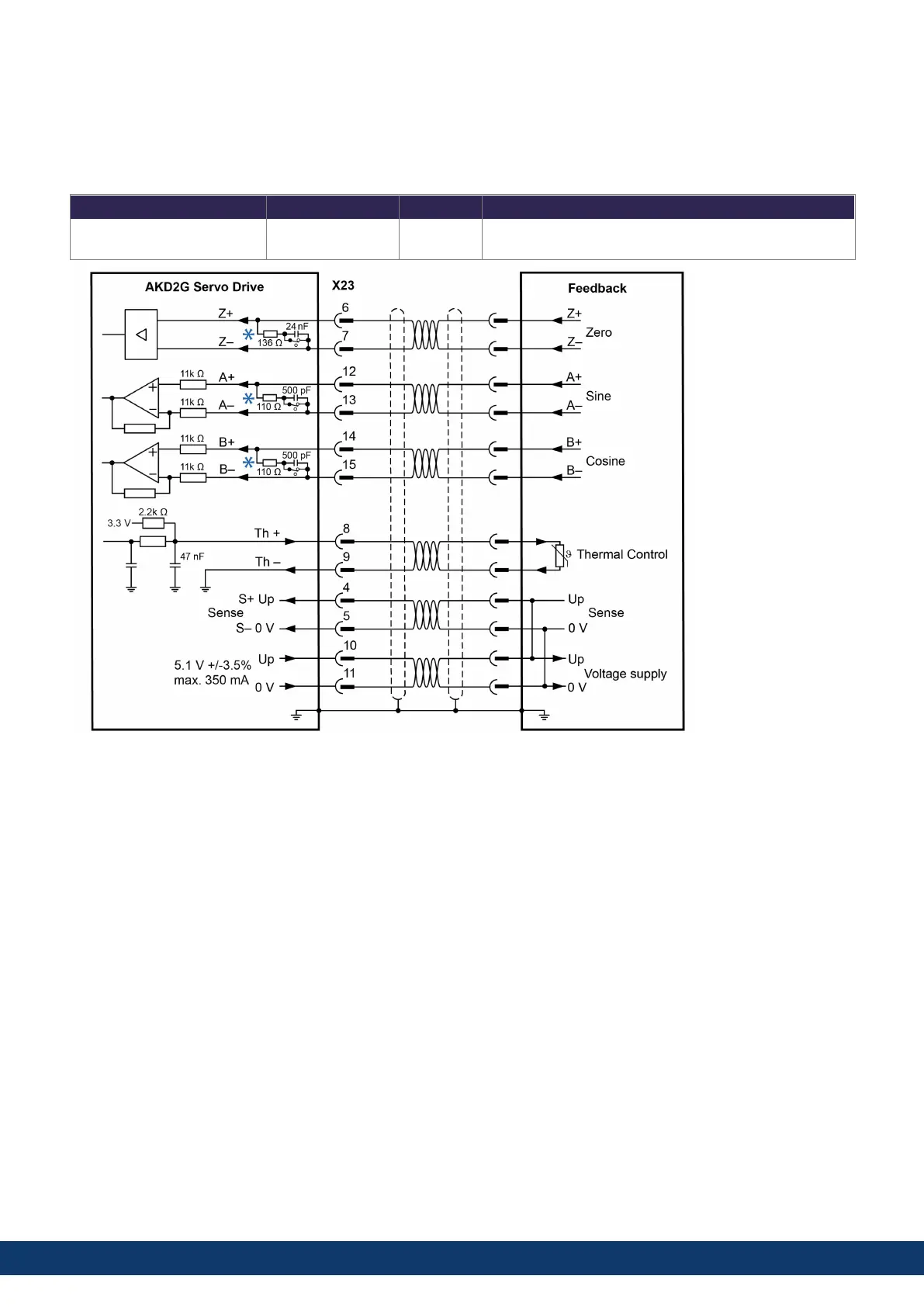

8.10.10.8 X23 Sine Encoder Feedback
This feedback device does not deliver absolute information for commutation and works with wake&shake
commutation (WorkBench Online Help). All signals are connected to X23 / X41 and evaluated there.
If cable lengths of more than 25m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
SinCos 1 V p-p (Wake &
Shake)
21
5.1 V ±
3.5%
1 MHz, 250 kHz for encoders that require termination
resistors
*
DC terminated by default - DC switch closed.
AKD2G-S Installation Manual, Safety 1
Kollmorgen | kdn.kollmorgen.com | June, 2023 119
