AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

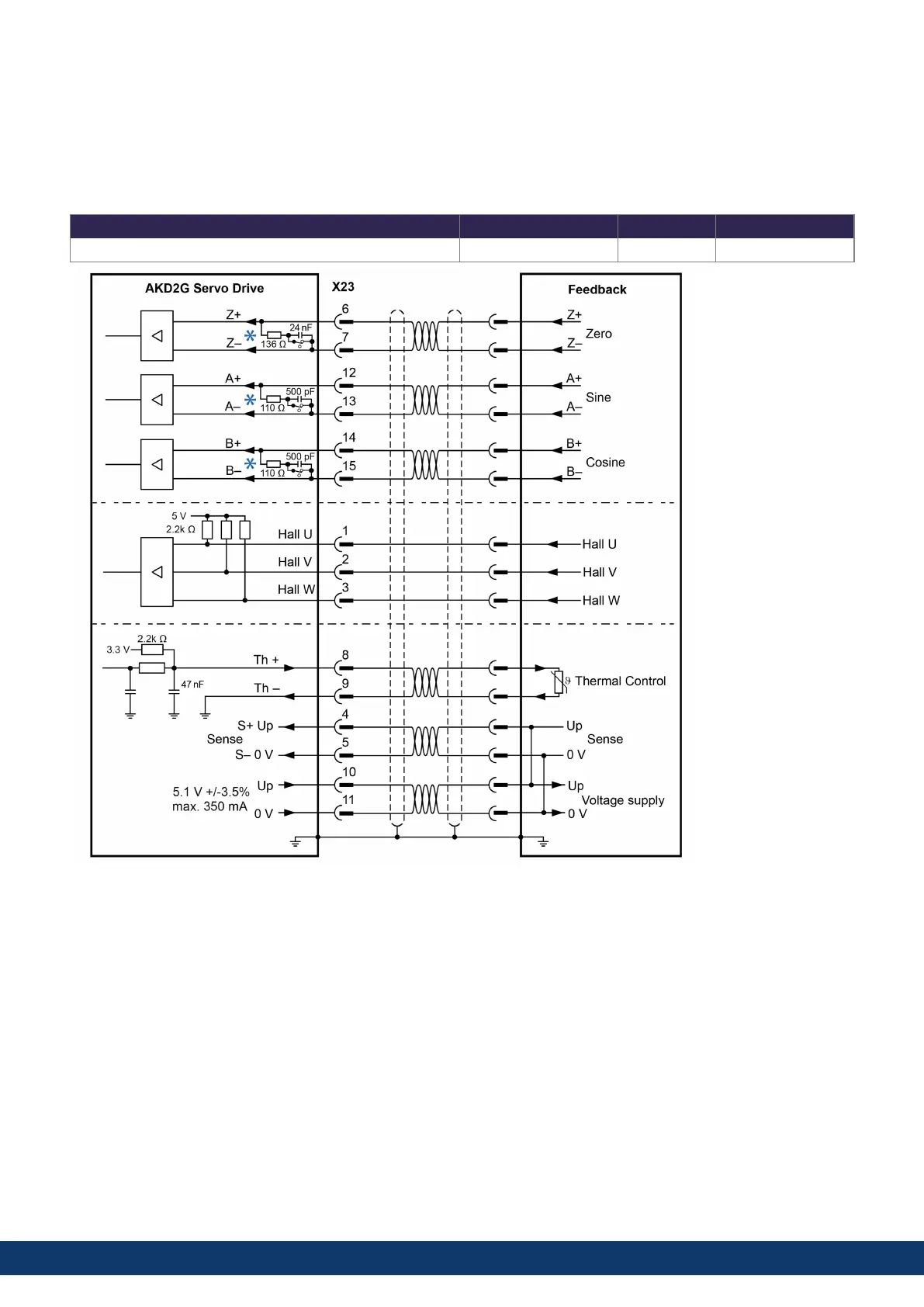

8.10.10.11 X23 Incremental Encoder with Hall Feedback
This feedback device delivers absolute information for commutation and can be used as a complete feedback
system. All signals are connected using a pre-assembled comcoder connection cable. The thermal control in the
motor is connected via the encoder cable and evaluated in the drive.
If cable lengths of more than 25m are planned, please consult customer support.
Type FBx.INDENTIFIED Up Frequency Limit
Incremental Encoder with Hall Switches (Comcoder) 10 5.1V ± 3.5% 2.5 MHz
*
DC terminated by default - DC switch closed.
122 Kollmorgen | kdn.kollmorgen.com | June, 2023
