5.1 Package Supplied
When a standard drive from the AKD2G series is delivered, the following items are included in the drive package:
l
AKD2G
l
Printed copy of AKD
®
2G Safety Notes
l
DVD with WorkBench
l
Panel safety label
l
ATTENTION: Drive is ready to operate with pre-configured STO function.
Mating connectors are not included in the package of a standard drive.
Mating connectors are included when the drive is ordered with accessories (append “-A” to the model
number).
Mating connectors listed below are never delivered with the drive. These mating connectors are usually
part of the cables:
l
Motor mating connector (X1, X2),
l
SubD (X23, X41) for Feedback,
l
RJ25 (X13, X14) for CAN Bus, and
l
RJ45 (X11, X12, X20) for Service and EtherNet Fieldbus.
Accessories sold separately
Accessories must be ordered separately if required, see regional Accessories Manual.
l
EMC filters for mains supply voltage, categories C2 or C3
l
External regen resistor
l
Mating connector kits
l
Motor mating connector
l
Hybrid cable, assembled hybrid motor cables are available for all regions
l
Motor cable, assembled motor cables are available for all regions
l
Feedback cable, assembled feedback cables are available for all regions
l
SFA (Smart Feedback Adapter)
l
EtherNet service cable
5.2 Nameplate

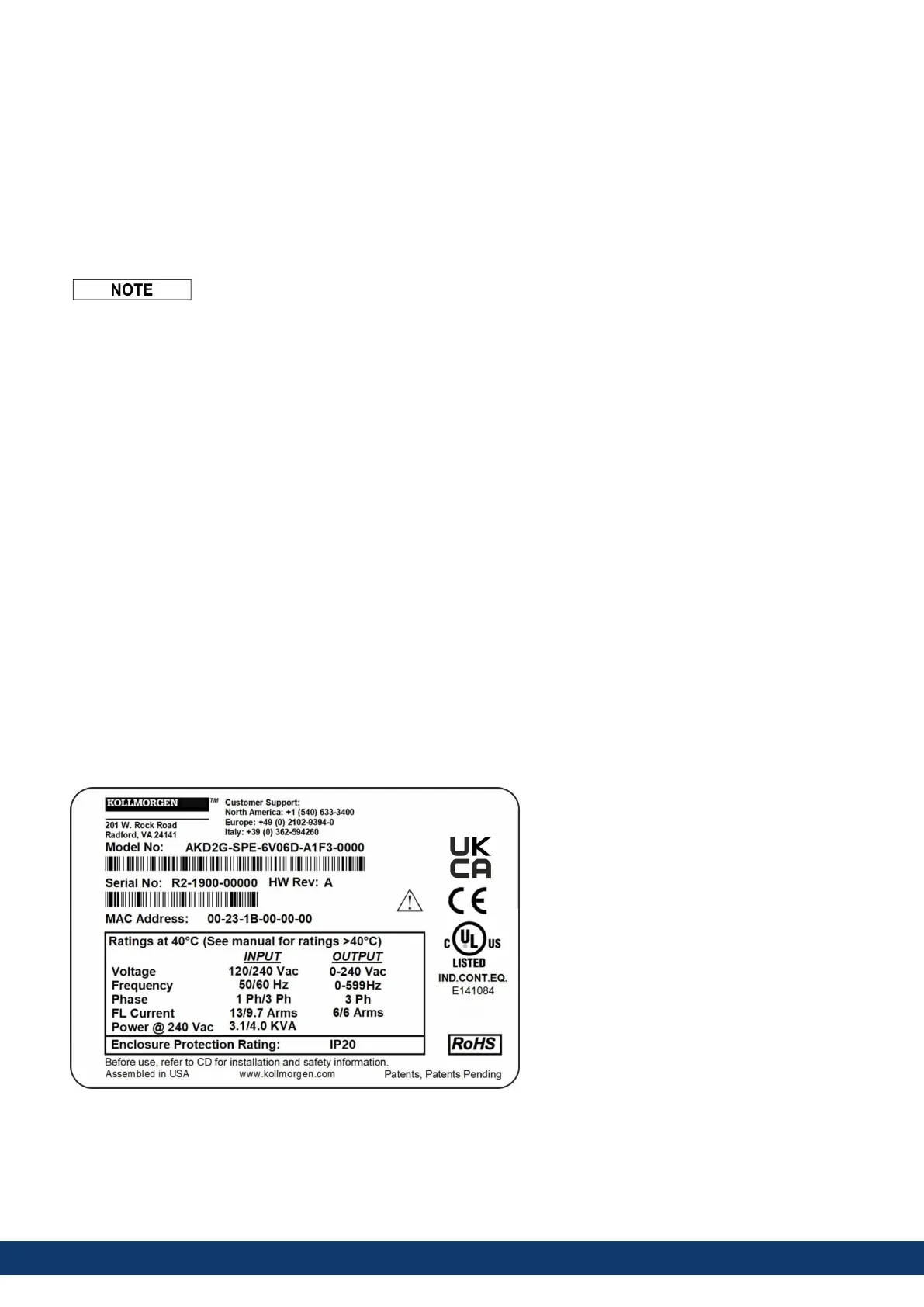

A nameplate is attached to the side of the drive. The picture below is similar to the nameplate on the device.
