AKD2G-S Installation Manual, Safety 1 | 7 Mechanical Installation

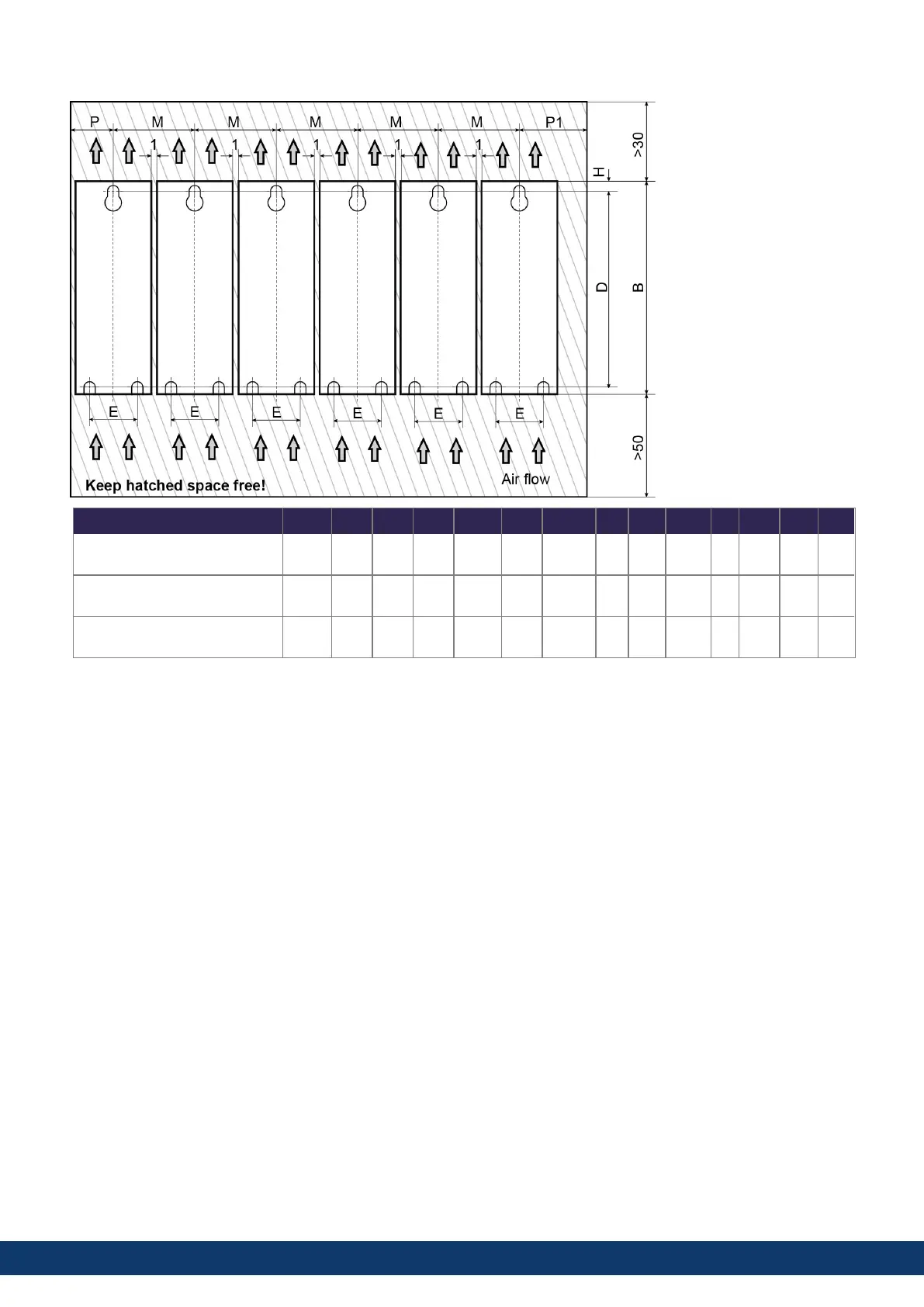

Model Unit A A1 B B1 C D E F G H M P P1
AKD2G-Sxx-6V
(3 to 12 A)
mm 221 232 235 303 76 221.5 36 5.8 11.5 7 77 40 40
AKD2G-Sxx-7V
(3 to 12 A)
mm 221 232 272 340 75 259 36 5.8 11.5 6 76 40 40
AKD2G-Sxx-7V
(24 A)
mm 274 291 335 450* 100 319 70 5.8 11.5 6 105 55* 55
*X3A and X3B with bracket option: P ≥ 125 mm, B1 ≥ 520 mm.
50 Kollmorgen | kdn.kollmorgen.com | June, 2023
