DC supply (all AKD2G-Sxx-)
l
Activate DC supply (VBUS.DCOPERATION = 1) and set VBUS.DCNOMINAL.
l
Any DC supply filtering for AKD2G-Sxx-6V to be provided by the user.

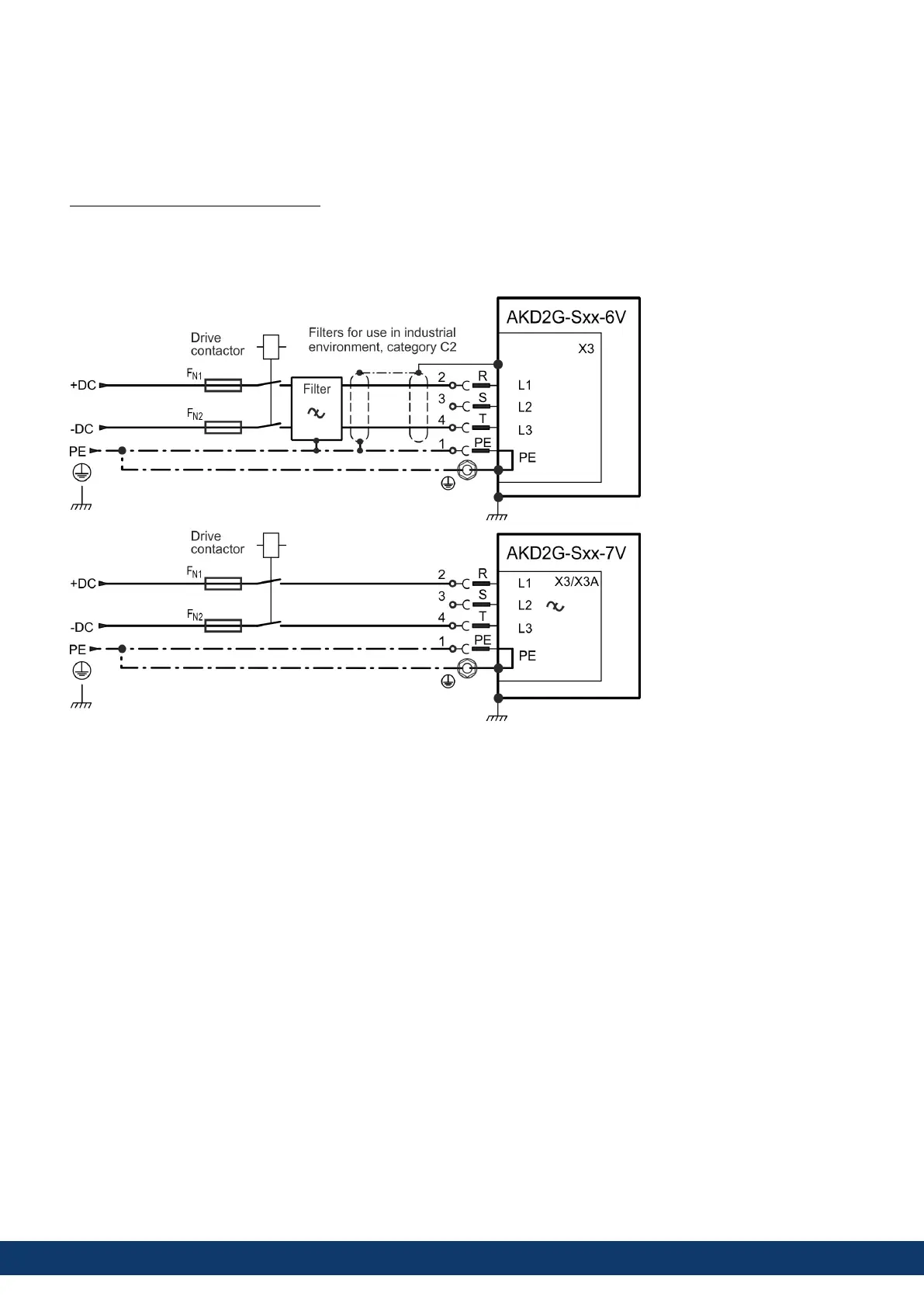

DC Supply to mains lines R/T (L1/L3)
DC power source is connected to the drive AC line inputs. This wiring provides soft start of the energy storage
capacitors inside the drive and the AC rectifier diodes prevents motor regeneration energy from returning to the dc
power source. That is, by powering the drive from the AC line input connections, the drive’s energy absorption and
energy dissipation mechanisms can work normally.
