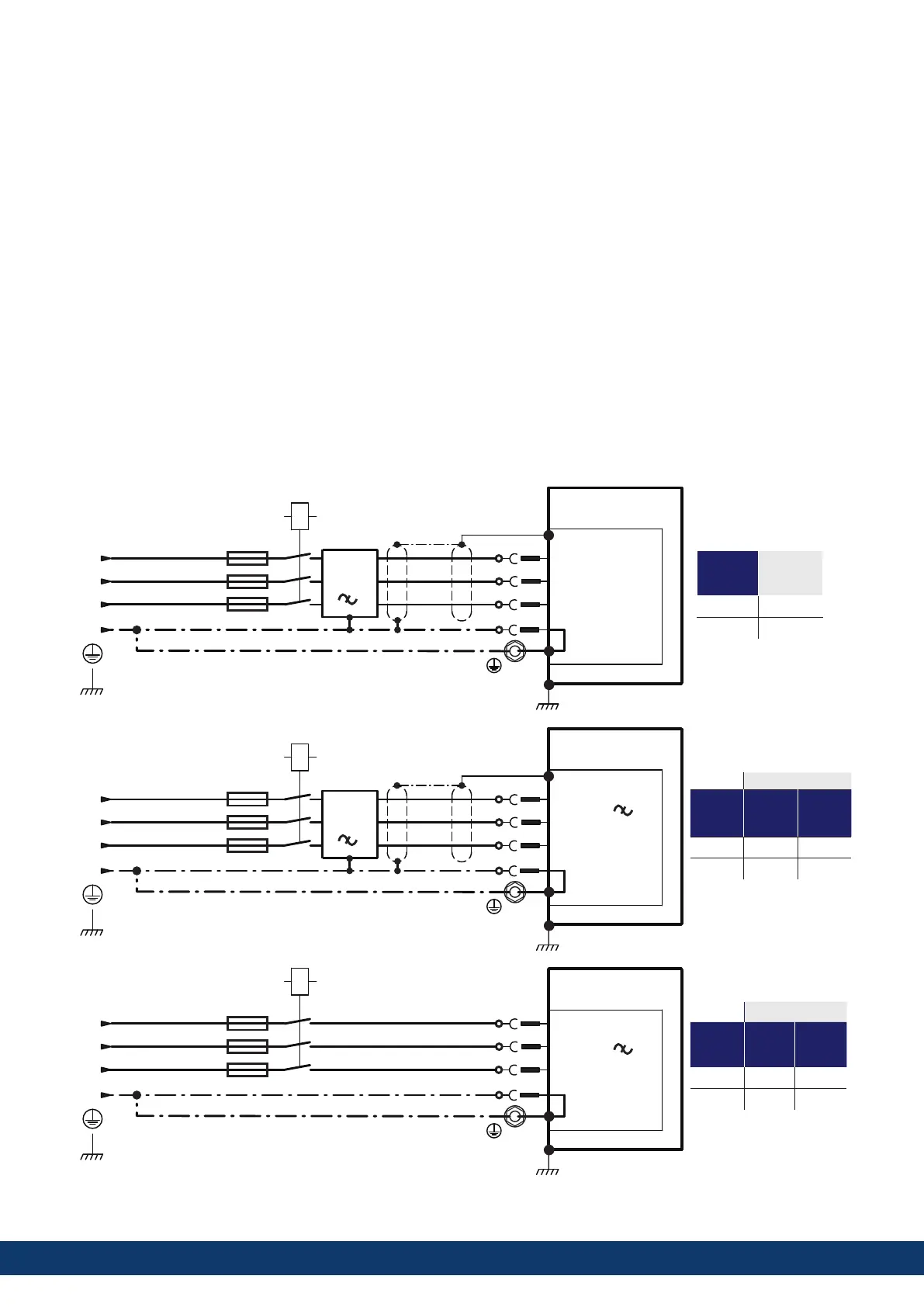

Three phases AC mains (all AKD2G-Sxx-)
l
Directly to 3-phase supply network.
l
Activate 3-phase supply (VBUS.THREEPHASE = 1).
l
Set VBUS.ACNOMINAL to desired nominal AC line voltage for lines other than nominal rated VAC.
l
For complete information refer to WorkBench online help, AKD2G-S User Manual, section Power Setting.
l
AC line filtering to be provided by the user. Refer to the Accessories Manual for more filter description. Use
shielded cable between filter and drive.
l
AKD2G-Sxx-6V:
Motor cable < 10 m: use filter FN 3288 in industrial environment, category C2.
Motor cable ≥ 10 m: use filter FN 3288 in industrial environment, category C3.
l
AKD2G-Sxx-7V up to 12 Amps:
Motor cable < 10 m: no filter, in industrial environment, category C3.
Motor cable < 10 m: use filter FN 3288 in industrial environment, category C2.
Motor cable ≥ 10 m: use filter FN 3288 in industrial environment, category C3.
l
AKD2G-Sxx-7V 24:
Motor cable < 10 m: no filter, in industrial environment, category C2.
Motor cable ≥ 10 m: no filter, in industrial environment, category C3.
Motor cable ≥ 10 m: use filter FN 3288 in industrial environment, category C2.
L3
PE
L2
L1
X3/X3A
PE
L1
L2
L3
F
F
F
N3
N2
N1
L3
PE
L2
L1
X3/X3A
AKD2G-Sxx-7V
PE
L1
L2
L3
F
F
F
N3
N2
N1
PE
S
R
T
1
3
2
4
PE
S
R
T
1
3
2
4
L3
PE
L2
L1
X3
AKD2G-Sxx-6V
PE
L1
L2
L3
F
F
F
N3
N2
N1
PE
S
R
T
1
3
2
4
AKD2G-Sxx-7V
Filter
contactor
Drive
contactor
Drive
Filter
contactor
Drive
Length Motor Cable < 10m: cat. C2
Length Motor Cable ≥ 10m: cat. C3
Length Motor Cable < 10 m, cat. C3
Length Motor Cable < 10m: cat. C2
Length Motor Cable ≥ 10m: cat. C2
Motor
Cable
Length
EMI
Category
< 10 m C2
³ 10 m C3
EMI Category
Motor
Cable
Length
AKD2G
3-12 A
AKD2G
24 A
< 10 m C3 C2
³ 10 m - C3
EMI Category
Motor
Cable
Length
AKD2G
3-12 A
AKD2G
24 A
< 10 m C3 -
³ 10 m C2 C2
