AKD2G-S Installation Manual, Safety 1 | 6 Technical description and data

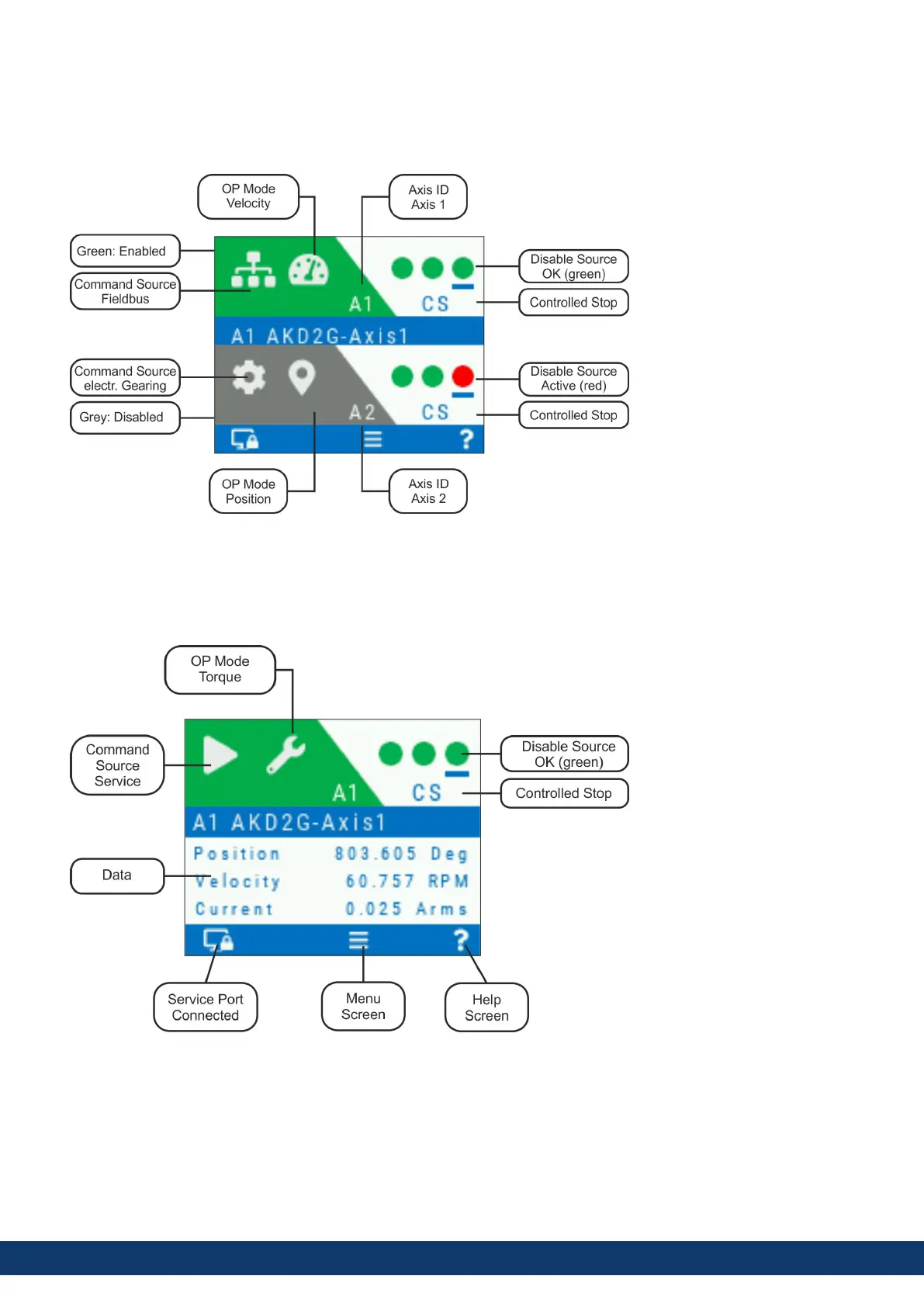

Dual axis LCD display
For dual-axis drives, the top section shows axis 1 information, the bottom section those for axis 2.
Single axis LCD display
For single axis drives, the top section shows axis 1 information while the section between the center and bottom bars
is a data area where some important actual values of the axis are visible: position, velocity, current.
44 Kollmorgen | kdn.kollmorgen.com | June, 2023
