AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

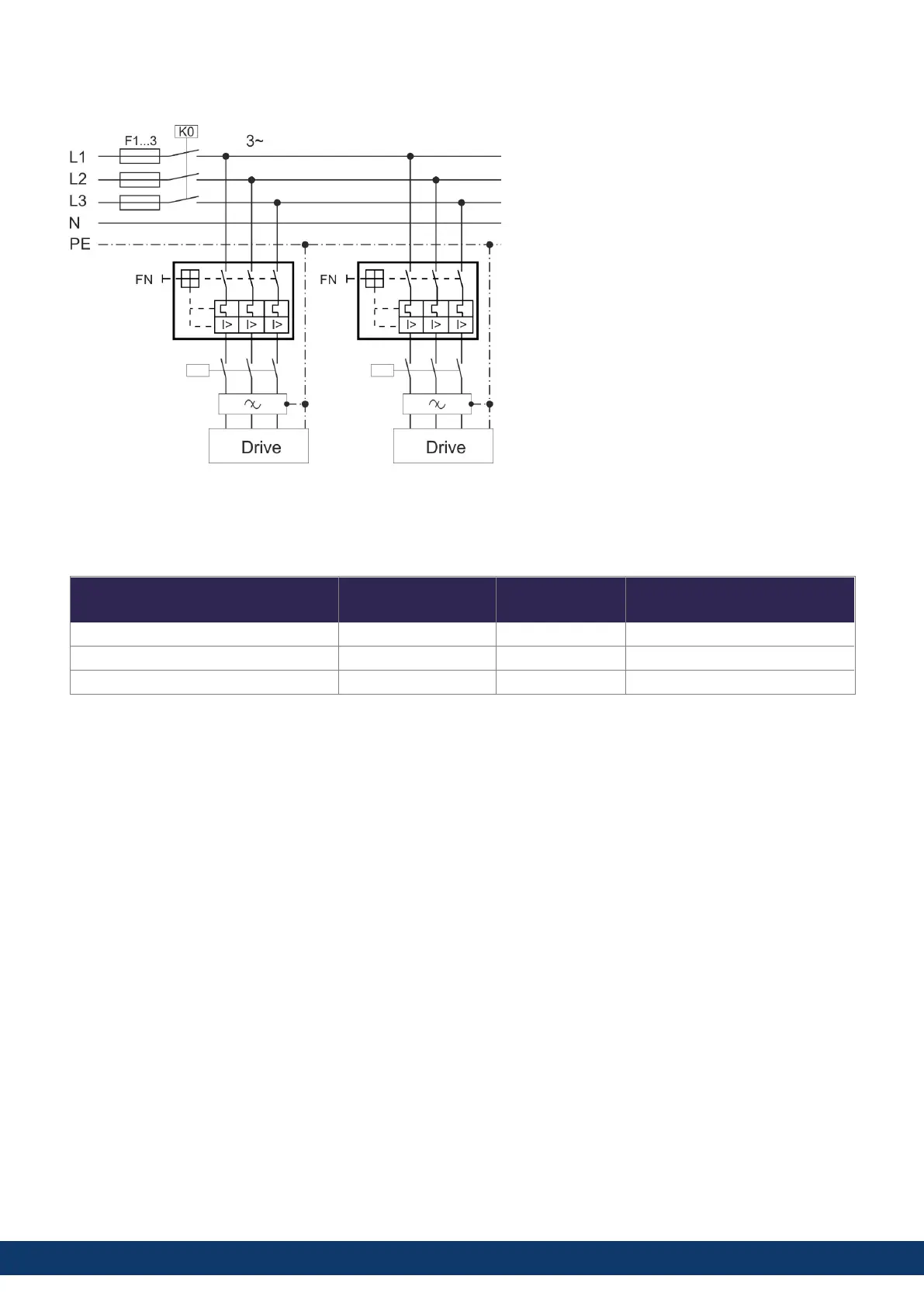

AC supply, single drives, automatic circuit breakers
l
F1, F2, F3: depends on the sum of application's required input currents and cabinet requirements.
l
Filters for special EMC requirements only (➜ # 198).
l
FN maximum rating: 30 A
l
FN recommended rating and regional approvals see table below:
Drive Model Ampere
rating
SCCR
rating
Example ABB
AKD2G-Sxx-6V 15 A 10 kA SU203M-K15
AKD2G-Sxx-7V 15 A 10 kA SU203M-K15
AKD2G-Sxx-7V24x 30 A 10 kA SU203M-K30
88 Kollmorgen | kdn.kollmorgen.com | June, 2023
