AKD2G-S Installation Manual, Safety 1 | 8 Electrical Installation

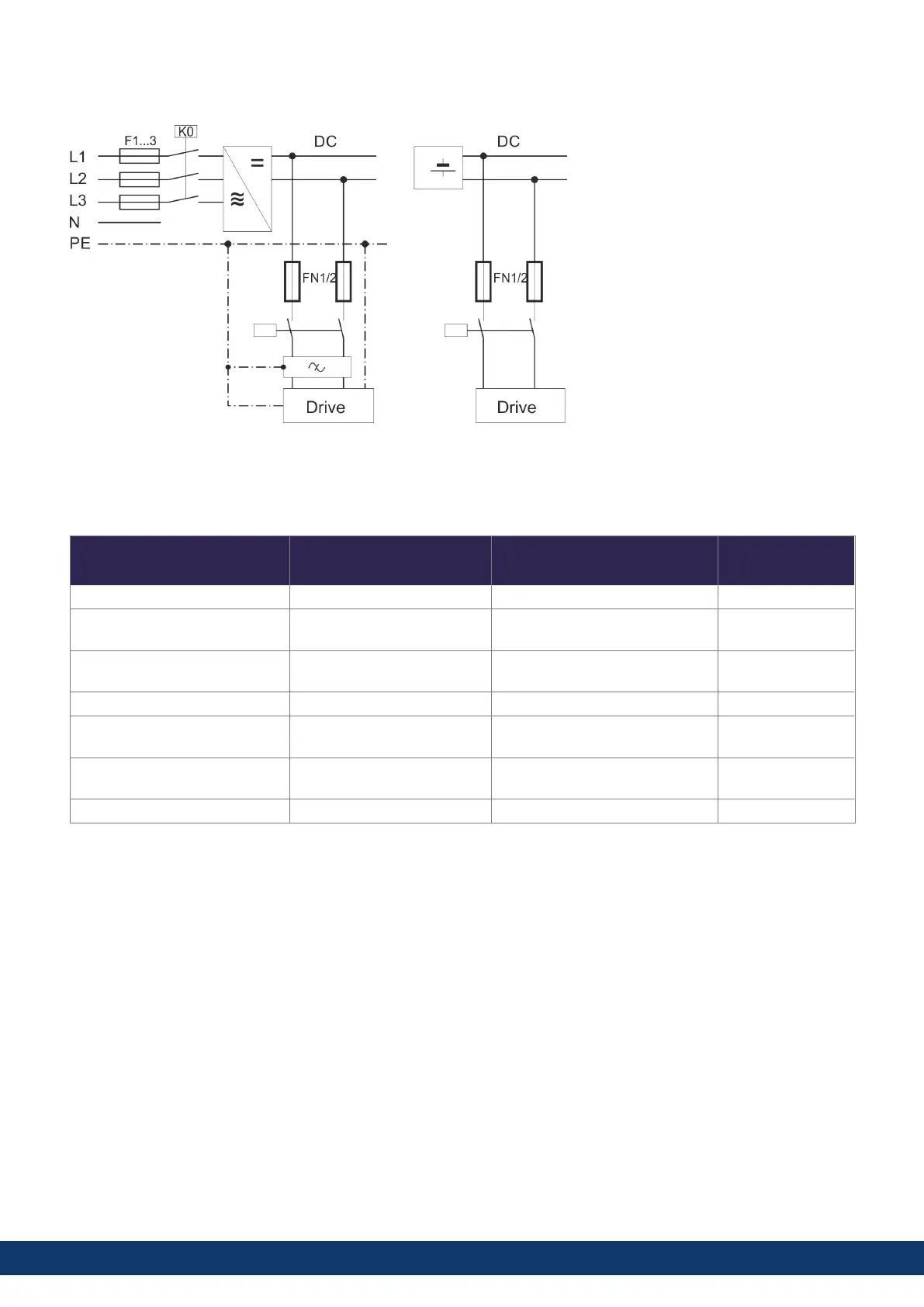

DC supply, single drives, line fusing
l
F1, F2, F3: depends on sum of application's required input currents and cabinet requirements.
l
Filters for special EMC requirements only (➜ # 198).
l
FN1, FN2 maximum rating 30 A
l
FN1, FN2 recommended rating see table below:
Drive Model Ampere rating Example
Eaton Bussmann
Example
Mersen
AKD2G-Sxx-6V03S 10 A (Time-Delay) DFJ-10 HP6M10
AKD2G-Sxx-6V06S
AKD2G-Sxx-6V03D
15 A (Time-Delay) DFJ-15 HP6M15
AKD2G-Sxx-6V12S
AKD2G-Sxx-6V06D
15 A (Time-Delay) DFJ-15 HP6M15
AKD2G-Sxx-7V03S 10 A (Time-Delay) FWP-10B HP10M10
AKD2G-Sxx-7V06S
AKD2G-Sxx-7V03D
10 A (Time-Delay) FWP-10B HP10M10
AKD2G-Sxx-7V12S
AKD2G-Sxx-7V06D
15 A (Time-Delay) FWP-15B HP10M15
AKD2G-Sxx-7V24S 25 A (Time-Delay) FWP-25B HP10M25
90 Kollmorgen | kdn.kollmorgen.com | June, 2023
