Kyocera FS-C8600DN Service Manual

2MN/2N1-1
1-3-99

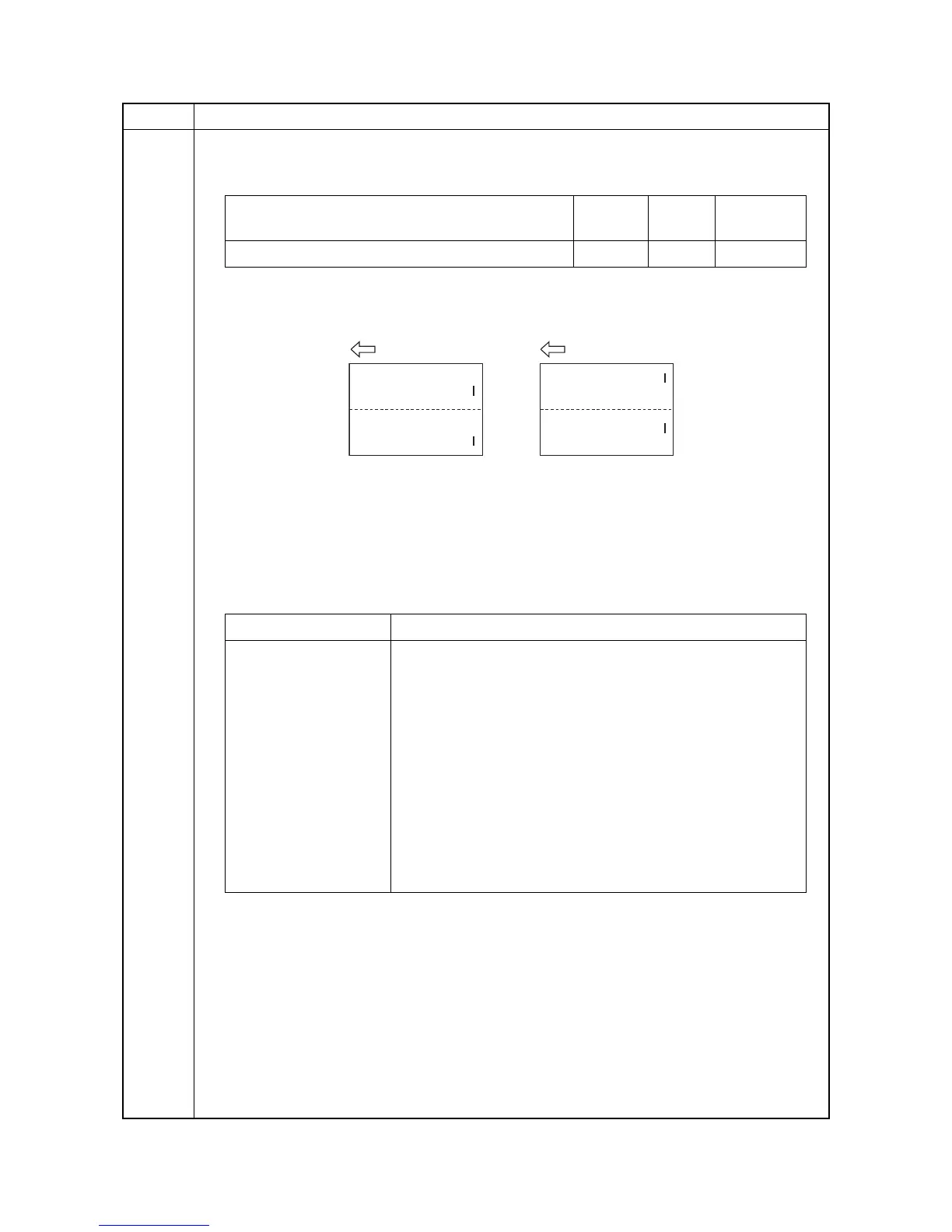

U246 Setting: [Staple HP]
1. Select [Staple HP].
2. Change the setting value using the numeric keys.
When staple positions are off toward the front side of the machine (sample 1), increase the
setting value. When staple positions are off toward the rear side of the machine (sample 2),
decrease the setting value.
Figure 1-3-10
3. Press the OK key. The value is set.
Method: [Booklet]
1. Select the item to set.
Item No. Description
Description Setting
range
Initial
setting
Change in
value per step
Adjustment of front and back stapling home position -15 to 15 0 0.19 mm
Sample 2
Sample 1
Display Description
WidthUp HP 7.Adjustment of upper side registration home position
WidthDown HP 7.Adjustment of lower side registration home position
Staple Pos1 8.Adjustment of booklet stapling position for A4/Letter size
Staple Pos2 8.Adjustment of booklet stapling position for B4/Legal size
Staple Pos3 8.Adjustment of booklet stapling position for A3/Ledger/8K
size
Booklet Pos1 9.Adjustment of center folding position for A4/Letter size
Booklet Pos2 9.Adjustment of center folding position for B4/Legal size
Booklet Pos3 9.Adjustment of center folding position for A3/Ledger/8K size
Three Fold 10.Adjustment of tri-folding position

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
