12. Pull the LSU out a little.
13. Remove the following connector from
the LSU.
30 ppm model/35 ppm model:
FFC connector with a lock: 1pcs
Connector: 2pcs
45 ppm model/55 ppm model:
FFC connector with a lock: 2pcs
Connector: 2pcs
*: When remove the FFC from the FFC
connector with a lock, removing it after
release the lock by lifting the lock lever
up.

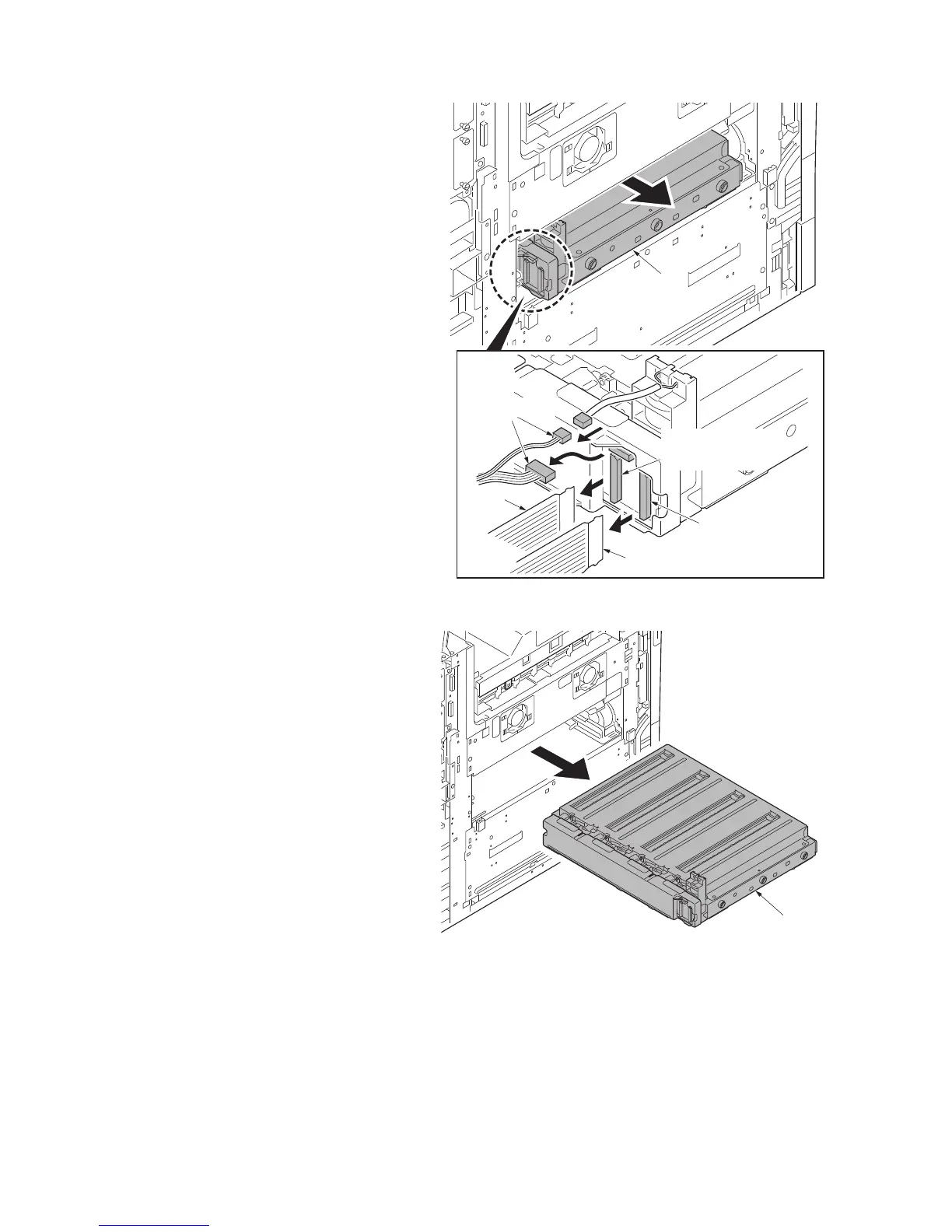

Figure 1-5-29
14. Pull the LSU out from the body of the
machine.
Figure 1-5-30
LSU
FFC
FFC
FFC connector
with a lock
Connectors
FFC connector
with a lock
LSU
