Kyocera FS-C8600DN Service Manual

2MN/2N1
1-5-23
23. Wrap an antistatic discharging belt
around your wrist to prevent damage to
the LSU.
*: Do not touch terminals and FFC con-
tacts in the APC PWB of the LSU.
24. Remove four LSUs, following the pre-
cautions and instructions below.
(1) Lift the far end of the LSU.
(2) Unhook the protrusions at the front
of the LSU.
*: Be sure to handle the front and rear
handholds when handling the LSU.
*: Do not get the LSU in direct contact
with the holding frame subsequently
applying shocks to the polygon motor
inside.
25. Check or replace the LSU and refit all
the removed parts.
*: When reconnecting FFCs, be sure to
insert the FFC all the way in with the
FFC connector.This is to avoid a
lengthy servicing due to a possible error
which could cause re-disassembly and
-assembly.
26. When replacing the new LSU, proceed
as follows:
1)Performs maintenance mode U469
(Color registration correction) (see
page 1-3-126).
2)Performs maintenance mode U119
(Setting the drum) (see page 1-3-65).
3)Performs maintenance mode U464
(Calibration) (see page 1-3-118).

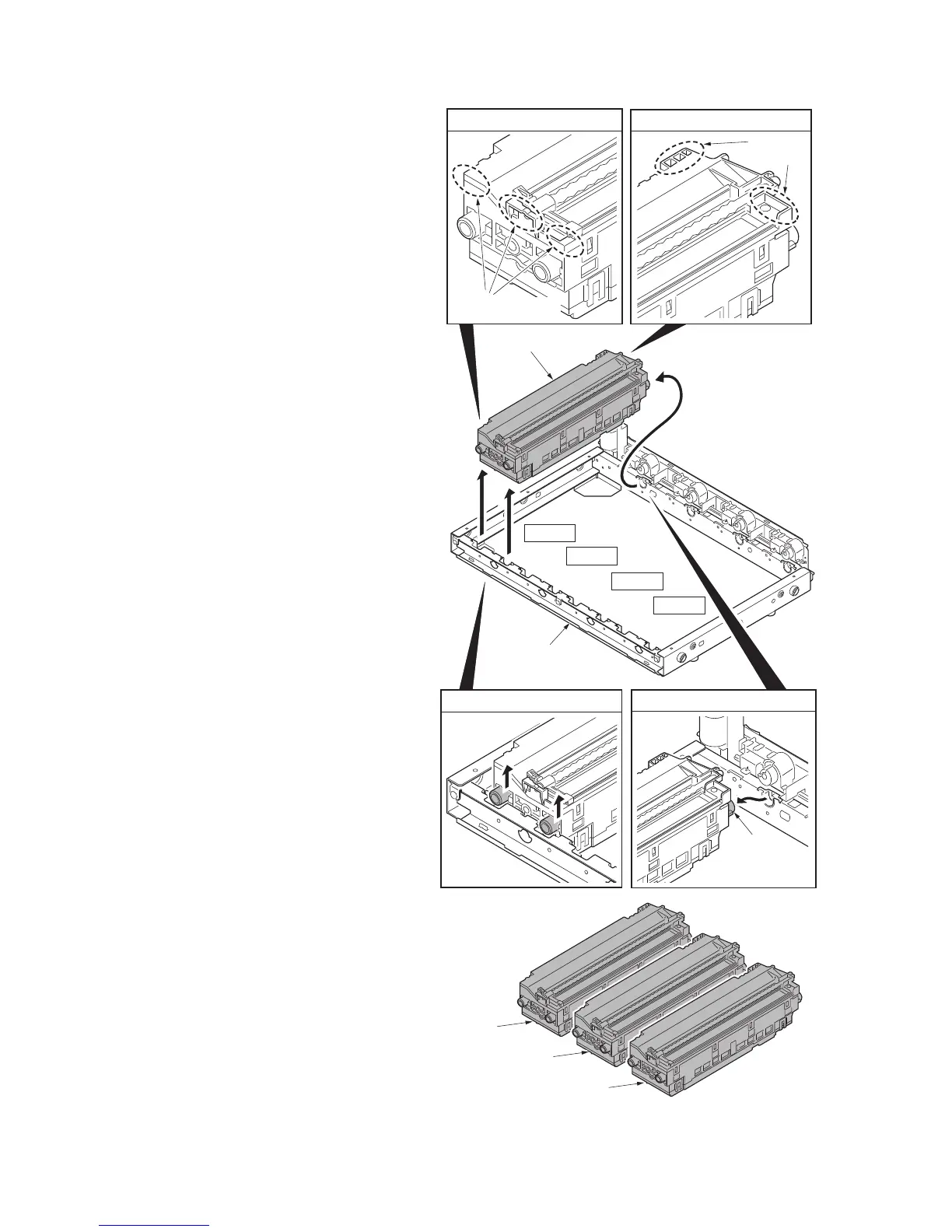

Figure 1-5-35
LSU(Y)
Bos
LSU (rear side) LSU (front side)
LSU (rear side) LSU (front side)
LSU support frame
Support portions
Support
portions
LSU(Y)
LSU(C)
LSU(C)
LSU(M)
LSU(M)
LSU(K)
LSU(K)
(1) (2)

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
