2MN/2N1
1-5-47

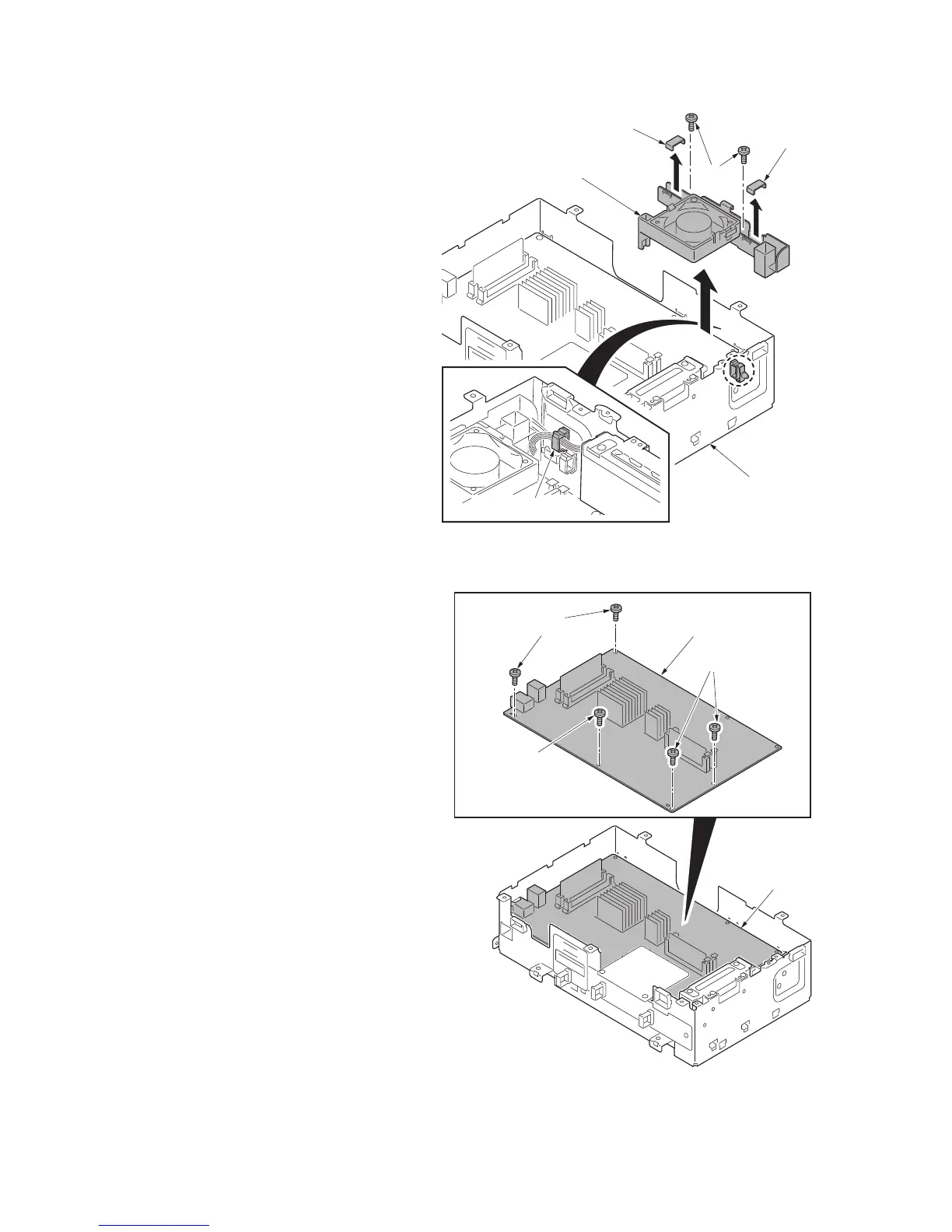

9. Release the wire saddle.
10. Remove two wire holders.
11. Remove two screws.
12. Remove the fan motor holder.
Figure 1-5-70
13. Remove five screws from the main
PWB.
Figure 1-5-71
Wire holder
Wire holde
r
Screws
Fan mootor holder
Controller box
Wire saddle
Screws
Main PWB
Main PWB
Screw
Screws
